松下EH1575维修手册

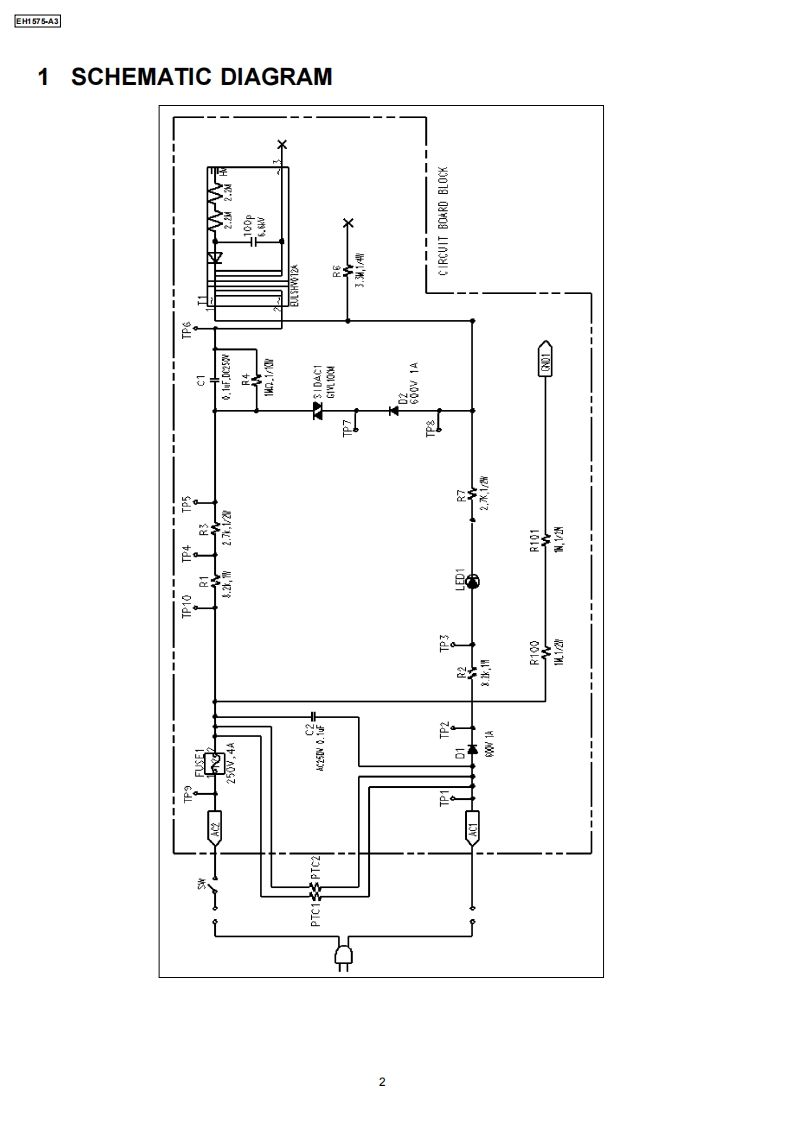

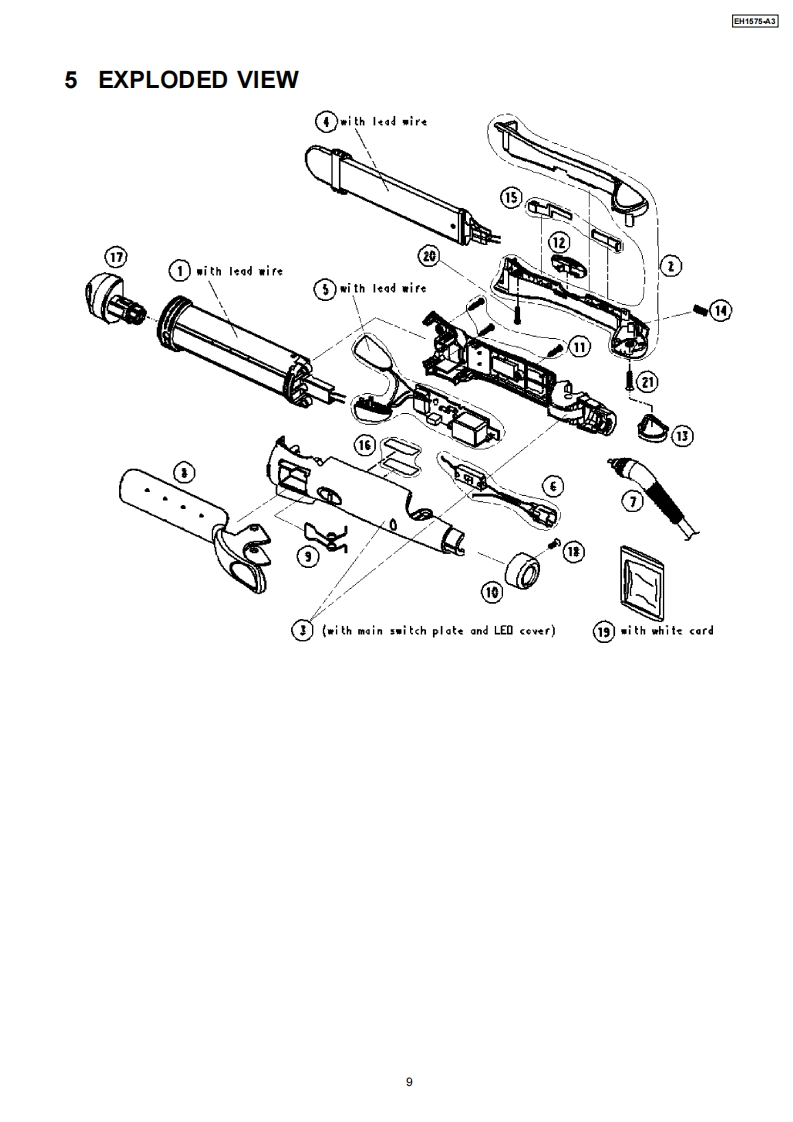

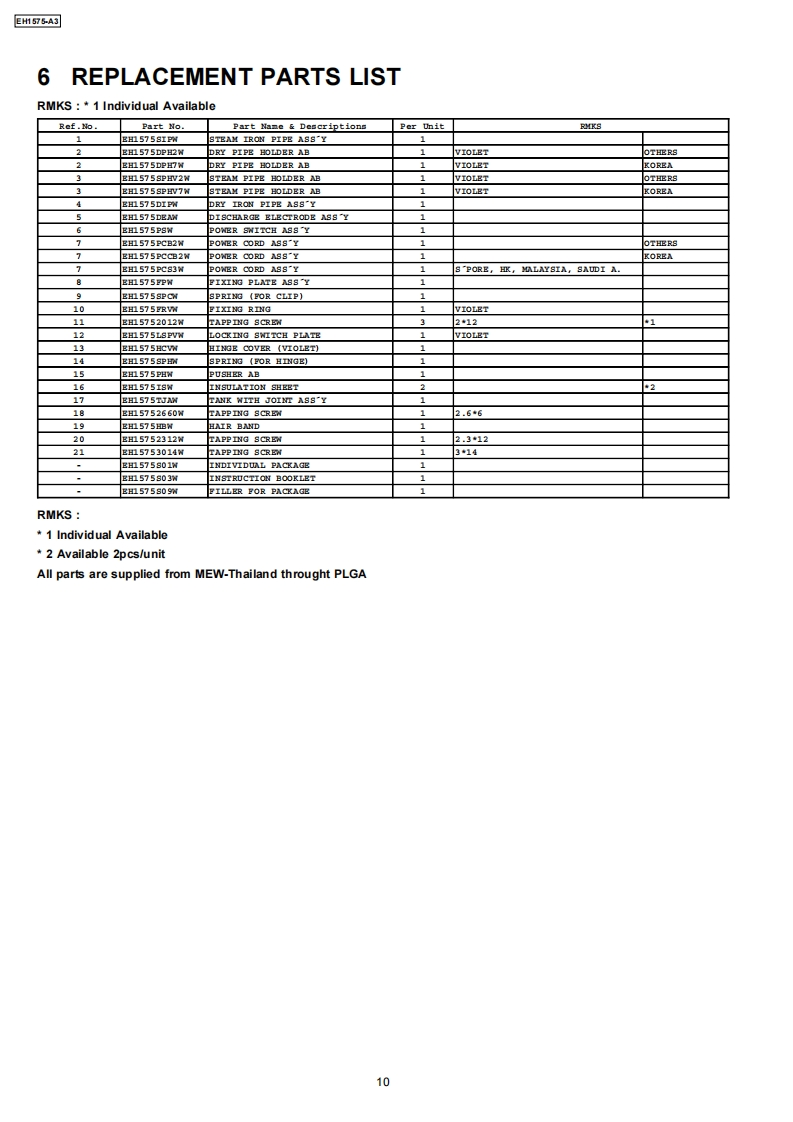

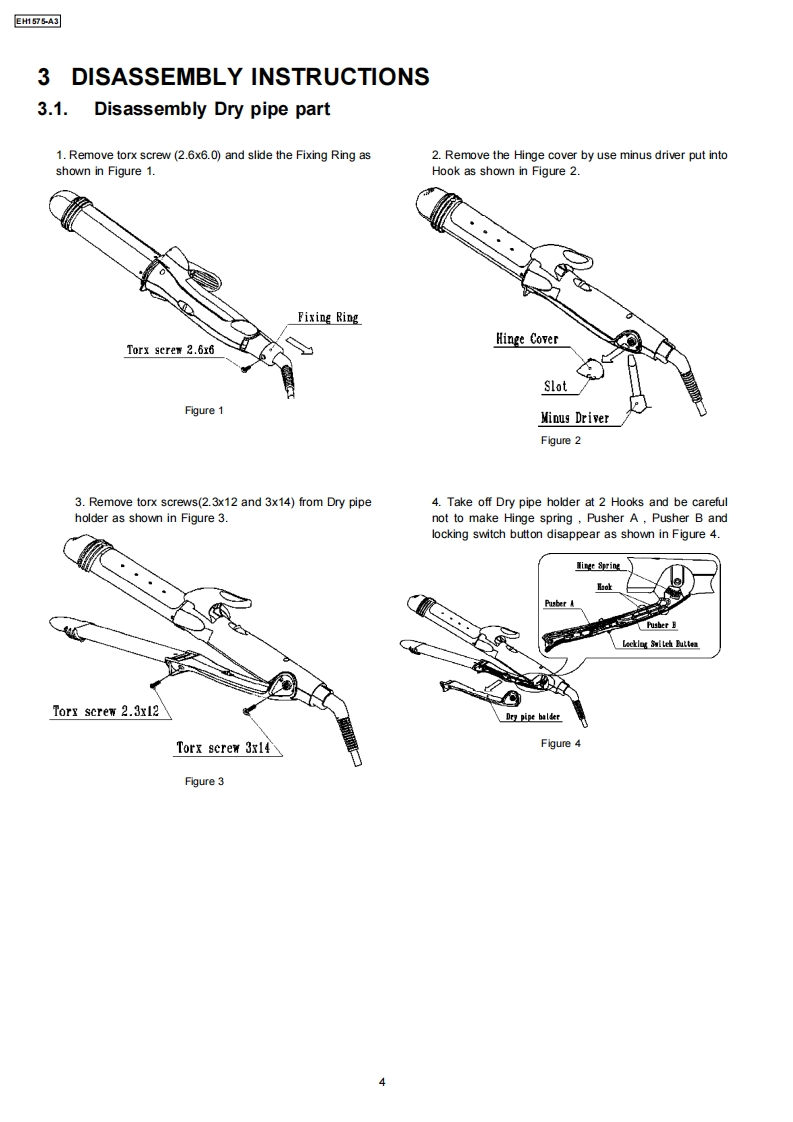

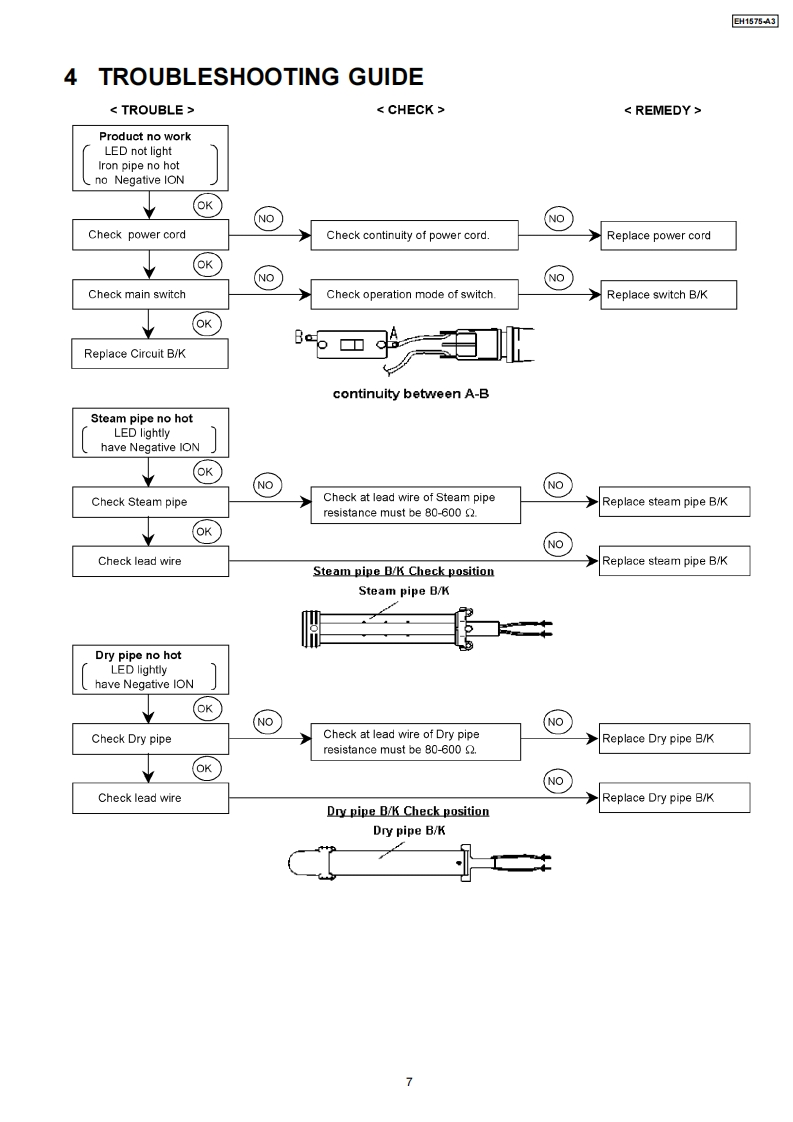

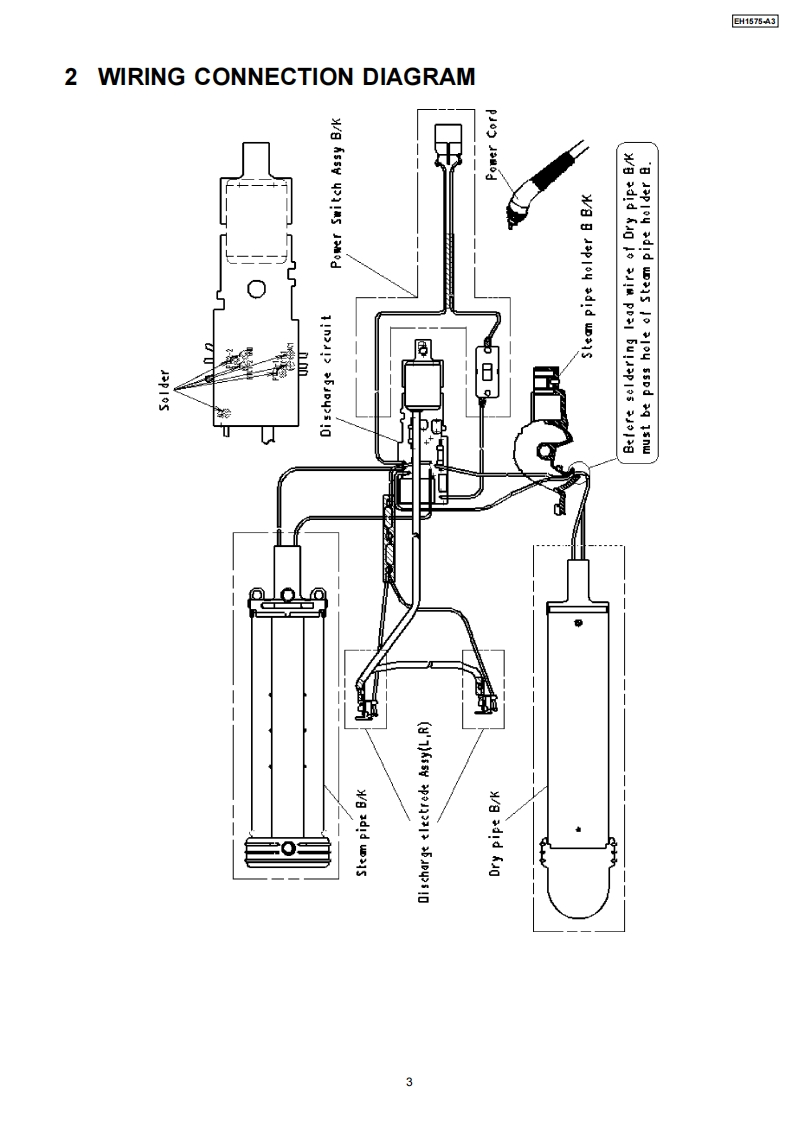

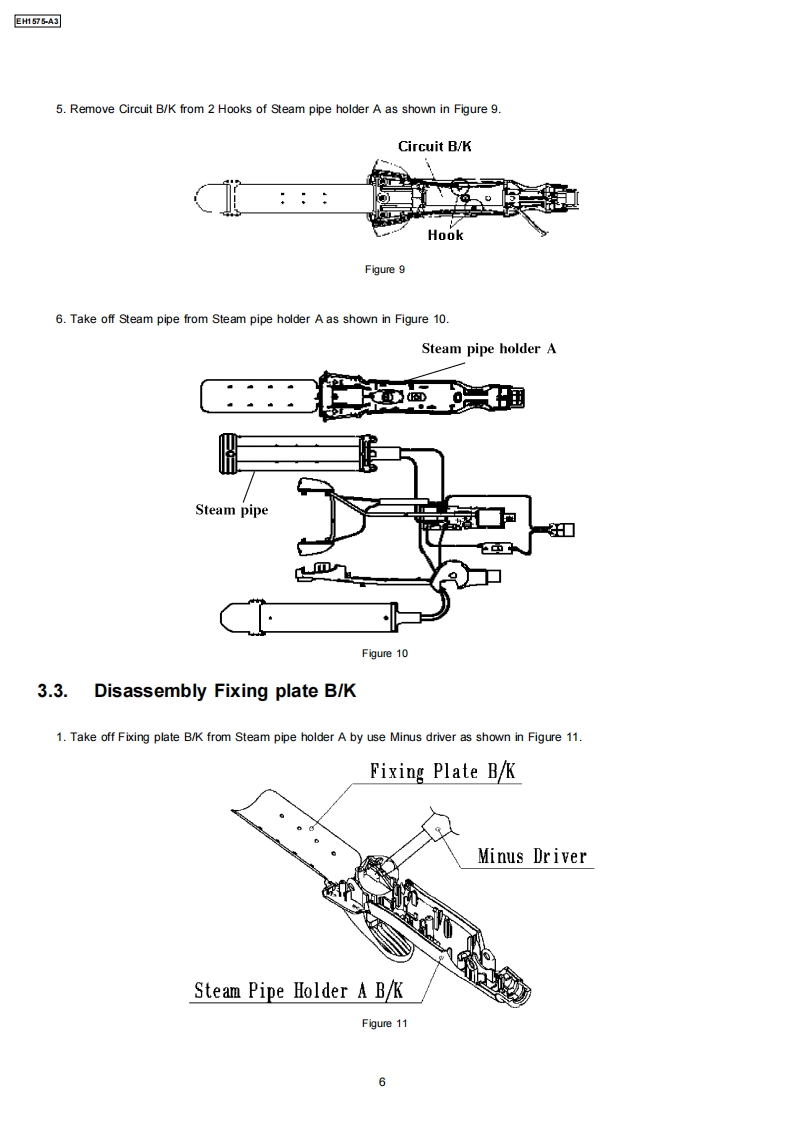

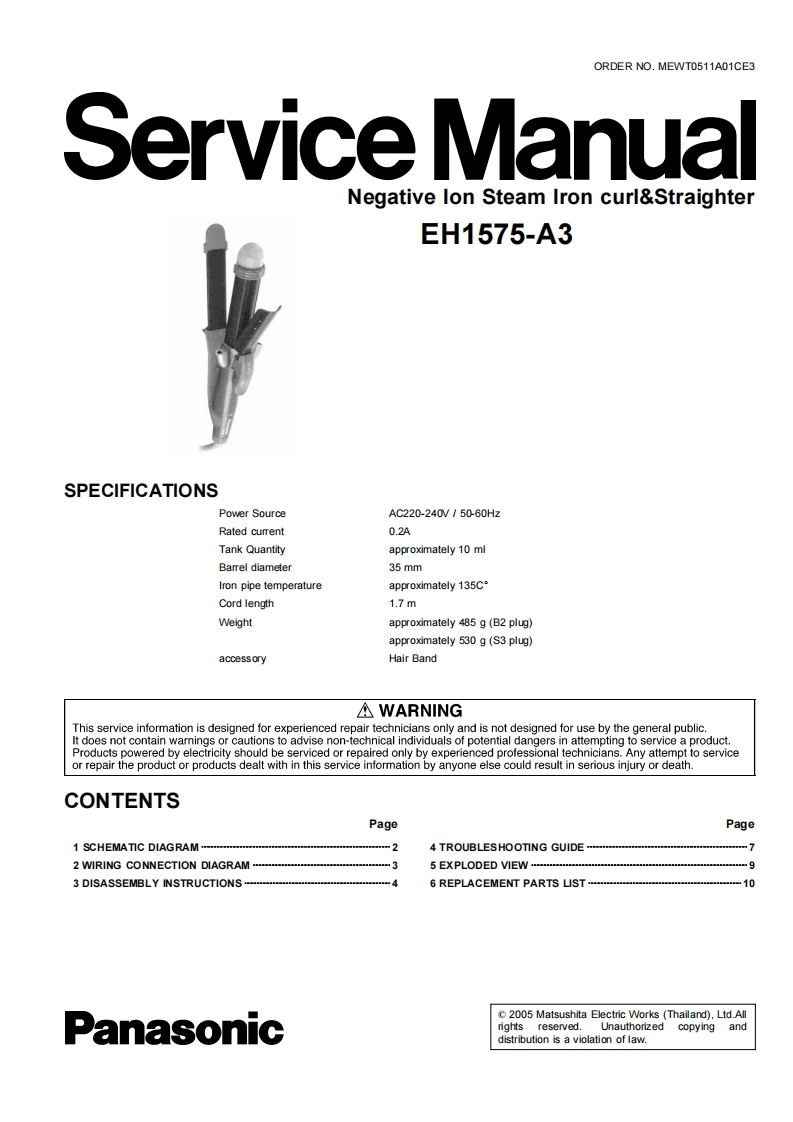

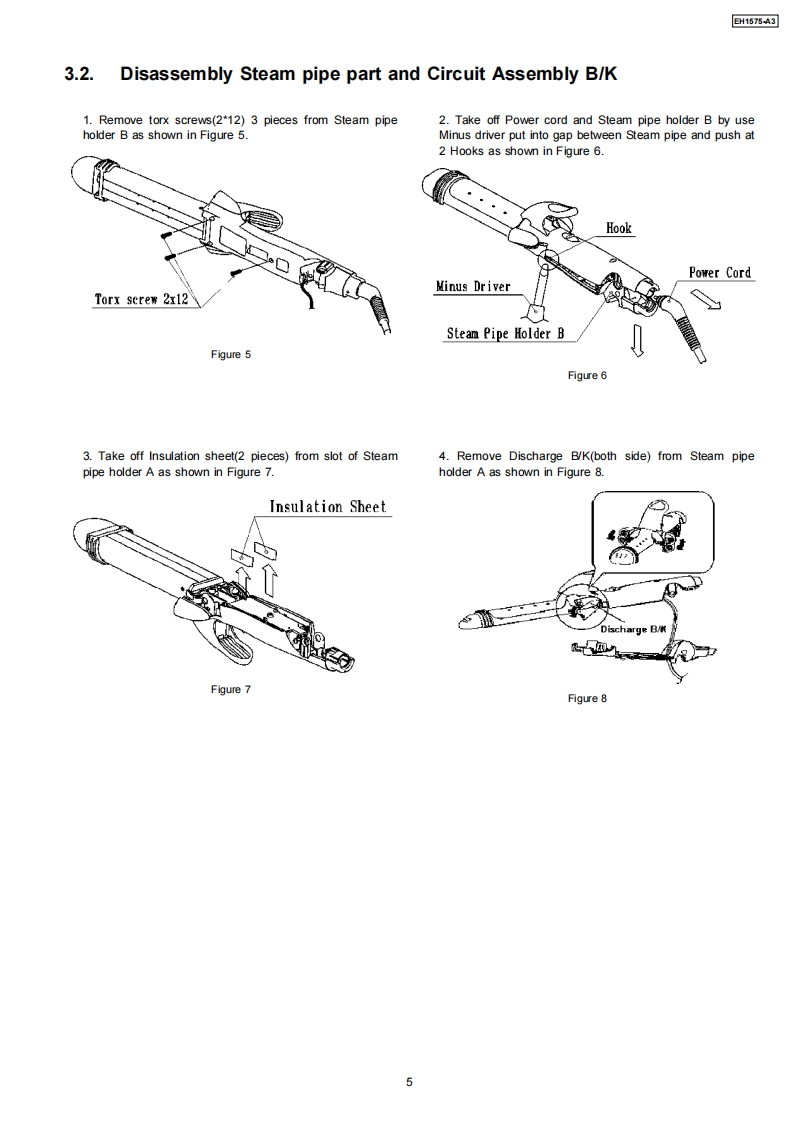

ORDER NO.MEWT0511A01CE3Service ManualNegative lon Steam Iron curl&StraighterEH1575-A3SPECIFICATIONSPower SourceAC220-240W/50-60HzRated current0.2ATank Quantityapproximately 10 mlBarrel diameter35 mmIron pipe temperatureapproximately 135CCord length1.7mWeightapproximately 485 g(B2 plug)approximately 530 g(S3 plug)accessoryHair BandAWARNINGThis service information is designed for experienced repair technicians only and is not designed for use by the general public.It does not contain wamings or cautions to advise non-technical individuals of potential dangers in attempting to service a productProducts powered by electricity should be serviced or repaired only by experienced professional technicians.Any attempt to serviceor repair the product or products dealt with in this service information by anyone else could result in serious injury or deathCONTENTSPagePage1 SCHEMATIC DIAGRAM-24 TROUBLESHOOTING GUIDE--72 WIRING CONNECTION DIAGRAM--.35 EXPLODED VIEW ..a93 DISASSEMBLY INSTRUCTIONS6 REPLACEMENT PARTS LIST..10Panasonic2005 Matsushita Electric Works (Thailand),Ltd.Allrights reserved.Unauthorizedcopyinganddistribution is a violation of law.
