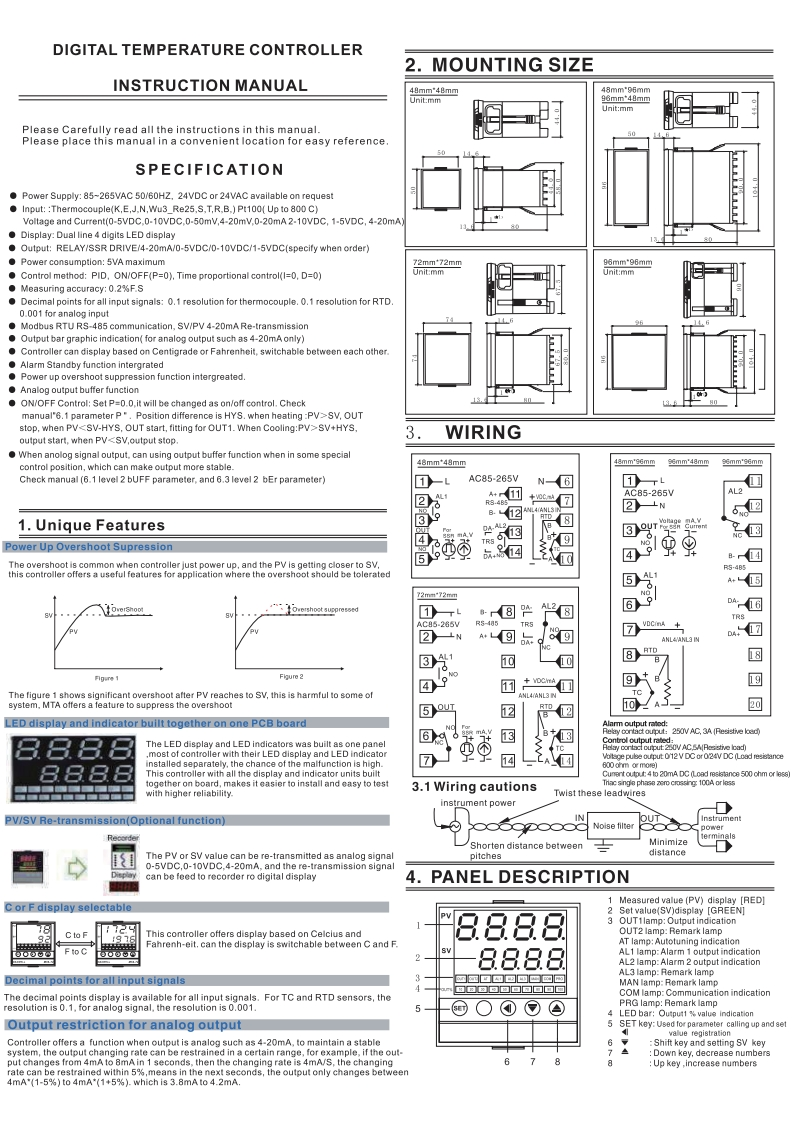

DIGITAL TEMPERATURE CONTROLLER2.MOUNTING SIZEINSTRUCTION MANUAL4gmm'48m四48mm*95mmUnit:mm96mm48m四Unit:mmPlease Carefully read all the instructions in this manual.Please place this manual in a convenient location for easy reference.SPECIFICATIONPower Supply:85~265VAC 50/60HZ,24VDC or 24VAC available on requestInput:Thermocouple(K,E,J.N,Wu3_Re25,S,T,R.B.)Pt100(Up to 800 C)Voltage and Current(0-5VDC,0-10VDC,0-50mV,4-20mV,0-20mA 2-10VDC,1-5VDC,4-20mADisplay:Dual line 4 digits LED displayOutput:RELAY/SSR DRIVE/4-20mA/0-5VDC/D-10VDC/1-5VDC(specify when order)Power consumption:5VA maximum72mm*72mm96mm*96mmControl method:PID,ON/OFF(P=0).Time proportional control(I=0,D=0)Unit:mmUnit:mmMeasuring accuracy:0.2%F.SDecimal points for all input signals:0.1 resolution for thermocouple.0.1 resolution for RTD0.001 for analog input7Modbus RTU RS-485 communication,SV/PV 4-20mA Re-transmissionOutput bar graphic indication(for analog output such as 4-20mA only)Controller can display based on Centigrade or Fahrenheit,switchable between each other.Alarm Standby function intergratedEaPower up overshoot suppression function intergreatedAnalog output buffer functionON/OFF Control:Set P=0.0,it will be changed as on/off control.Checkmanual"6.1 parameter P'.Position difference is HYS.when heating :PV>SV,OUTstop,when PVSV+HYS.output start,when PV
