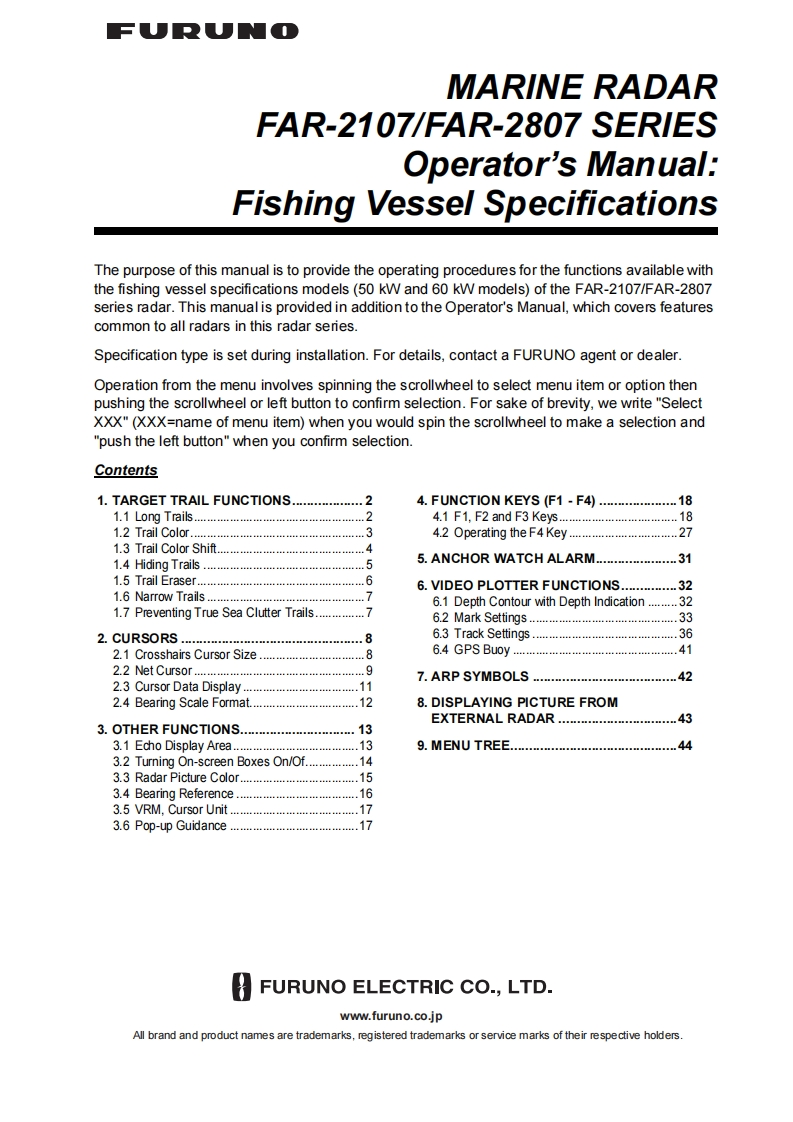

MARINE RADARFAR-2107/FAR-2807 SERIESOperator's Manual:Fishing Vessel SpecificationsThe purpose of this manual is to provide the operating procedures for the functions available withthe fishing vessel specifications models(50 kW and 60 kW models)of the FAR-2107/FAR-2807series radar.This manual is provided in addition to the Operator's Manual,which covers featurescommon to all radars in this radar series.Specification type is set during installation.For details,contact a FURUNO agent or dealer.Operation from the menu involves spinning the scrollwheel to select menu item or option thenpushing the scrollwheel or left button to confirm selection.For sake of brevity,we write "SelectXXX"(XXX=name of menu item)when you would spin the scrollwheel to make a selection and"push the left button"when you confirm selection.Contents1.TARGET TRAIL FUNCTIONS24.FUNCTION KEYS(F1-F4)..181.1 Long Trails........24.1 F1,F2 and F3 Keys........181.2 Trail Color.....34.2 Operating the F4 Key......271.3 Trail Color Shift...41.4 Hiding Trails....5.ANCHOR WATCH ALARM.......311.5 Trail Eraser..66.VIDEO PLOTTER FUNCTIONS..........321.6 Narrow Trails........76.1 Depth Contour with Depth Indication........321.7 Preventing True Sea Clutter Trails.6.2 Mark Settings….332.CURSORS......86.3 Track Settings.362.1 Crosshairs Cursor Size.86.4 GPS Buoy..412.2 Net Curs0r…97.ARP SYMBOLS .........…422.3 Cursor Data Display......112.4 Bearing Scale Format...128.DISPLAYING PICTURE FROMEXTERNAL RADAR...433.OTHER FUNCTIONS..133.1 Echo Display Area.........139.MENU TREE...443.2 Turning On-screen Boxes On/Of.........143.3 Radar Picture Color..153.4 Bearing Reference.....163.5 VRM,Cursor Unit..173.6 Pop-up Guidance ........17FURUNO ELECTRIC CO.,LTD.www.furuno.co.jpAll brand and product names are trademarks,registered trademarks or service marks of their respective holders
