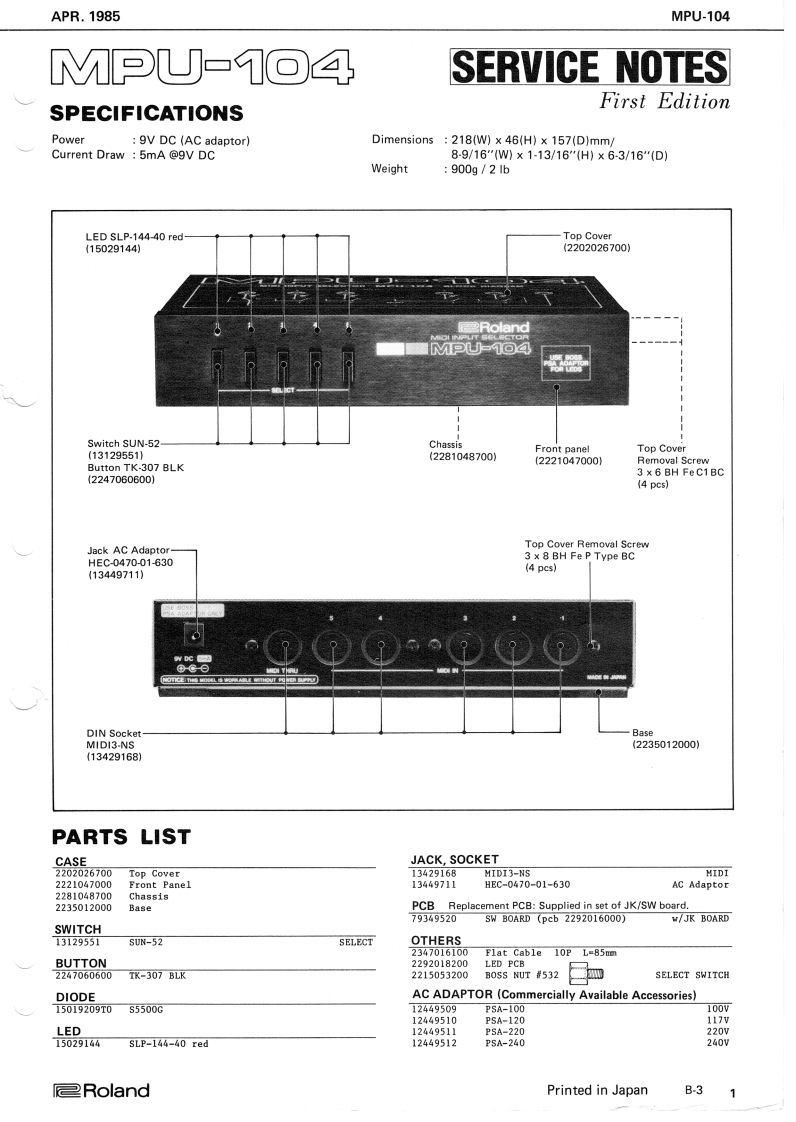

APR.1985MPU-104MPLU-M回ASERVICE NOTESSPECIFICATIONSFirst EditionPower9V DC (AC adaptor)Dimensions 218(W)x 46(H)x 157(D)mm/Current Draw 5mA @9V DC8-9/16"(W×1-13/16"(H)×6-3/16"(D)Weight:900g/2IbLED SLP-144-40 redTop Cover(15029144)(2202026700)Switch SUN-52Chassis(13129551)Front panelTop Cover(2281048700)22210470001Button TK-307 BLKRemoval Screw3 x6 BH FeC1BC(2247060600)(4 pcs)Jack AC AdaptorTop Cover Removal ScrewHEC-0470-01-6303x 8 BH Fe P Type BC(13449711)(4 pcs)DIN SocketBaseMIDI3NS(2235012000)(13429168)PARTSLISTCASEJACK,SOCKET2202026700Top Cover13429168MIDI3-NS2221047000Front Panel13449711HEC-0470-01-630AC Adaptor2281048700Chassis2235012000BasePCB Replacement PCB:Supplied in set of JK/SW board.79349520SW BOARD (pcb 2292016000)/JK BOARDSWITCH13129551SUN-52SELECTOTHERS2347016100Flat Cable 10P L=85mmBUTTON2292018200LED PCB2247060600TK-307 BLK2215053200BOSS NUT #532SELECT SWITCHDIODEAC ADAPTOR (Commercially Available Accessories)15019209T0S5500G12449509PSA-100100V12449510PSA-120117VLED12449511PSA-220220V15029144SLP-144-40 red12449512PSA-240240VRolandPrinted in JapanB-31
