ESAB_PCM-875操作手册含电器原理图

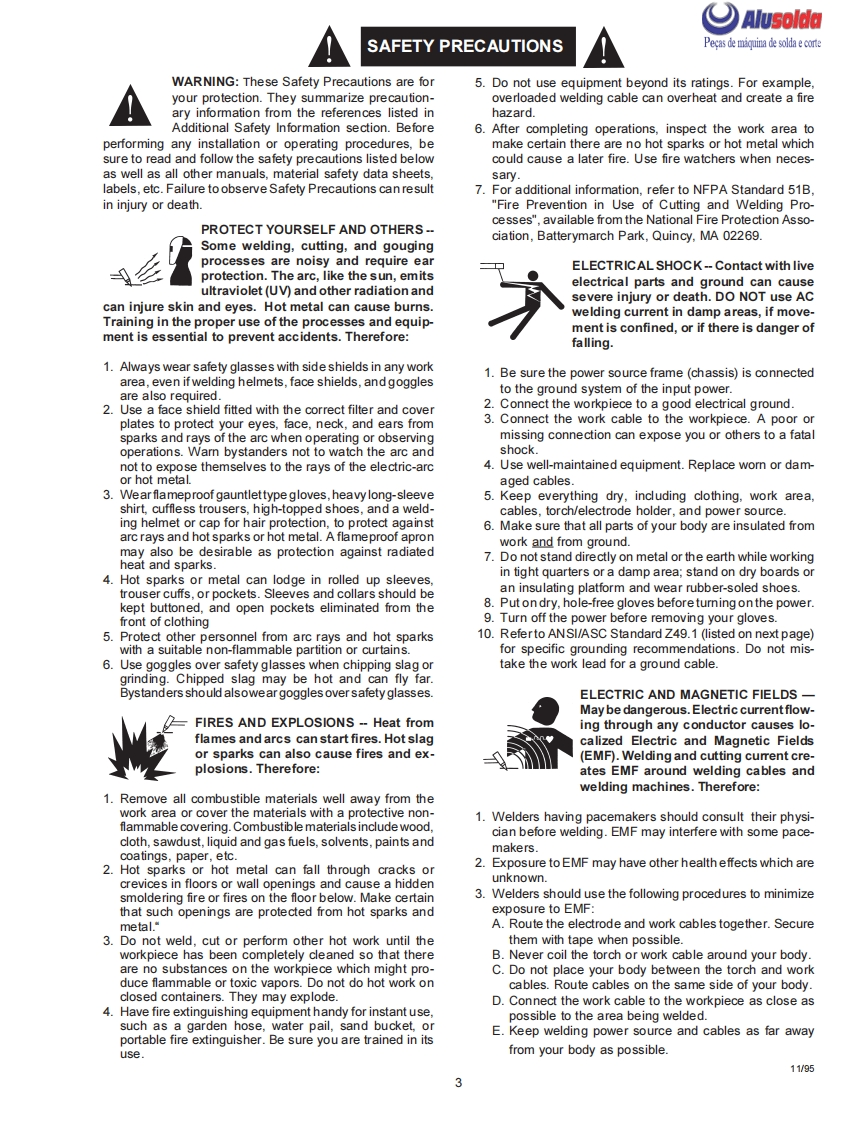

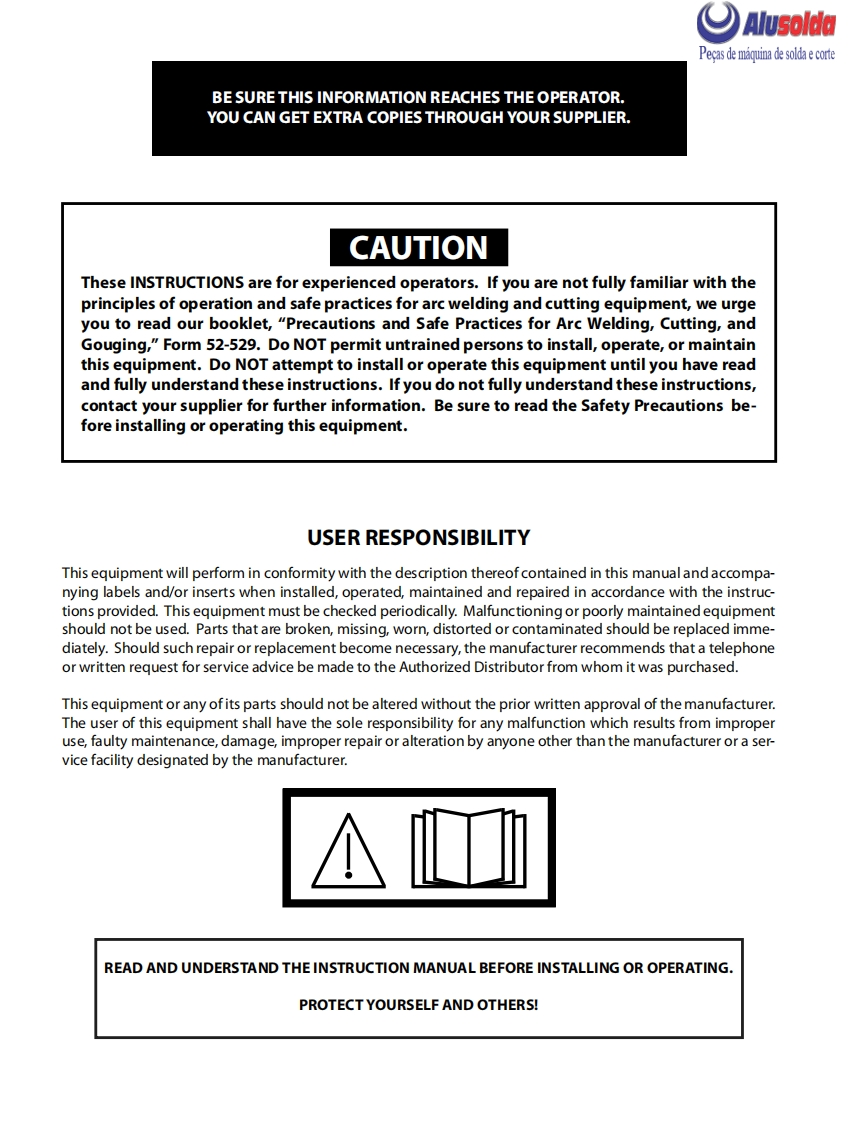

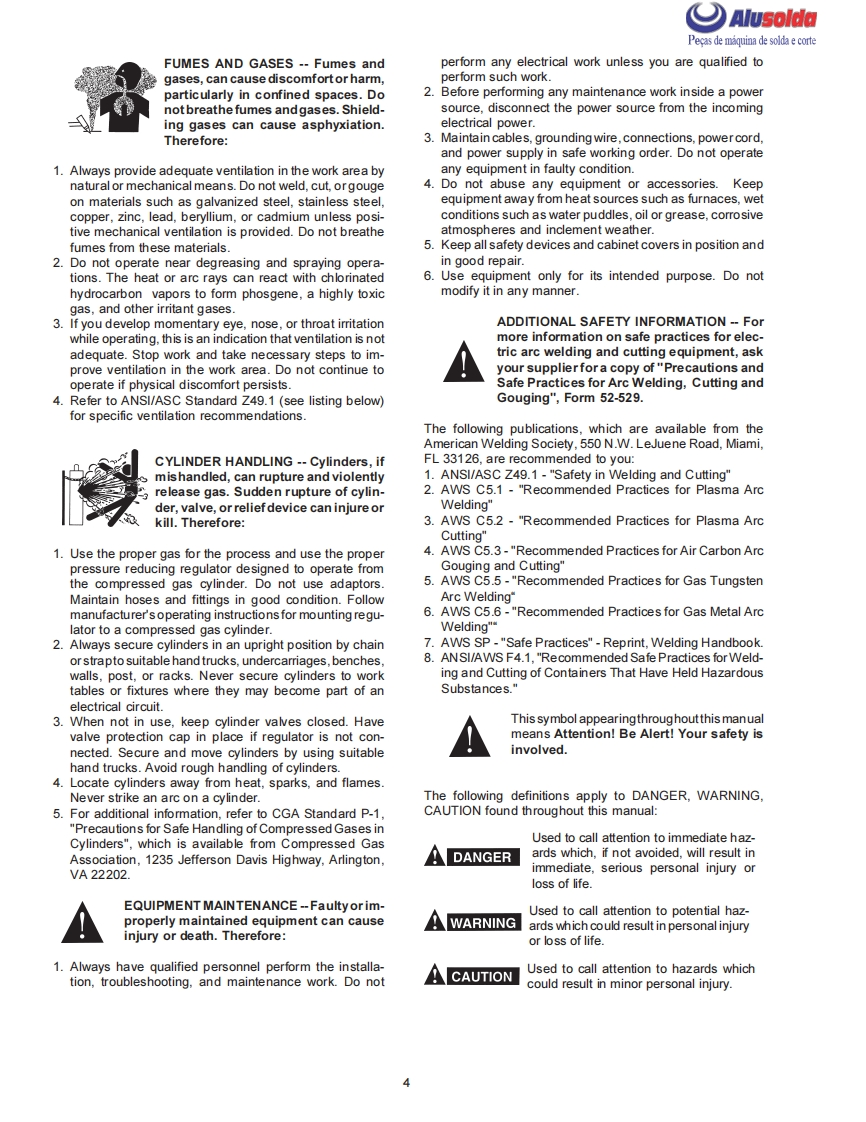

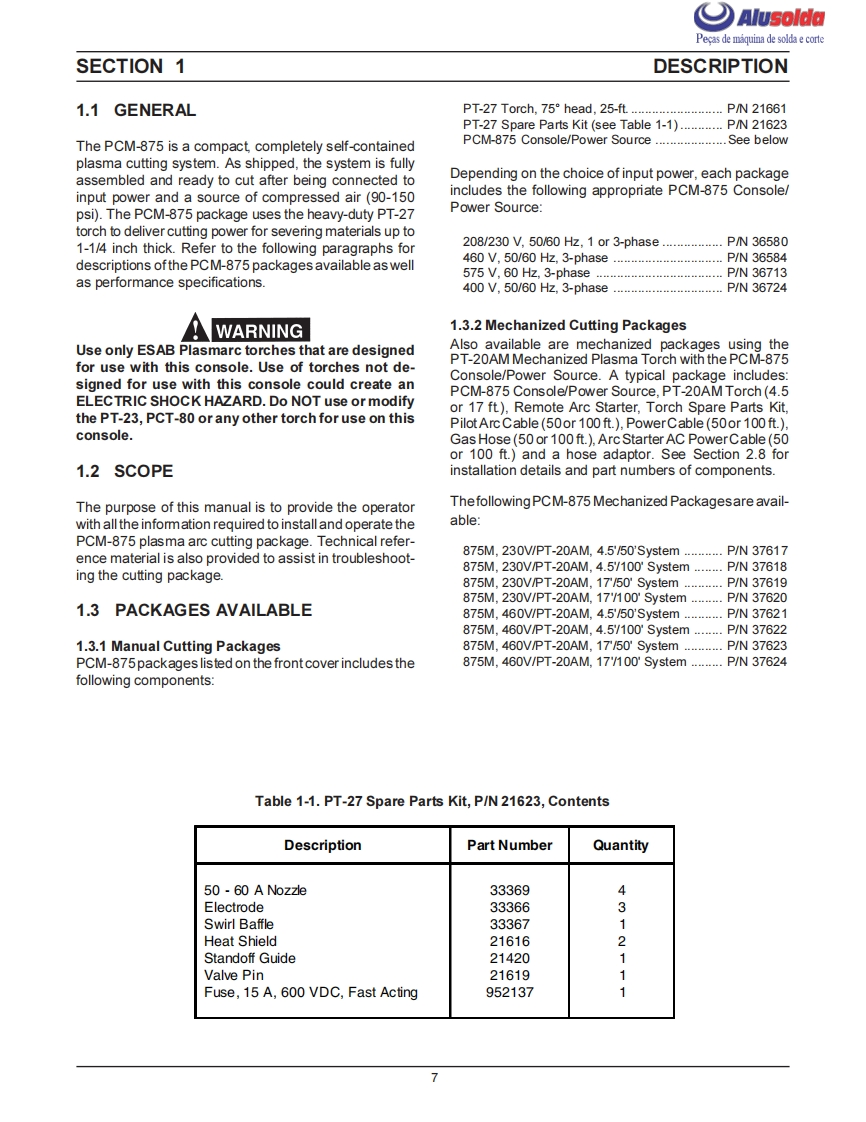

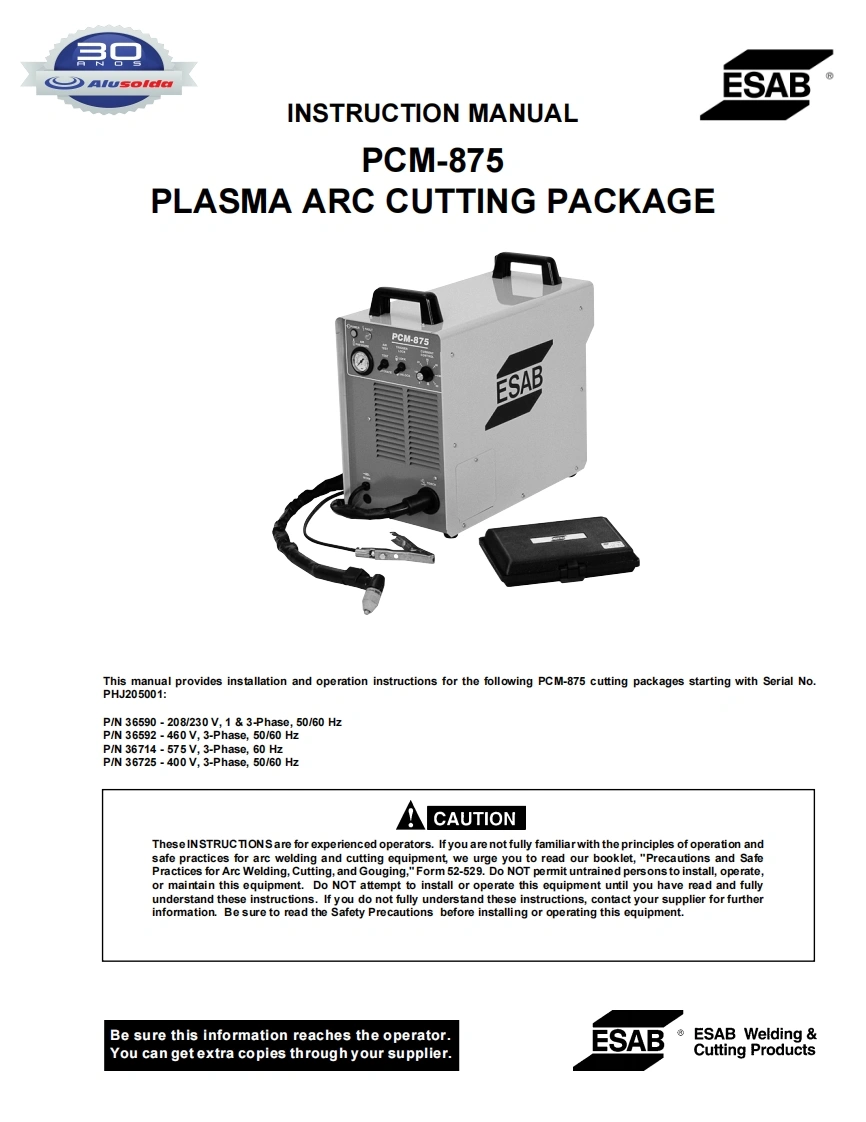

AlusoldaESABINSTRUCTION MANUALPCM-875PLASMA ARC CUTTING PACKAGEPCM-875This manual provides installation and operation instructions for the following PCM-875 cutting packages starting with Serial No.PHJ205001:PN36590-208/230V,1&3-Phas0,50/60HzP/N36592-460V,3-Phas0,50/60HzP/N36714-575V,3-Phas0,60HzP/N36725-400V,3-Phase,50/60HzCAUTIONThese INSTRUCTONS are for experienced operators.If you are not fully familiarwith the principles of operation andsafe practices for arc welding and cutting equipment,we urge you to read our booklet,"Precautions and SafePractices for Arc Welding,Cutting,and Gouging,"Form 52-529.Do NOT permit untrained persons to install,operate,or maintain this equipment.Do NOT attempt to install or operate this equipment until you have read and fullyunderstand these instructions.If you do not fully understand these instructions,contact your supplier for furtherinformation.Be sure to read the Safety Precautions before installing or operating this equipment.Be sure this information reaches the operator.0ESAB WeldingYou can get extra copies through your supplier.ESABCutting Products
