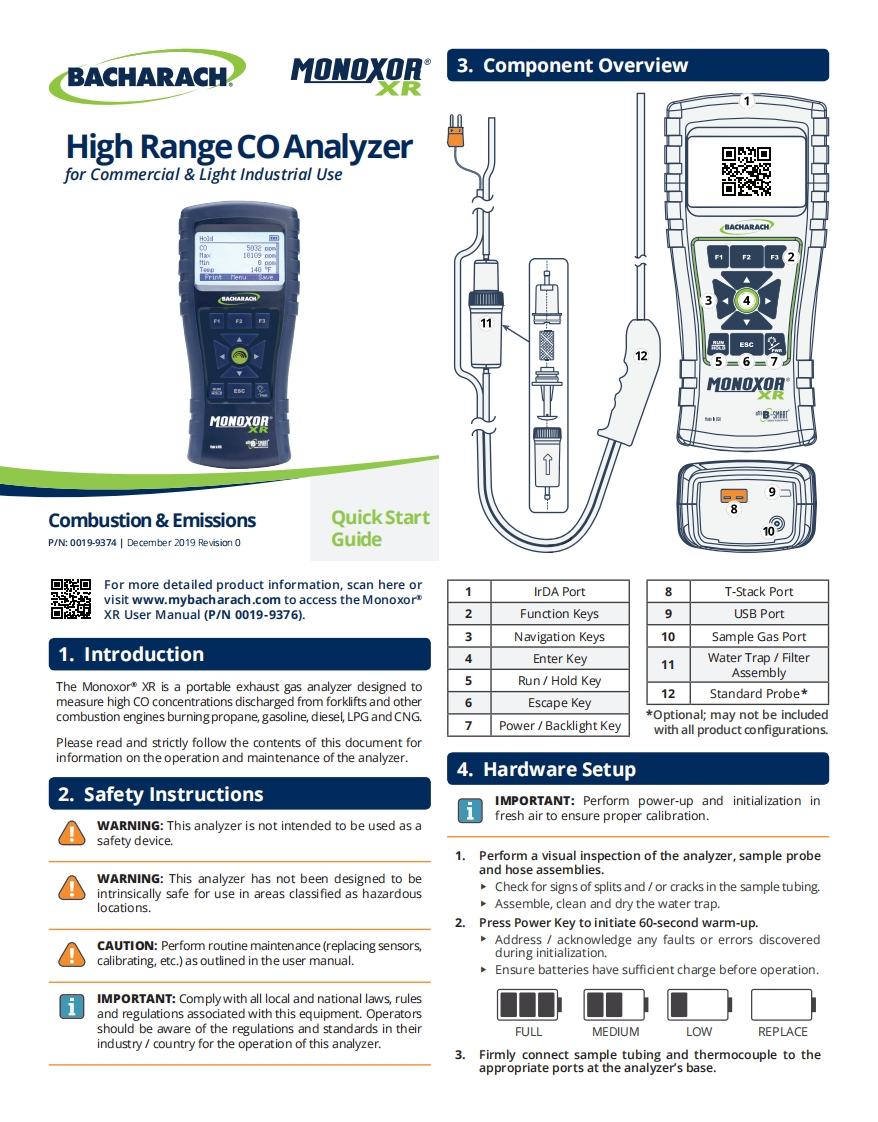

BACHARACHMONOXOR3.Component OverviewHigh Range CO Analyzer可▣for Commercial Light Industrial UseBACHARACHF2 F3F1 F2 r312g。MONOXORMONOXORB-SHETCombustion EmissionsQuick StartP/N:0019-9374 December 2019 Revision 0Guide口彩▣For more detailed product information,scan here oraIrDA PortT-Stack Portvisit www.mybacharach.com to access the Monoxor8XR User Manual (P/N 0019-9376).2Function Keys9USB Port3Navigation Keys10Sample Gas Port1.Introduction4Enter Key11Water Trap FilterAssemblyThe Monoxor XR is a portable exhaust gas analyzer designed to5Run/Hold Key12Standard Probe*measure high CO concentrations discharged from forklifts and other6Escape Keycombustion engines burning propane,gasoline,diesel,LPG and CNG.*Optional;may not be includedPower Backlight Keywith all product configurations.Please read and strictly follow the contents of this document forinformation on the operation and maintenance of the analyzer.4.Hardware Setup2.Safety InstructionsIMPORTANT:Perform power-up and initialization infresh air to ensure proper calibration.WARNING:This analyzer is not intended to be used as asafety device.1.Perform a visual inspection of the analyzer,sample probeand hose assemblies.WARNING:This analyzer has not been designed to beintrinsically safe for use in areas classified as hazardousCheck for signs of splits and/or cracks in the sample tubing.locations.Assemble,clean and dry the water trap.2.Press Power Key to initiate 60-second warm-up.CAUTION:Perform routine maintenance(replacing sensors,Address acknowledge any faults or errors discoveredduring initialization.calibrating,etc.)as outlined in the user manual.Ensure batteries have sufficient charge before operationIMPORTANT:Comply with all local and national laws,rulesand regulations associated with this equipment.Operatorsshould be aware of the regulations and standards in theirFULLMEDIUMLOWREPLACEindustry country for the operation of this analyzer.3.Firmly connect sample tubing and thermocouple to theappropriate ports at the analyzer's base.
