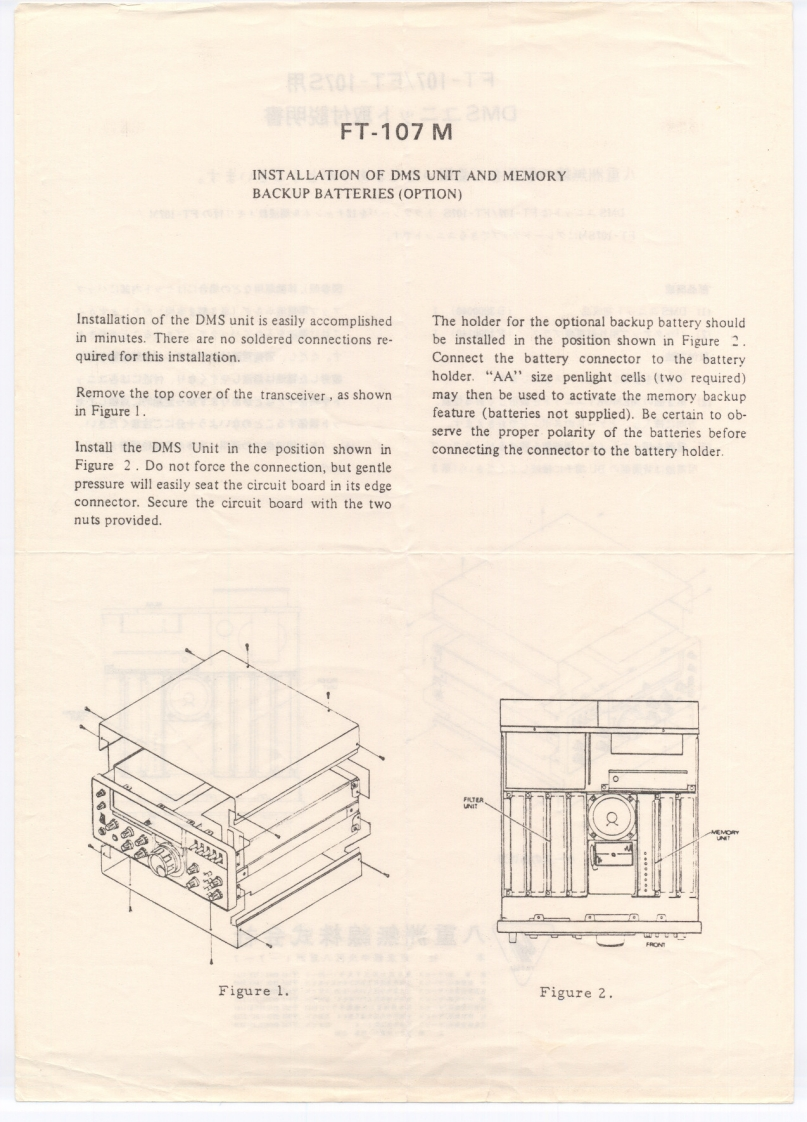

用20501-TFT-107MINSTALLATION OF DMS UNIT AND MEMORYBACKUP BATTERIES (OPTION)Installation of the DMS unit is easily accomplishedThe holder for the optional backup battery shouldin minutes.There are no soldered connections re-be installed in the position shown in Figure 2.quired for this installation.Connect the battery connector to the batteryholder."AA"'size penlight cells (two required)Remove the top cover of the transceiver,as shownmay then be used to activate the memory backupin Figure 1.feature (batteries not supplied).Be certain to ob-serve the proper polarity of the batteries beforeInstall the DMS Unit in the position shown inconnecting the connector to the battery holder.Figure 2.Do not force the connection,but gentlepressure will easily seat the circuit board in its edgeconnector.Secure the circuit board with the twonuts provided.2222Figure 1.Figure 2.
