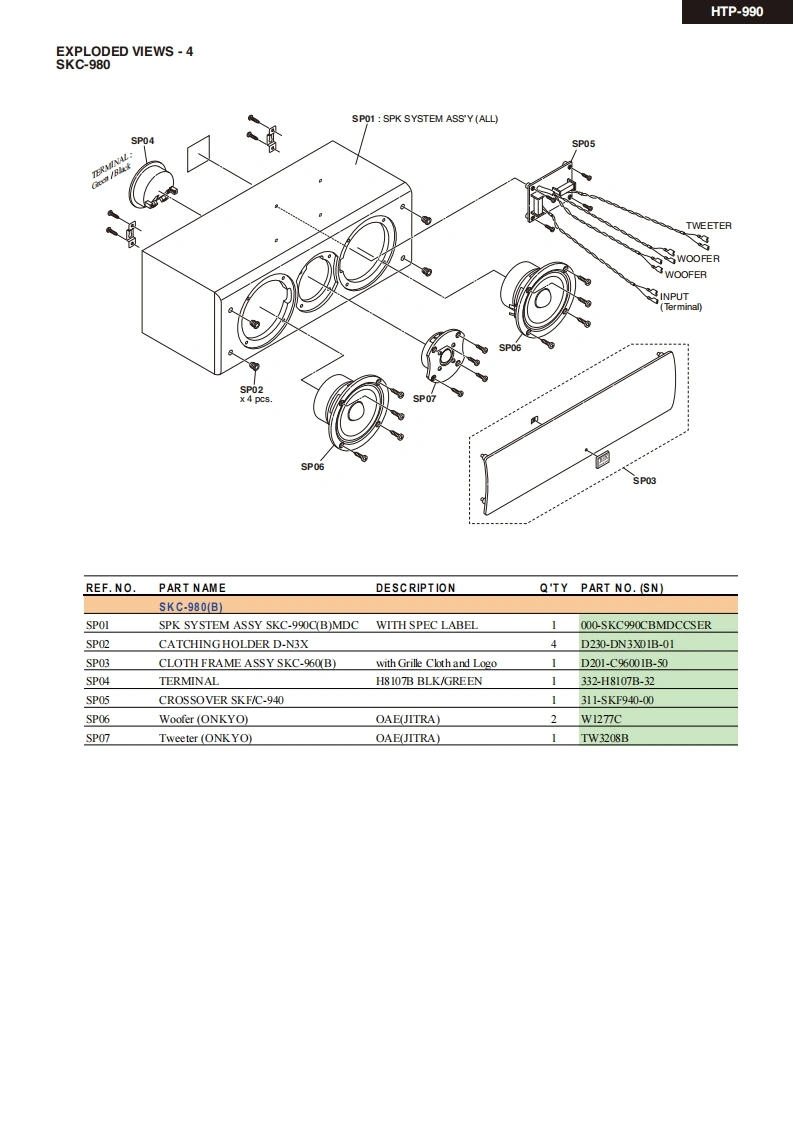

HTP-990Ref.No.4314ONYO SERVICE MANUAL0520117.1ch Home Theater Speaker PackageMODEL HTP-990(B)Front speakers (SKF-980)Center speaker(SKC-980)(Green)(White)(Red)Cork stoppers(12 pcs.)Center speakerSpeaker cable 10 ft.for front and center speakersSpeaker cables 11 ft.(3.0m)Front speakers(3.5m)Surround speakers (SKR-980)Powered subwoofer(SKW-980)Surround back speakers (SKB-980)RCA cable 10 ft.(3.0 m)(Blue)(Gray）Surround speakersSubwoofer(Brown)(Tan)Speaker cables 26 ft.(8.0 m)Surround back speakersBlack modelB MDC120V AC.60HzSAFETY-RELATED COMPONENT WARNING!!COMPONENTS IDENTIFIED BY MARK ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FORRISK OF FIRE AND ELECTRIC SHOCK.REPLACE THESE COMPONENTS WITH ONKYO PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL.MAKE LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED ARTS ARE ACCEPTABLYINSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THEAPPLIANCE TO THE CUSTOMER.ONKYO SOUND VISION CORPORATIONService Department
