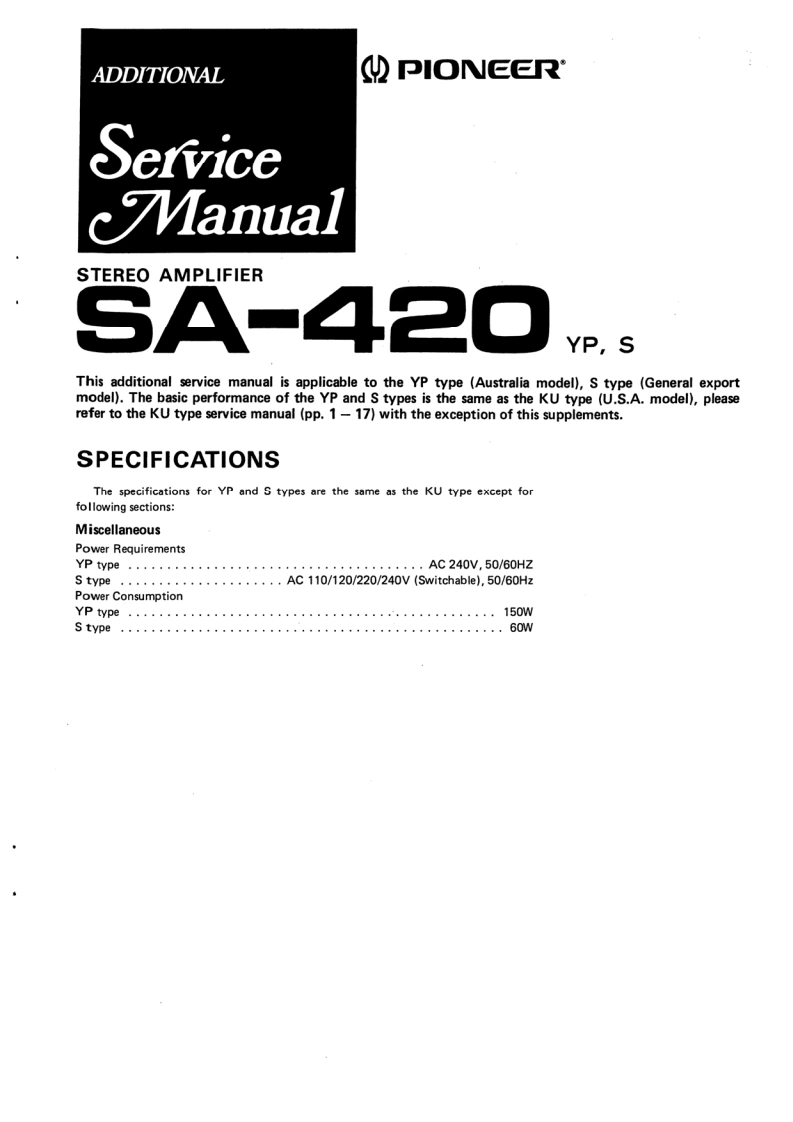

ADDITIONALPIONEERServicecManualSTEREO AMPLIFIERSA-420YP,SThis additional service manual is applicable to the YP type (Australia model),S type (General exportmodel).The basic performance of the YP and S types is the same as the KU type (U.S.A.model),pleaserefer to the KU type service manual(pp.1-17)with the exception of this supplements.SPECIFICATIONSThe specifications for YP and S types are the same as the KU type except forfollowing sections:MiscellaneousPower RequirementsYP type,,,,.,,.,,,AC240V,50/60HZS type,,,,·,,·······AC110/120/220/240V(Switchable),50/60HzPower ConsumptionYP typeS type,,,···
