sonyCDP-X505维修手册

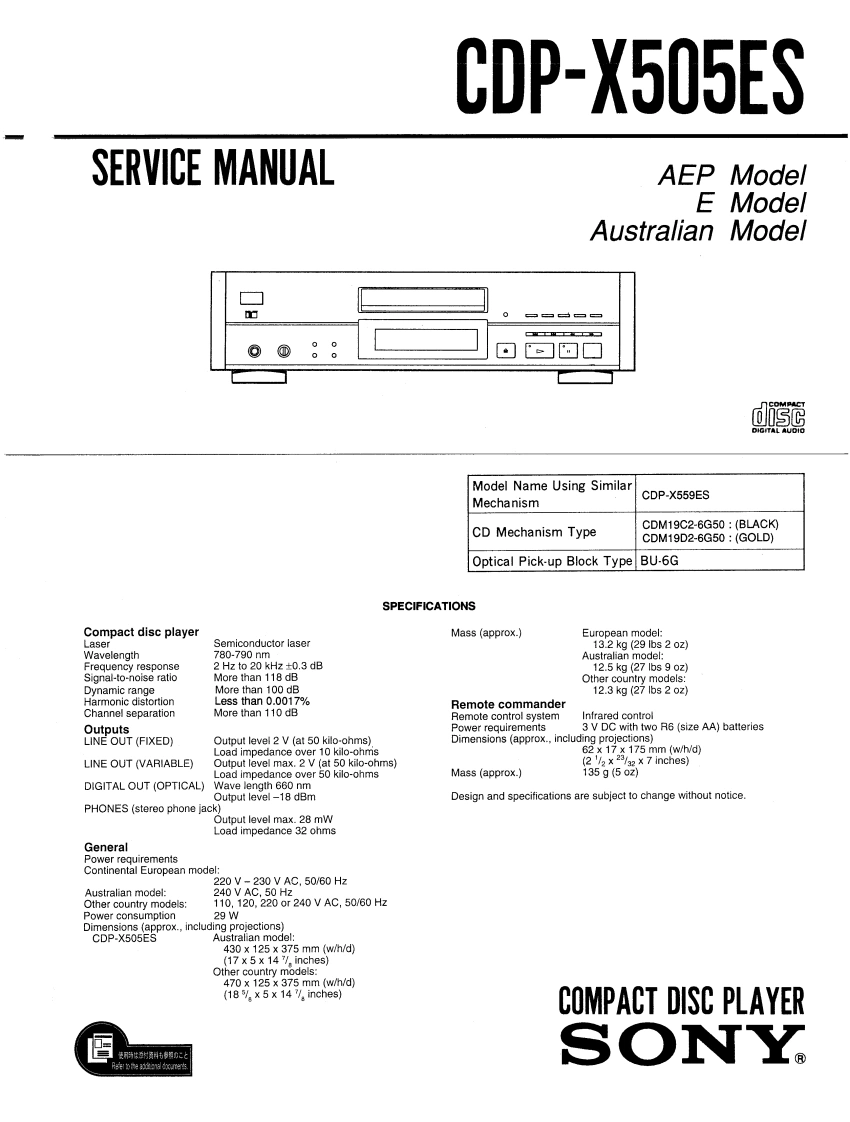

CDP-X505ESSERVICE MANUALAEP ModelE ModelAustralian Model0戴Model Name Using SimilarCDP-X559ESMechanismCDM19C2-6G50:(BLACK)CD Mechanism TypeCDM19D2-6G50:(GOLD)Optical Pick-up Block Type BU-6GSPECIFICATIONSCompact disc playerMass(approx.】European model:LaserSemiconductor laser13.2kg(29b320z)Wavelength780-790nmAustralian model:Frequency response2Hzto20kHz±0,3dB12.5kg(27lbs90zSignal-to-noise ratioMore than 118 dBOther country models:Dynamic rangeMore than 100 dB12.3kg(271b320zHarmonic distortionLess than 0.0017%Remote commanderChannel separationMore than 110 dBRemote control systemInfrared controlOutputsPower requirements3 V DC with two R6 (size AA)batteriesLINE OUT(FIXED)Output level 2V(at 50 kilo-ohms)Dimensions (approx.,including projections)Load impedance over 10 kilo-ohms62x17x175mm(w/h/d)LINE OUT (VARIABLE)Output level max.2 V (at 50 kilo-ohms)22x23/2×7 inches)Load impedance over 50 kilo-ohmsMass(approx.】135g(50z)DIGITAL OUT (OPTICAL)Wave length 660 nmOutput level -18 dBmDesign and specifications are subject to change without notice.PHONES (stereo phone jack)Output level max.28 mWLoad impedance 32 ohmsGeneralPower requirementsContinental European model:20V-230VAC,50/60HzAustralian model:240 V AC,50 HzOther country models:110,120.220or240VAC,50/60HzPower consumption29WDimensions (approx.,including projections)CDP-X505ESAustralian model:430×125x375mm(wh/d(17 x 5 x 14 /inches)Other country models:470X125x375mm(w/h/d(18x5 x 147/inches)COMPACT DISC PLAYERSONY定鱼2Y子毫
