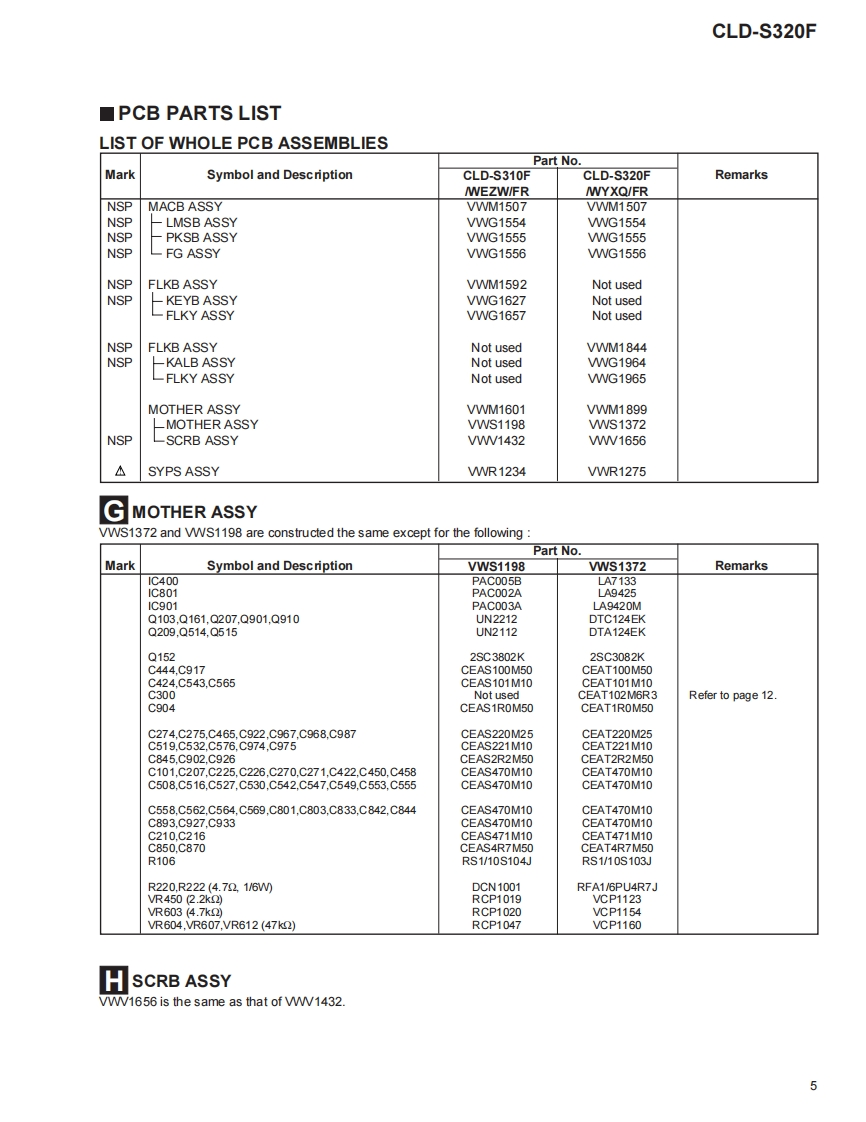

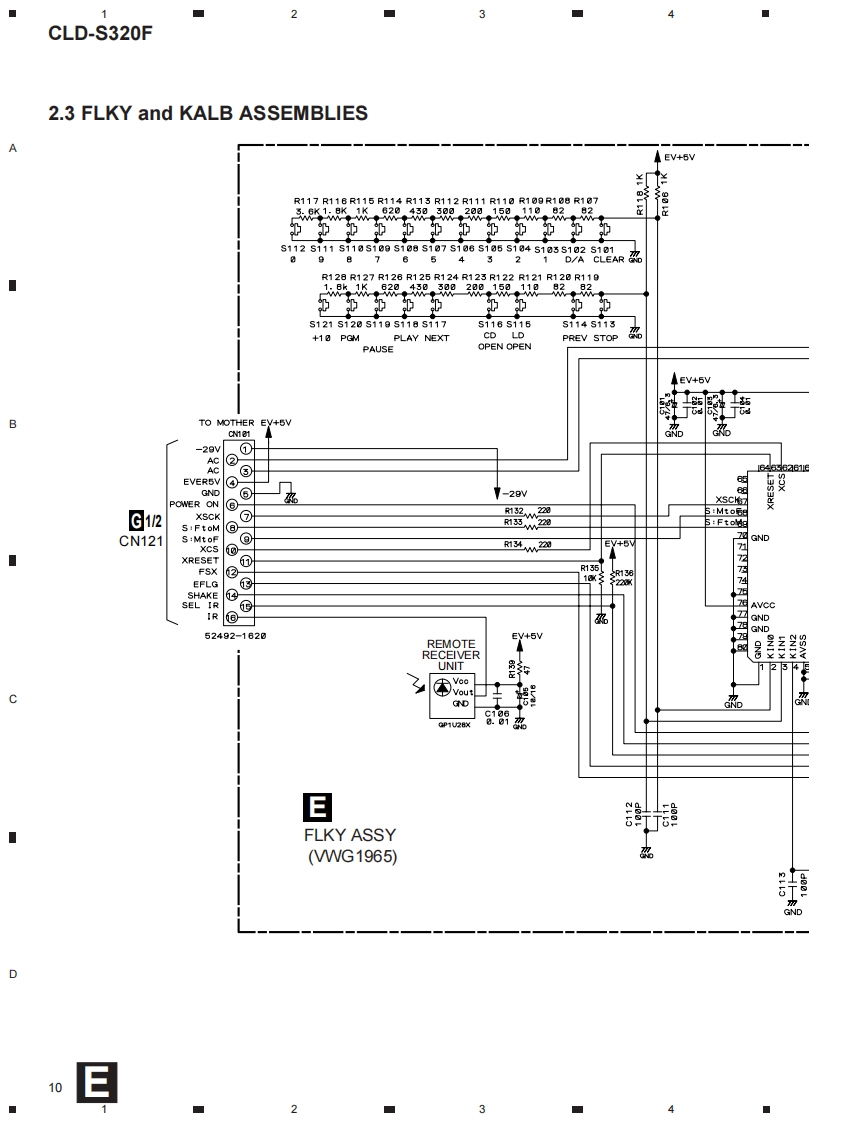

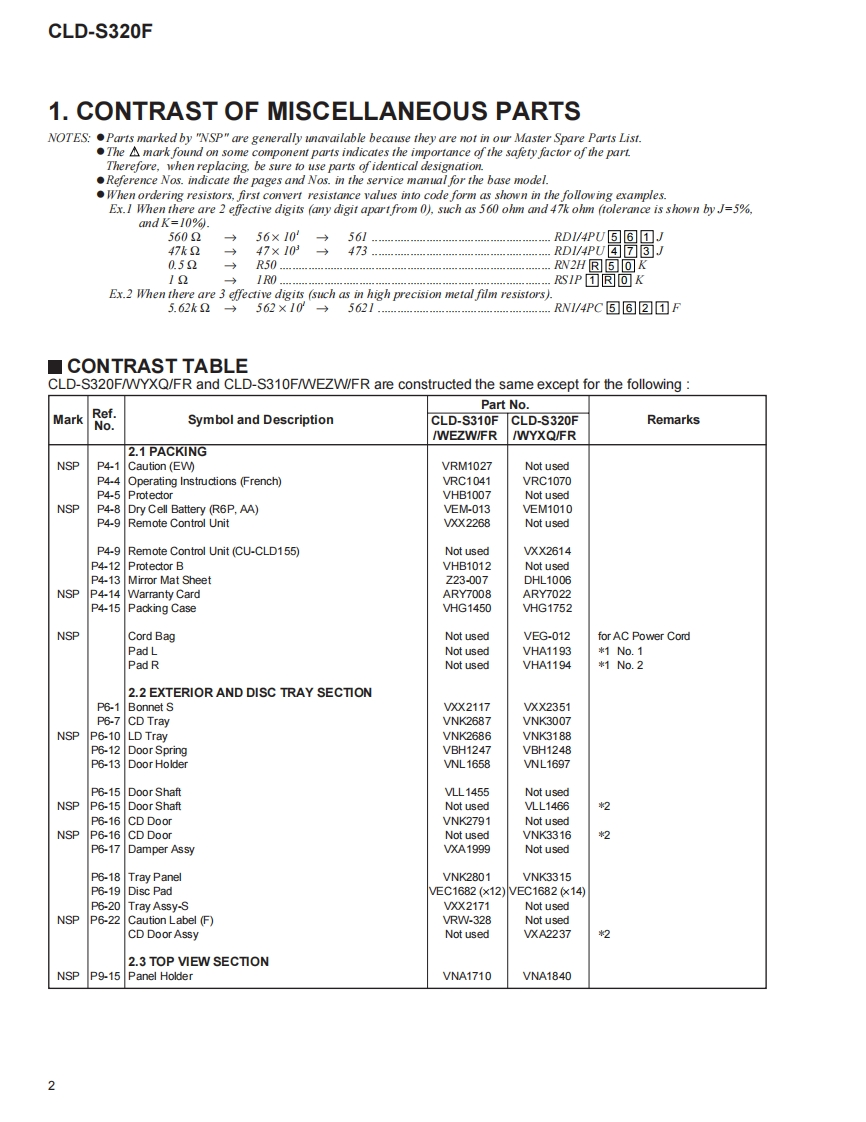

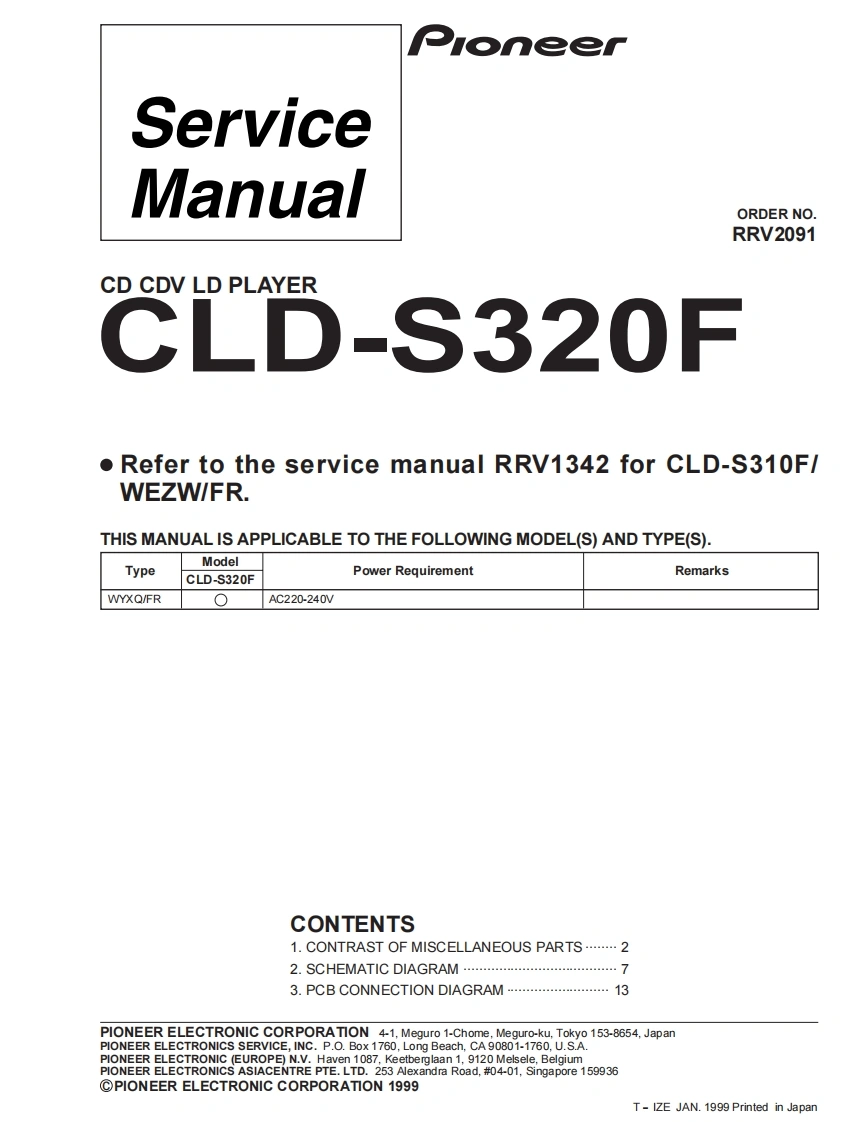

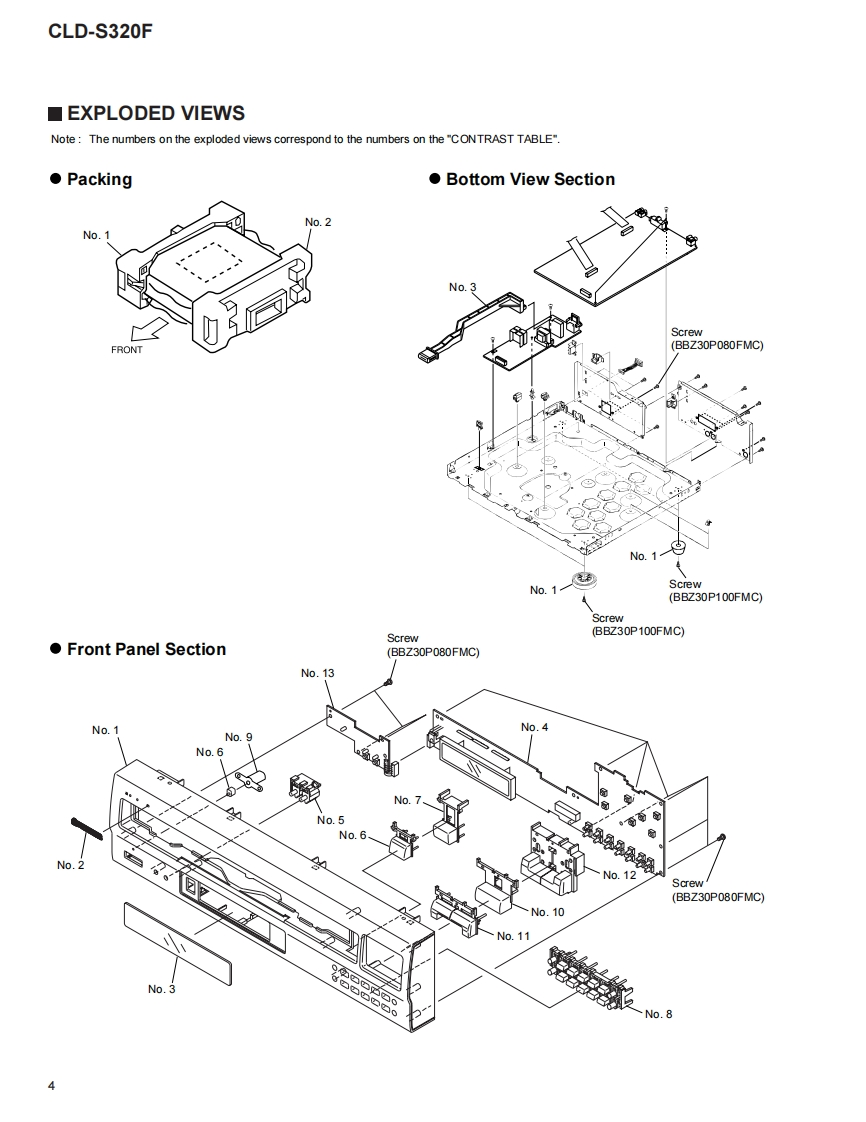

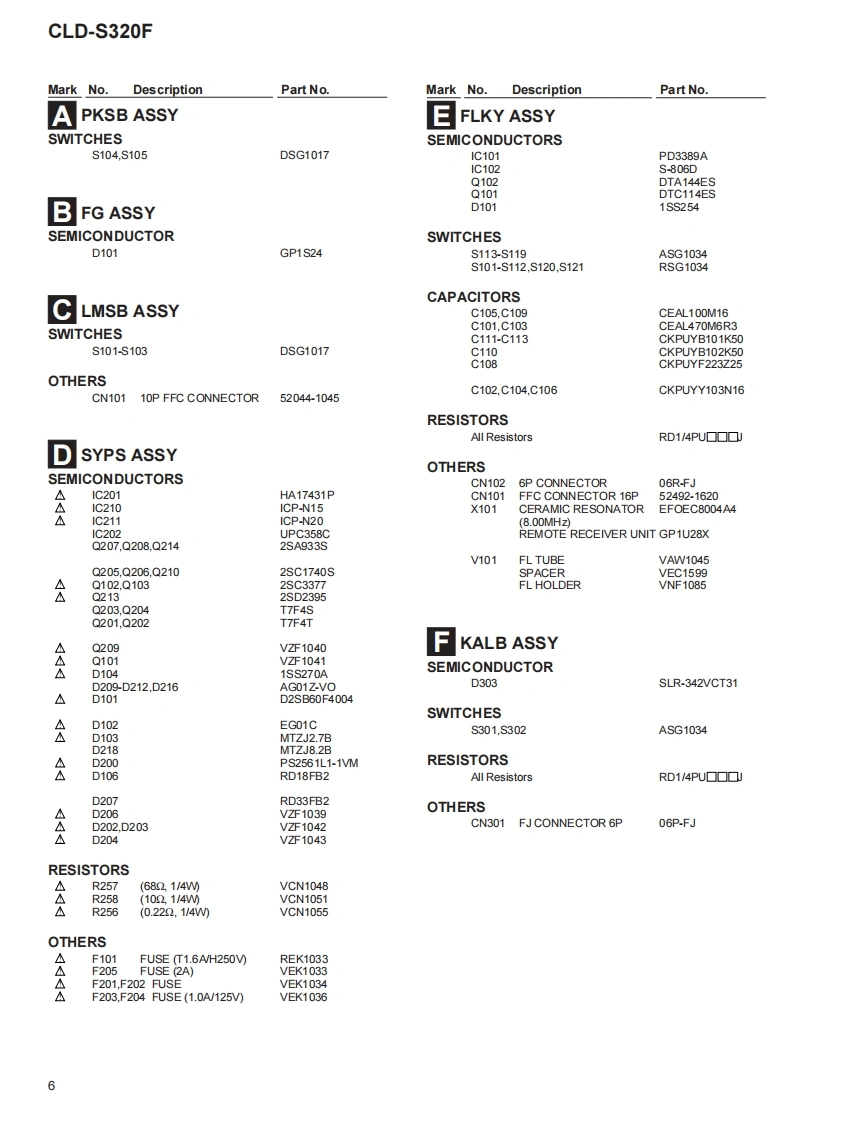

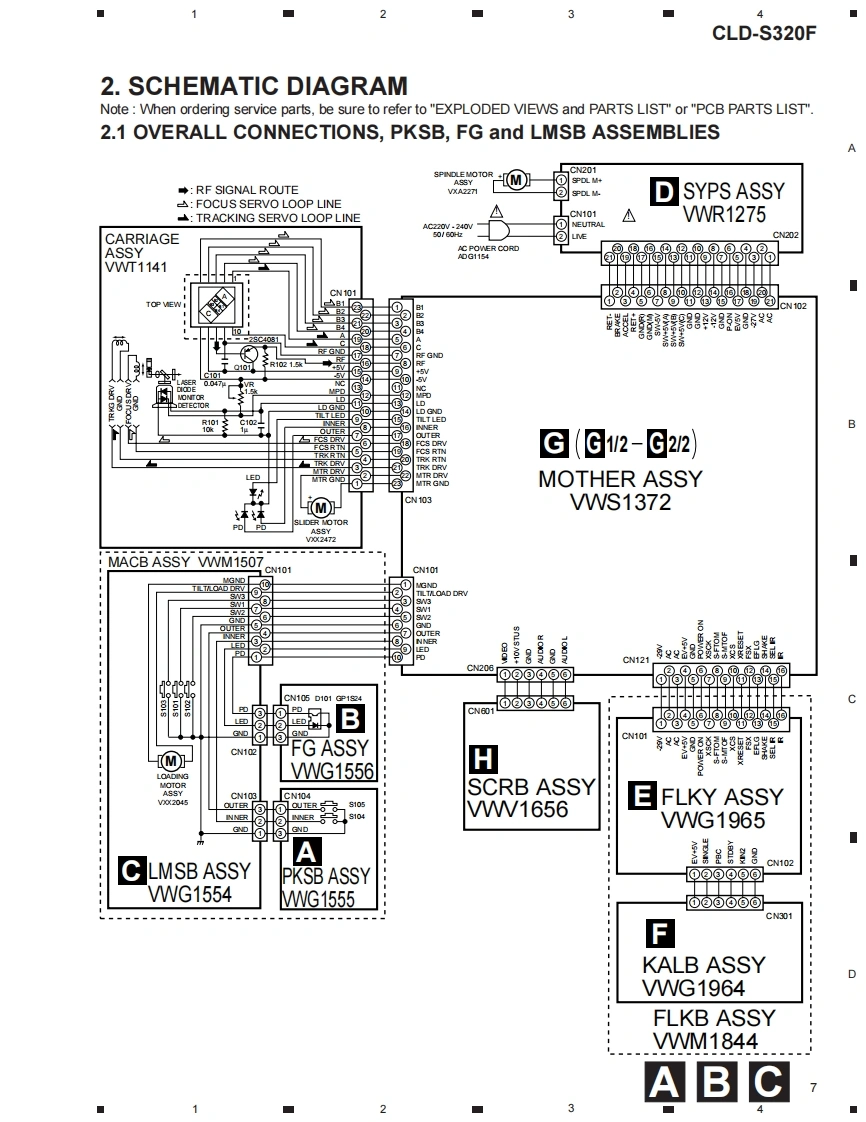

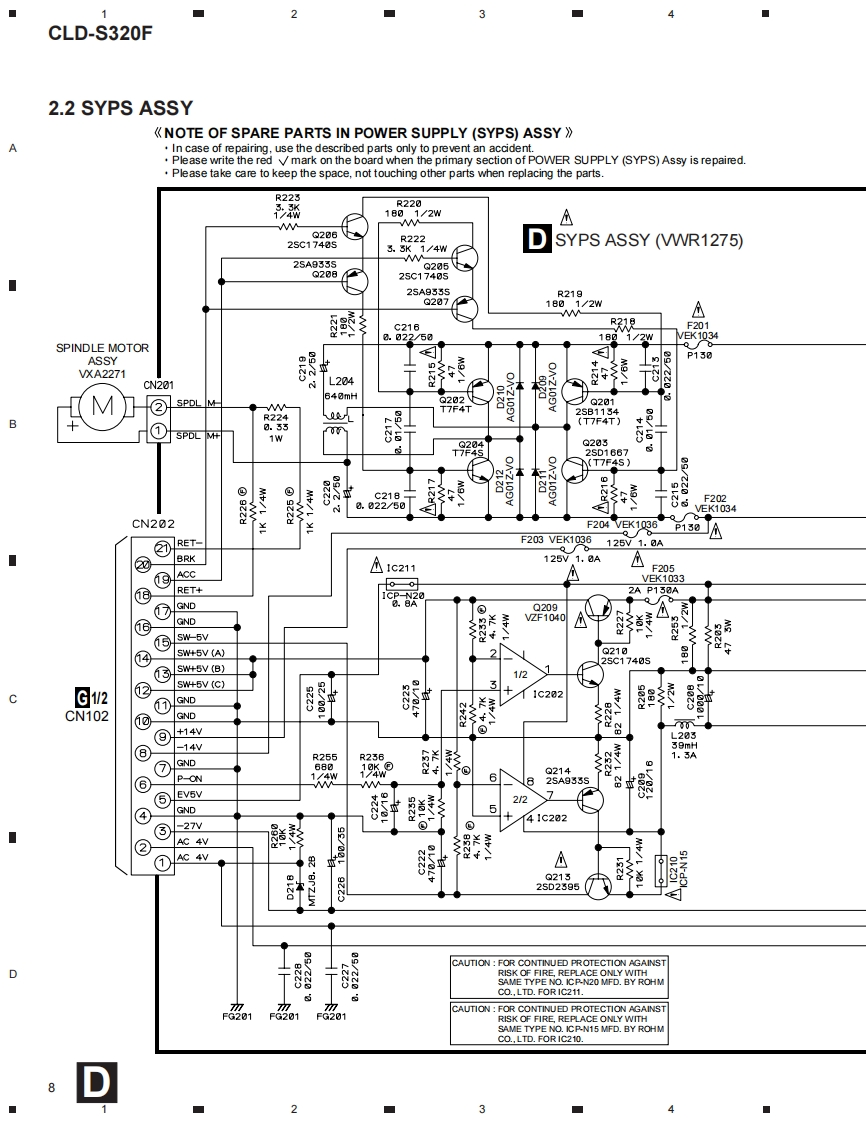

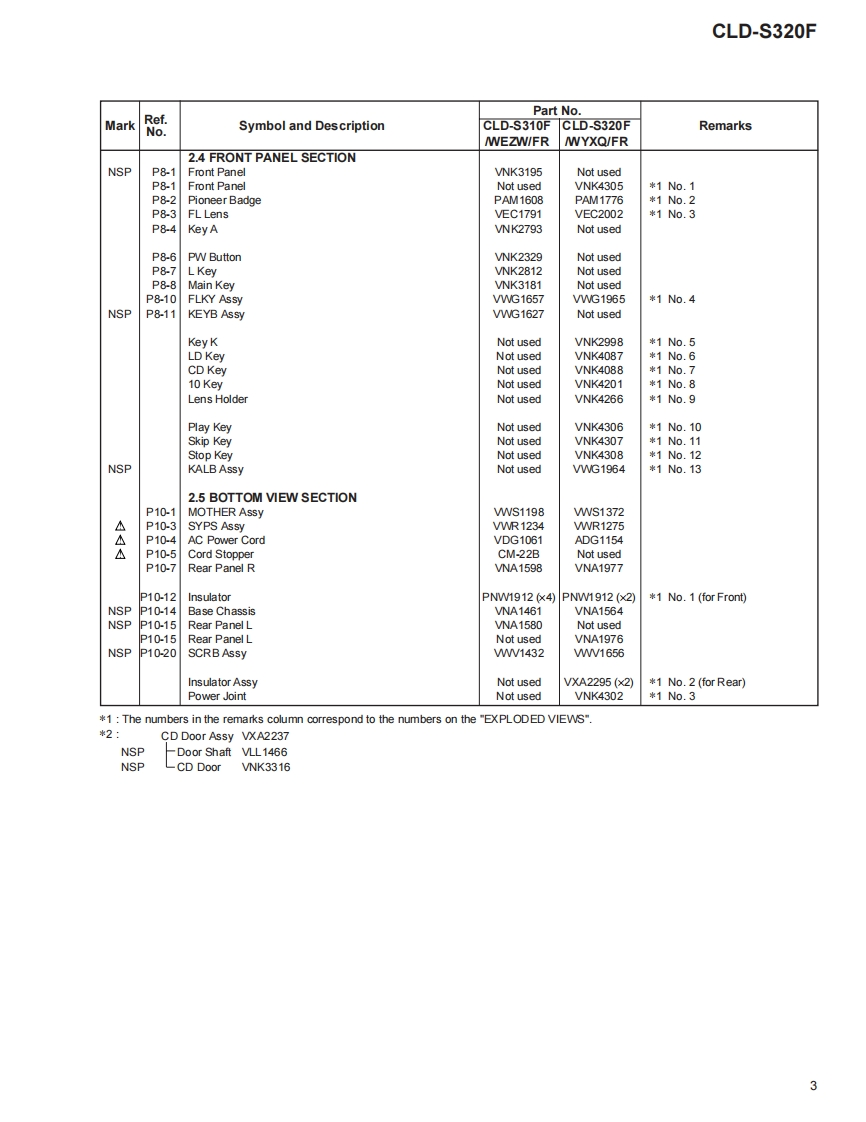

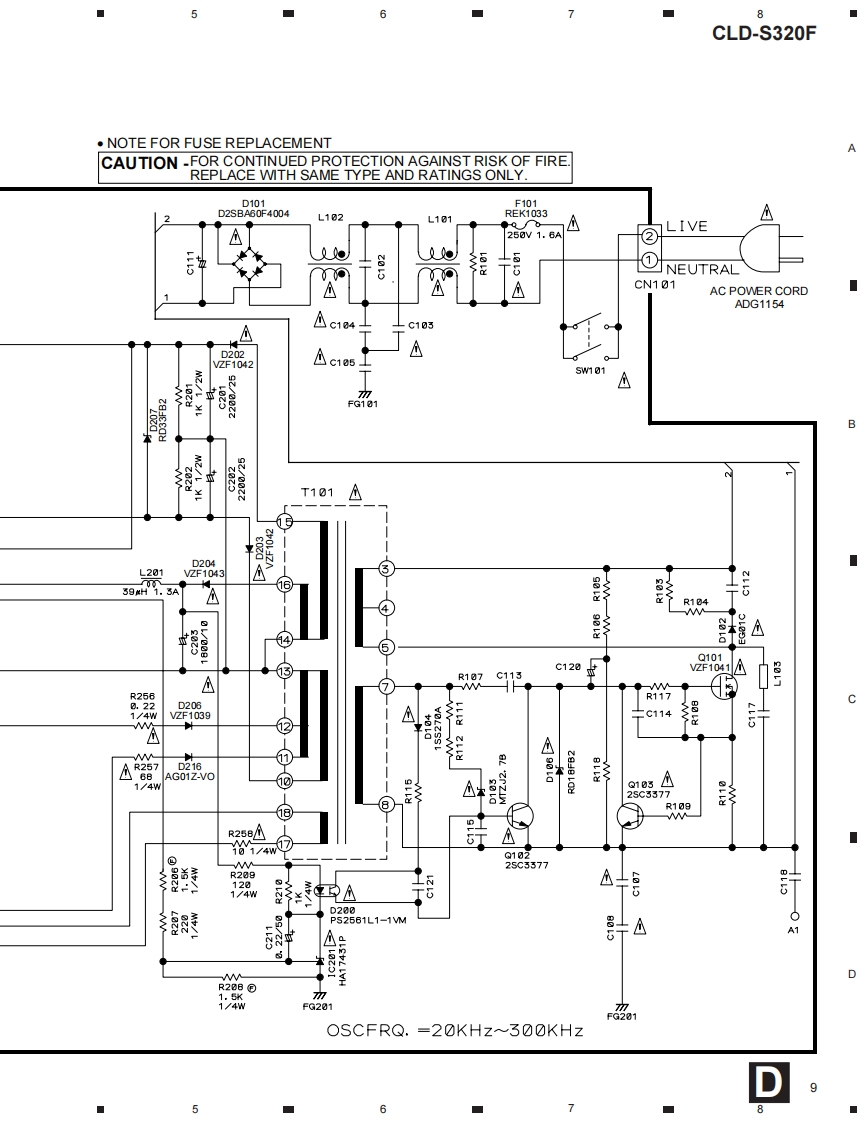

PioneerServiceManualORDER NO.RRV2091CD CDV LD PLAYERCLD-S320FRefer to the service manual RRV1342 for CLD-S310F/WEZW/FR.THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S)AND TYPE(S).TypeModelRemarksCLD-S320FPower RequirementWYXQ/FROAC220-240WCONTENTS1.CONTRAST OF MISCELLANEOUS PARTS.......22.SCHEMATIC DIAGRAM73.PCB CONNECTION DIAGRAM13PIONEER ELECTRONIC CORPORATION 4-1,Meguro 1-Chome,Meguro-ku,Tokyo 153-8654,JapanPIONEER ELECTRONICS SERVICE,INC.P.O.Box 1760,Long Beach,CA90801-1760,U.S.A.PIONEER ELECTRONIC (EUROPE)N.V.Haven 1087,Keetberglaan 1,9120 Melsele,BelgiumPIONEER ELECTRONICS ASIACENTRE PTE.LTD.253 Alexandra Road,#04-01,Singapore 159936CPIONEER ELECTRONIC CORPORATION 1999T-IZE JAN.1999 Printed in Japan
