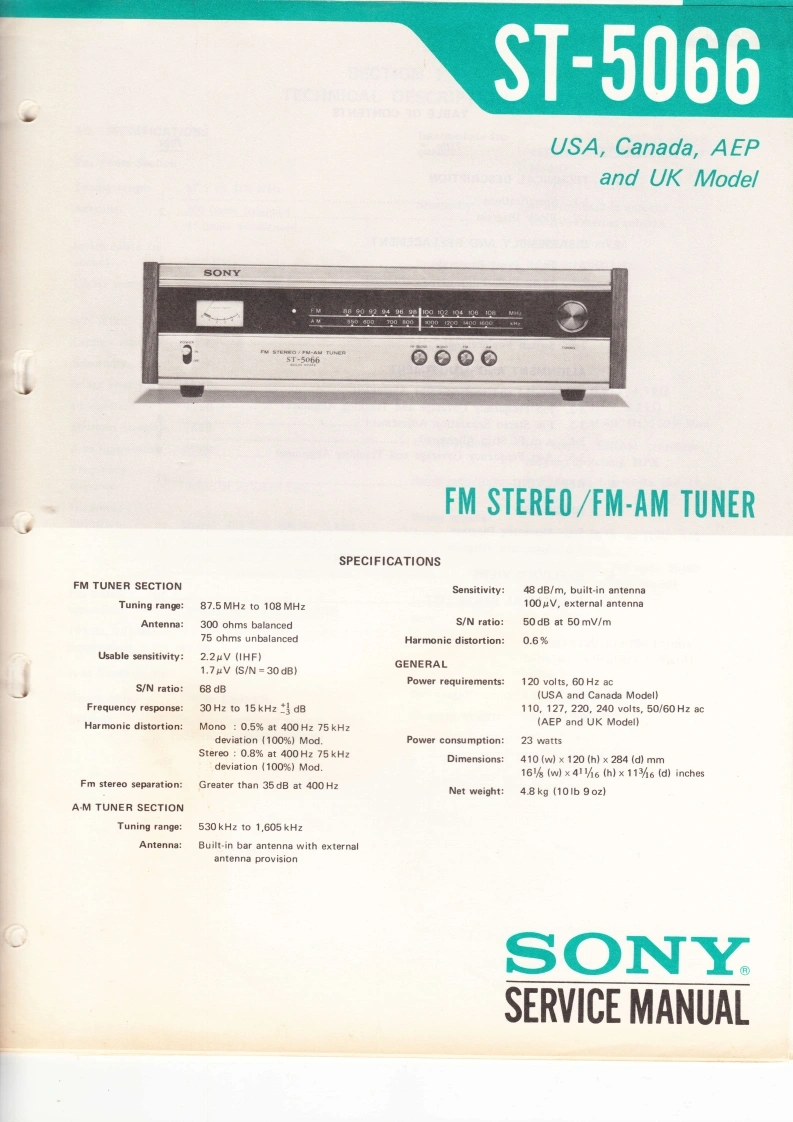

ST-5066USA,Canada,AEPand UK ModelSONY000000TM-AM5T-5066o0.0FM STEREO/FM-AM TUNERSPECIFICATIONSFM TUNER SECTIONSensitivity:48 dB/m,built-in antennaTuning range:87.5 MHz to 108 MHz100uV,external antennaAntenna:300 ohms balancedS/N ratio:50dB at 50mV/m75 ohms unbalancedHarmonic distortion:0.6%Usable sensitivity:2.2uV (IHF)1.7uV (S/N =30 dB)GENERALPower requirements:120 volts,60 Hz acS/N ratio:68 dB(USA and Canada Model)Frequency response:30 Hz to 15 kHz dB110.127,220.240 volts,50/60HzacHarmonic distortion:Mono 0.5%at 400 Hz 75 kHz(AEP and UK Model)deviation (100%)Mod.Power consumption:23 wattsStereo 0.8%at 400 Hz 75kHzDimensions:410(wlx120(hl×284(d)mmdeviation (100%)Mod.161/s (w)x 41116 (h)x 11316 (d)inchesFm stereo separation:Greater than 35 dB at 400 HzNet weight:4.8kg (101b 9oz)A-M TUNER SECTIONTuning range:530kHz to 1,605 kHzAntenna:Built-in bar antenna with externalantenna provisionSONYSERVICE MANUAL
