先锋播放器CLD-D503-EN_Service_Manual_Scan

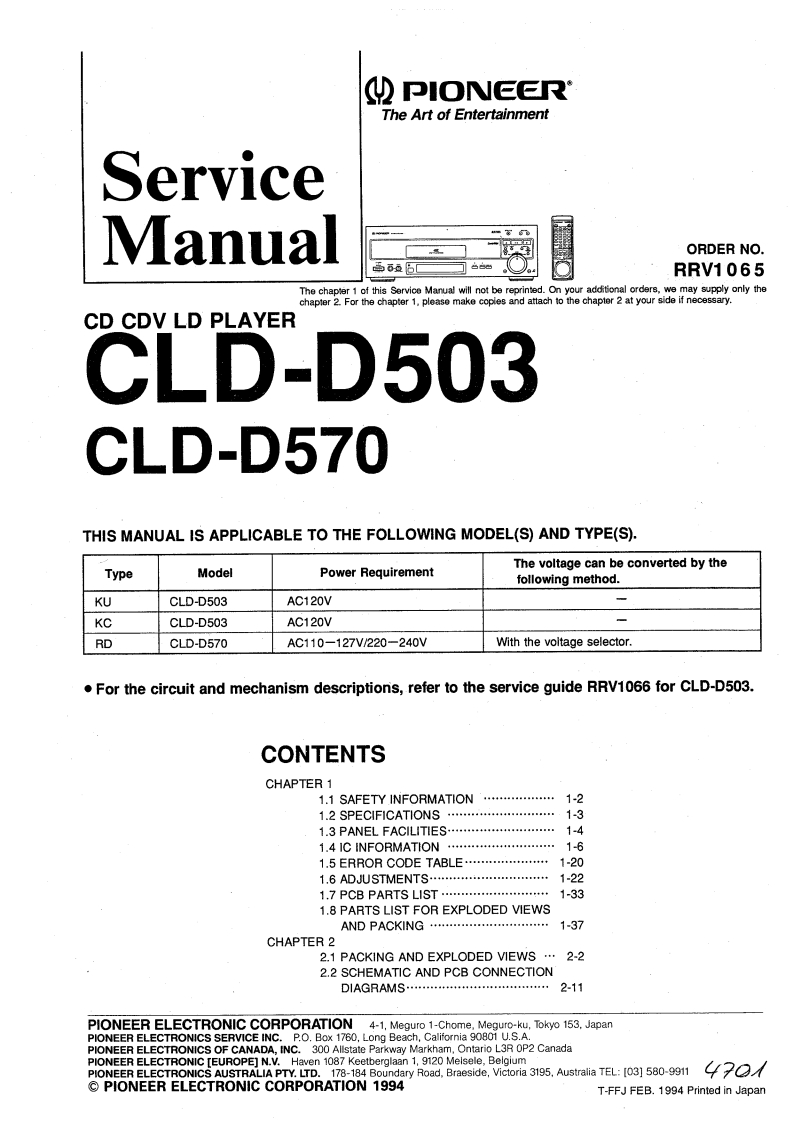

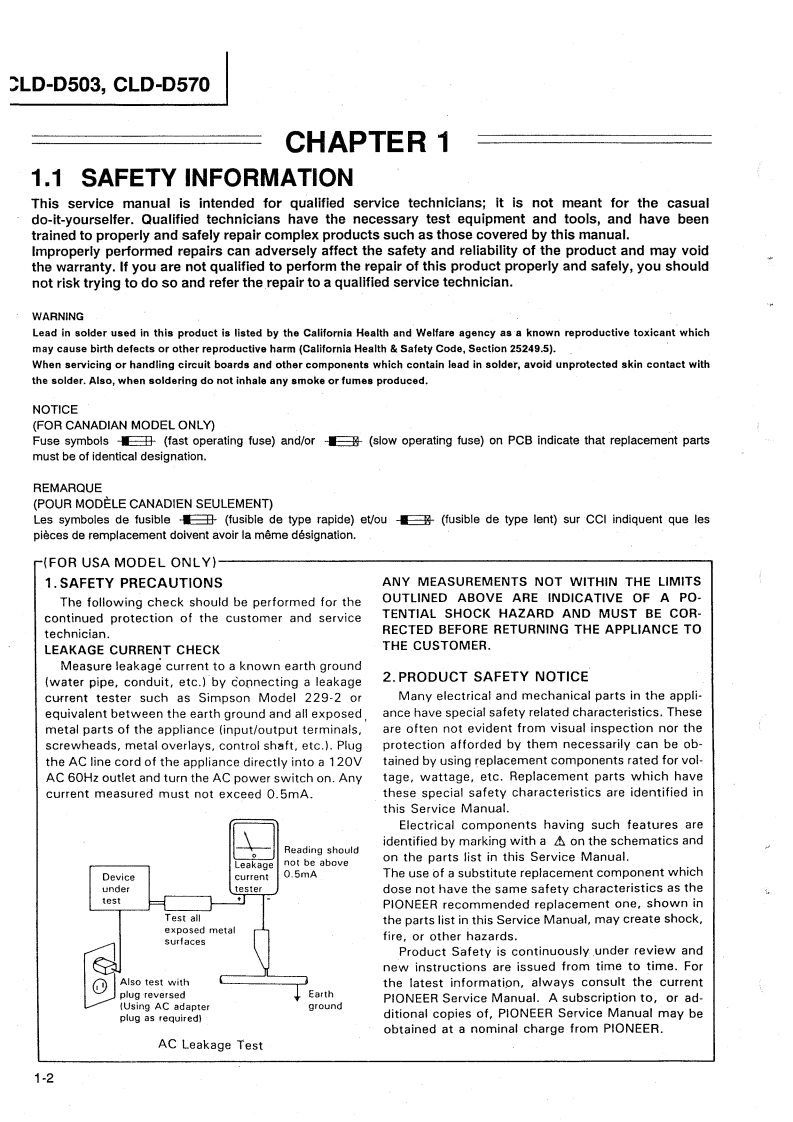

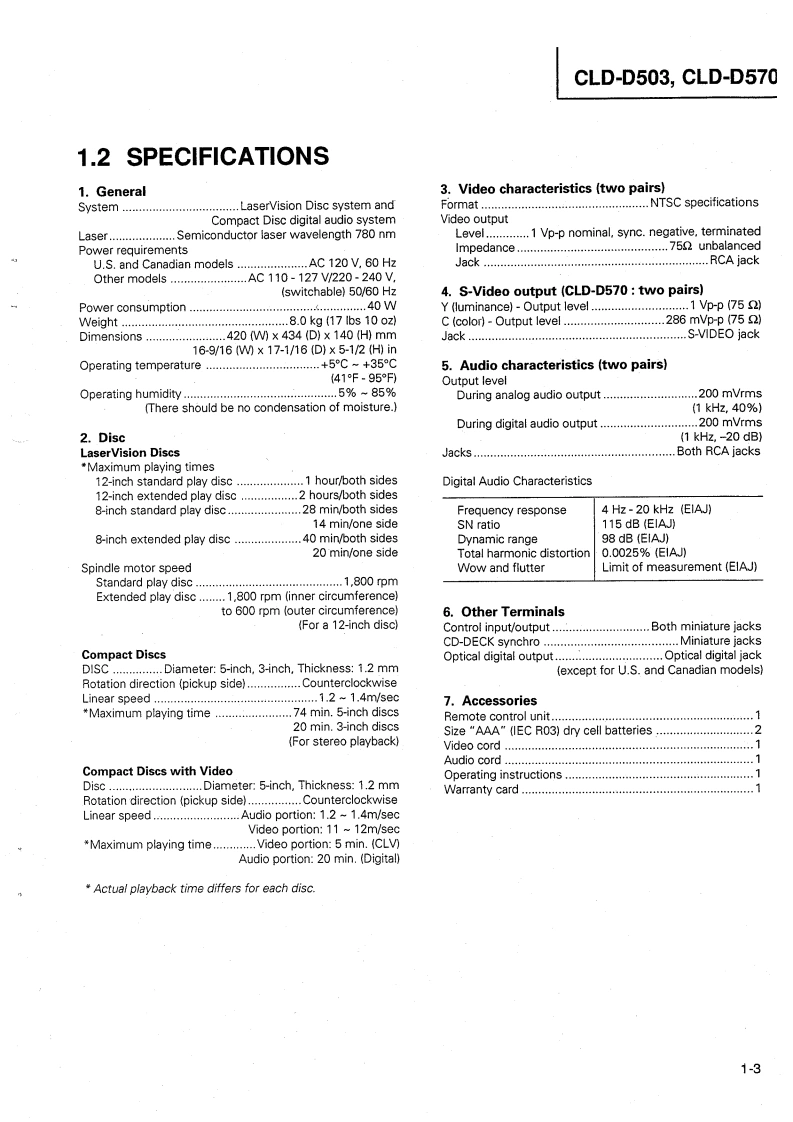

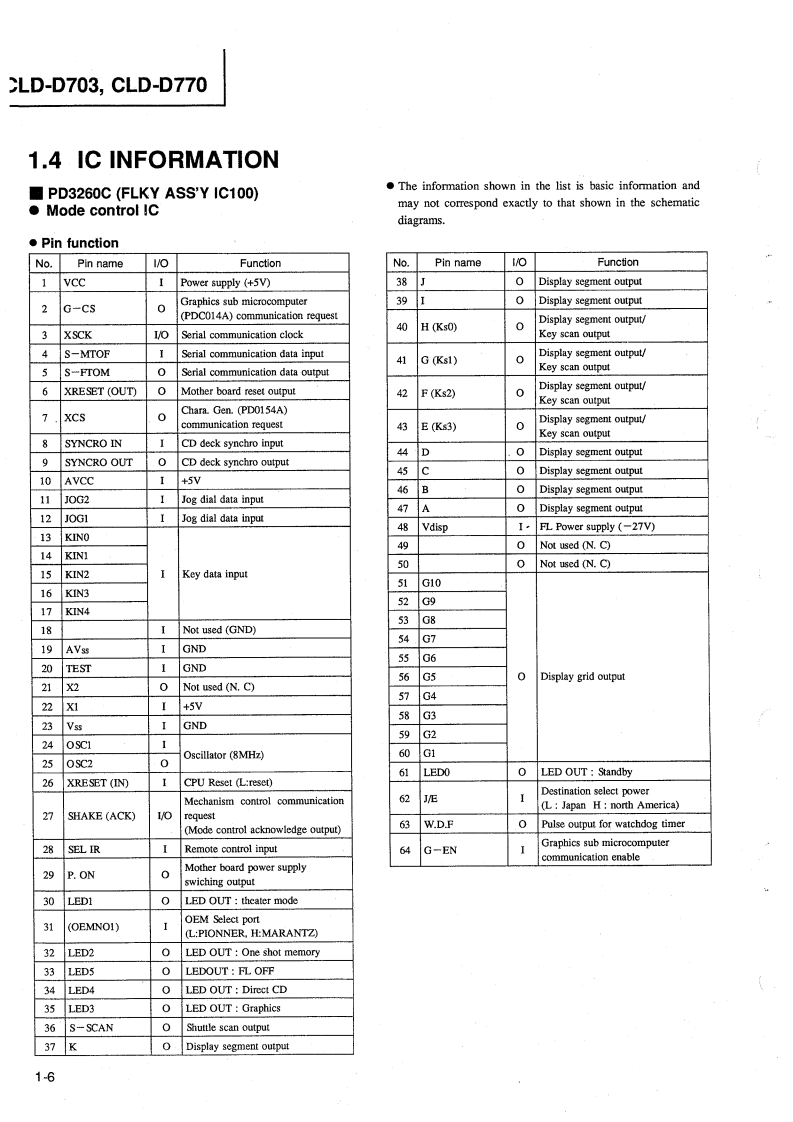

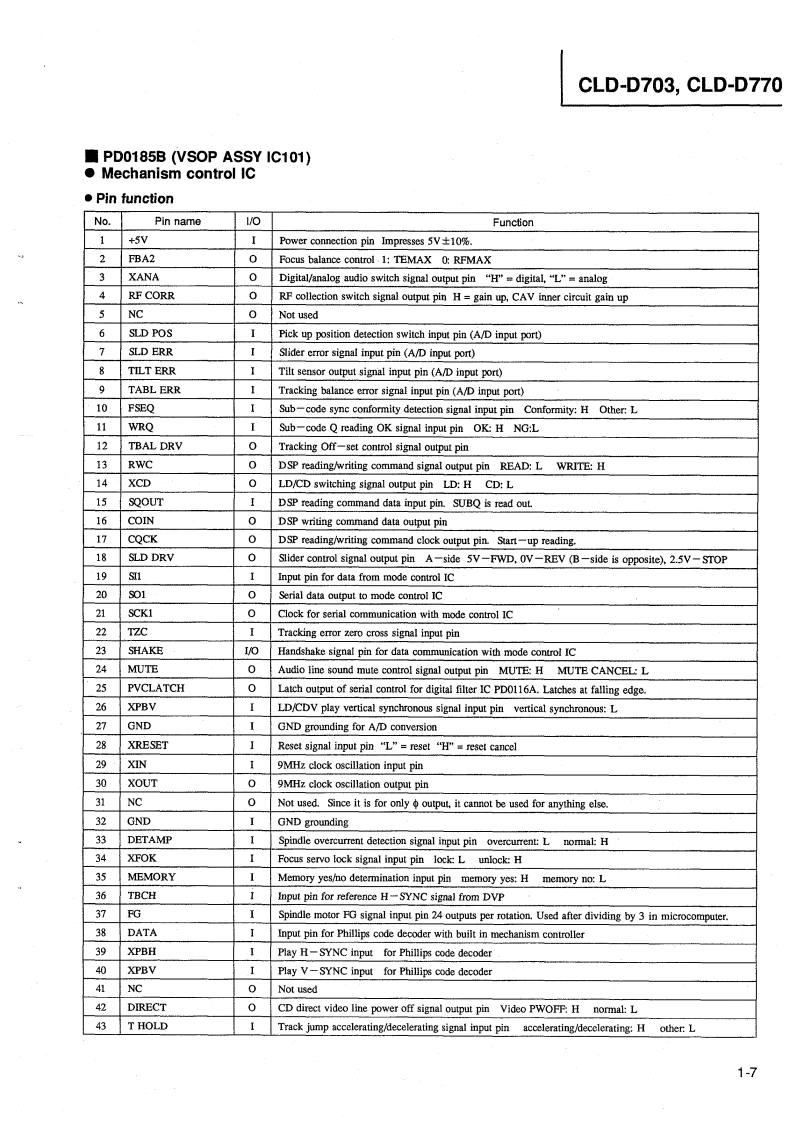

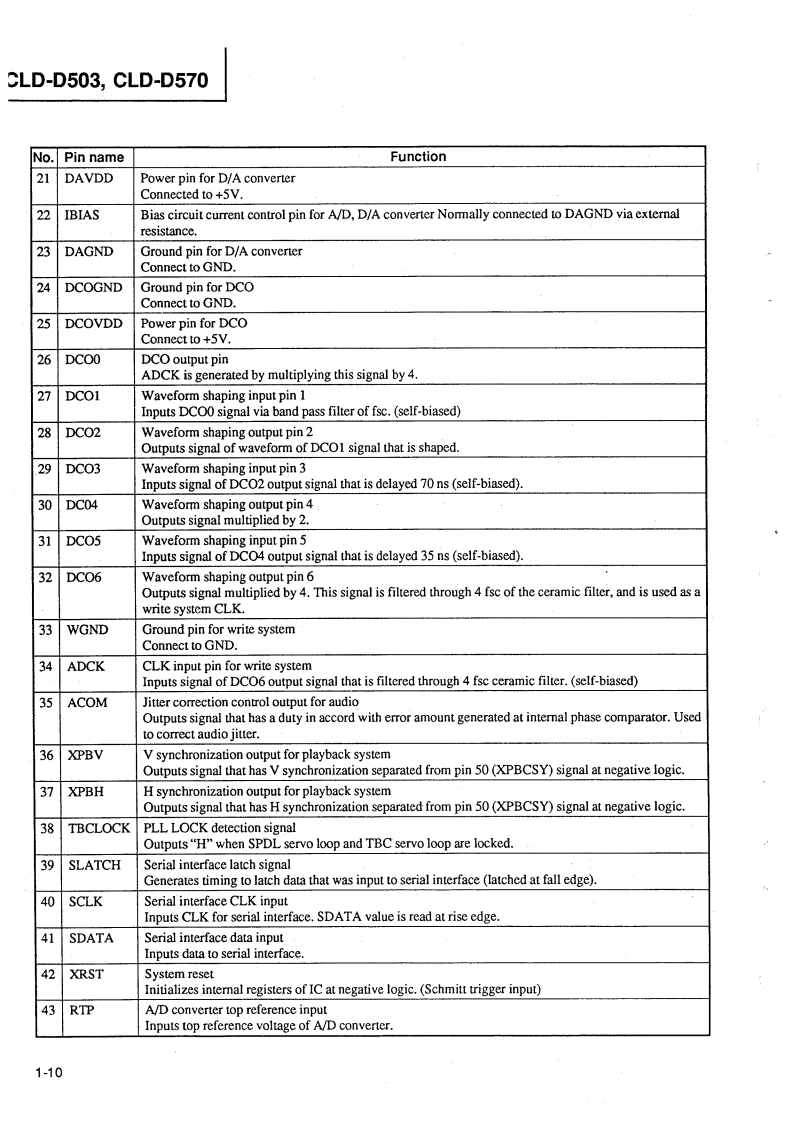

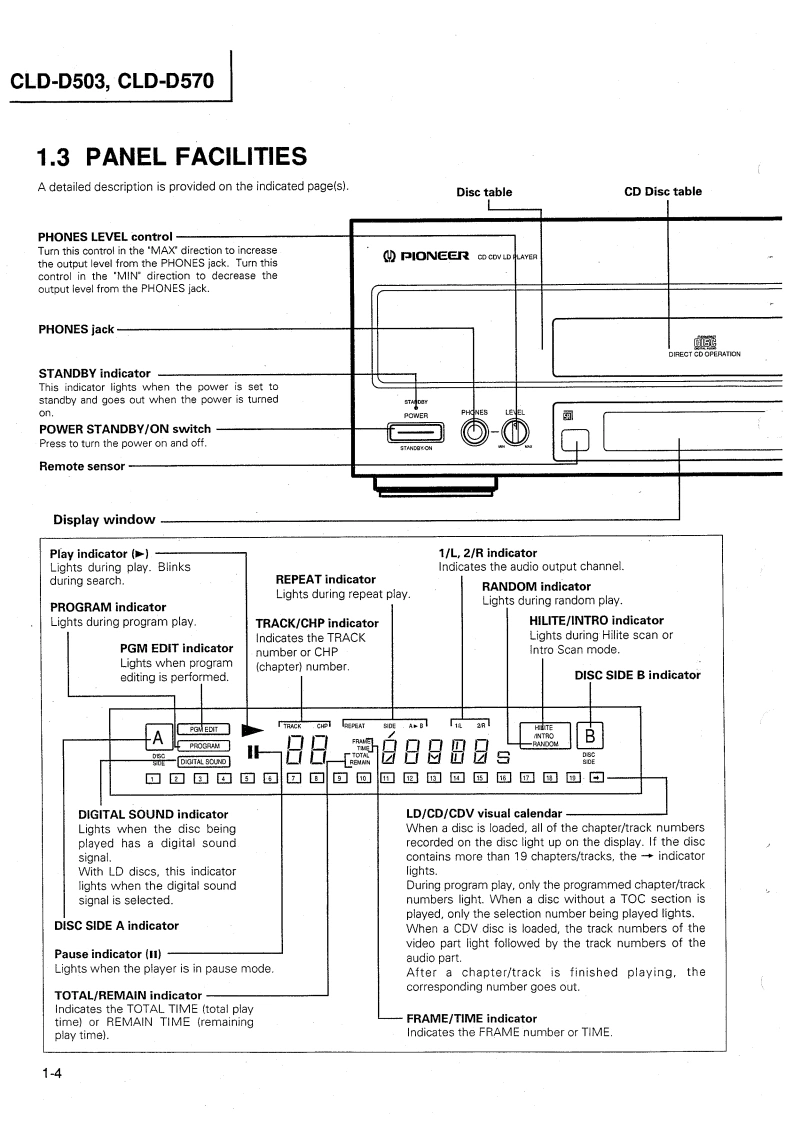

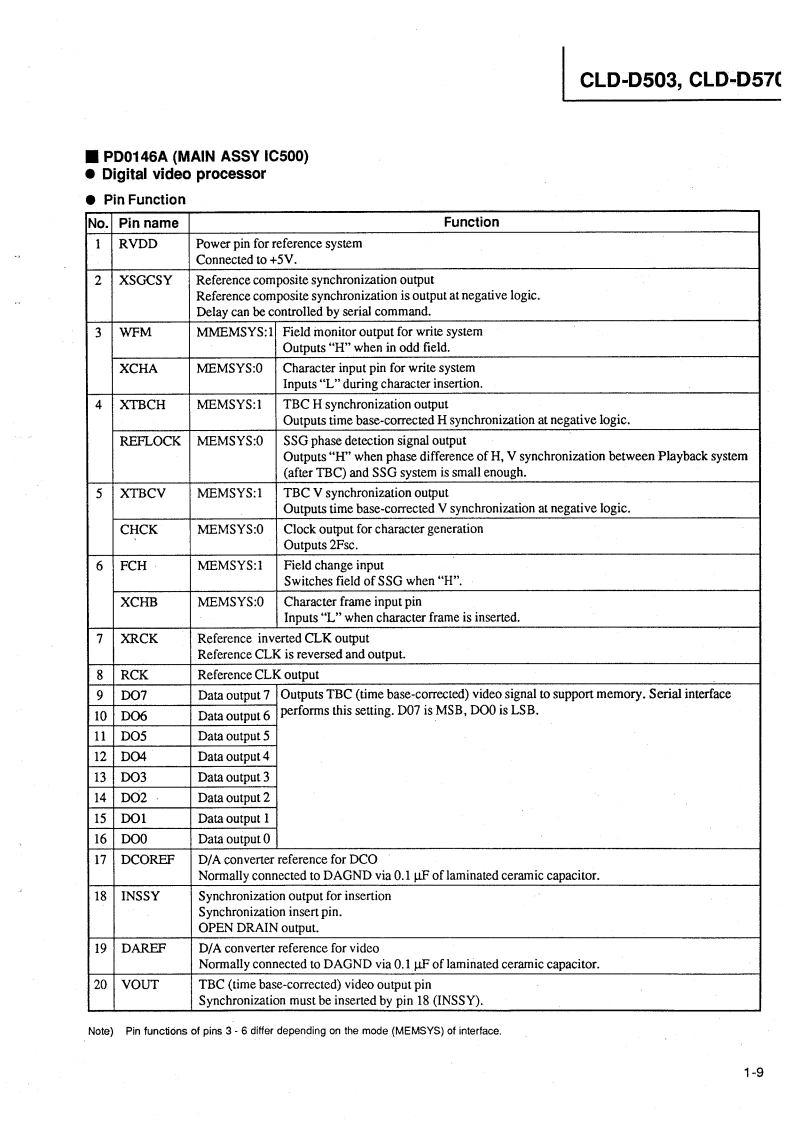

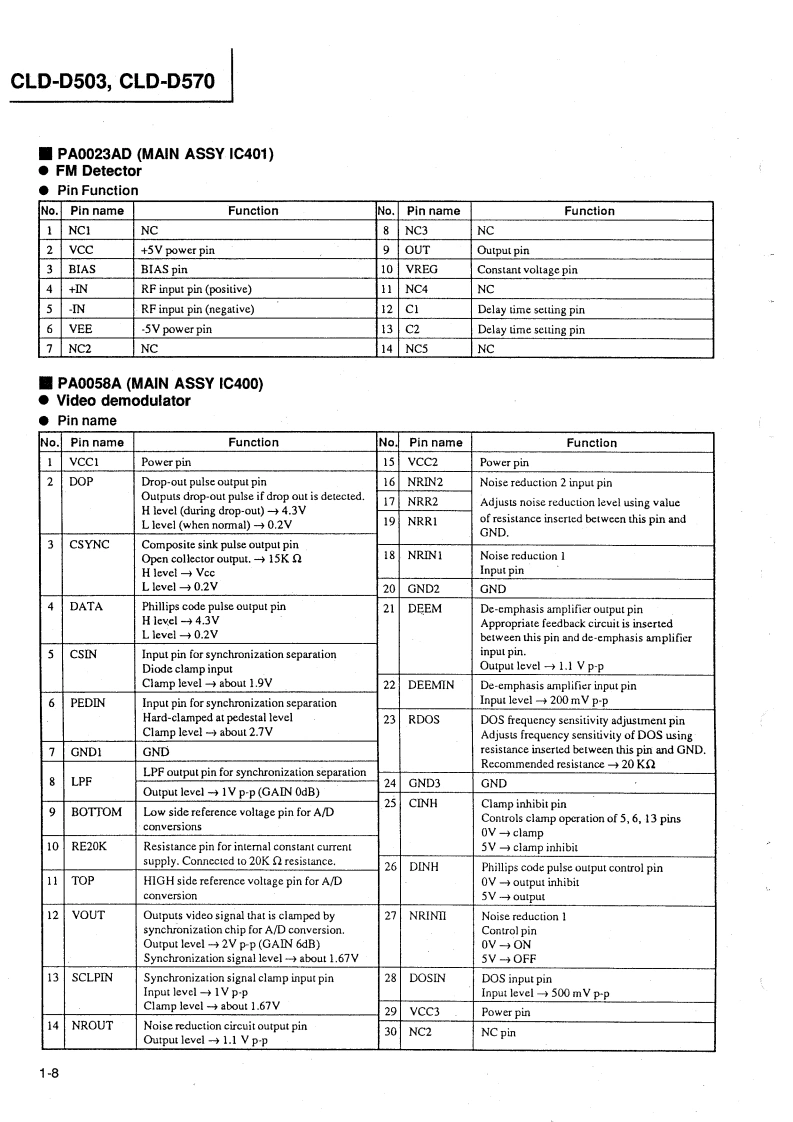

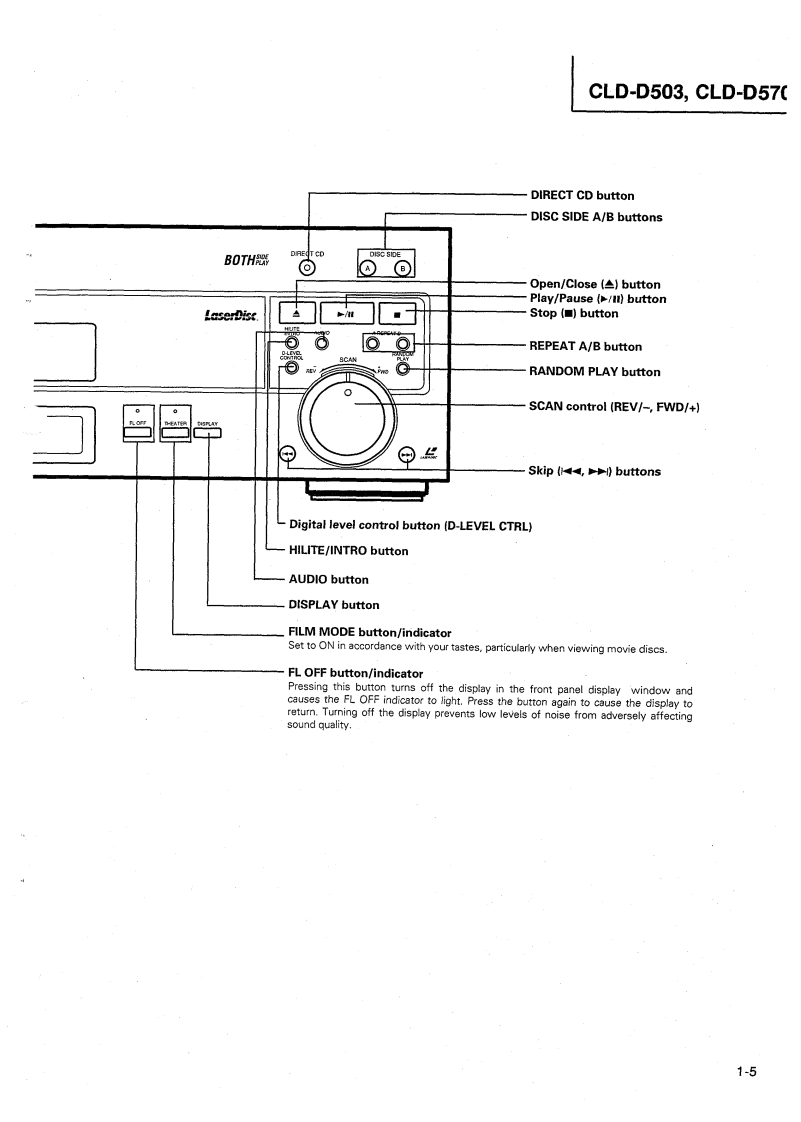

②PIONEER:The Art of EntertainmentServiceManualORDER NO.RRV1065The chapter 1 of this Service Manual will not be reprinted.On your additional orders,we may supply only thechapter 2.For the chapter 1.please make coples and attach to the chapter 2 at your side if necessary.CD CDV LD PLAYERCLD-D503CLD-D570THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S)AND TYPE(S).The voltage can be converted by theTypeModelPower Requirementfollowing method.KUCLD-D503AC120V一KCCLD-D503AC120V一RDCLD-D570AC110-127V/220-240VWith the voltage selector.For the circuit and mechanism descriptions,refer to the service guide RRV1066 for CLD-D503.CONTENTSCHAPTER 11.1 SAFETY INFORMATION.....1-21.2 SPECIFICATIONS…1-31.3 PANEL FACILITIES…1-41.41 C INFORMATION+4…1-61.5 ERROR CODE TABLE...1-201.6 ADJUSTMENTS..1-221.7 PCB PARTS LIST......1-331.8 PARTS LIST FOR EXPLODED VIEWSAND PACKING+…1-37CHAPTER 22.1 PACKING AND EXPLODED VIEWS 2-22.2 SCHEMATIC AND PCB CONNECTIONDIAGRAMS+44…2-11PIONEER ELECTRONIC CORPORATION 4-1,Meguro 1-Chome,Meguro-ku,Tokyo 153.JapanPIONEER ELECTRONICS SERVICE INC.P.O.Box 1760,Long Beach,California 90801 U.S.APIONEER ELECTRONICS OF CANADA,INC.300 Allstate Parkway Markham,Ontario L3R OP2 CanadaPIONEER ELECTRONIC [EUROPE]N.V.Haven 1087 Keetberglaan 1,9120 Melsele,BelgiumPIONEER ELECTRONICS AUSTRALIA PTY.LTD.178-184 Boundary Road,Braeside,Victoria 3195,Australia TEL:[03]580-9911PIONEER ELECTRONIC CORPORATION 1994T-FFJ FEB.1994 Printed in Japan
