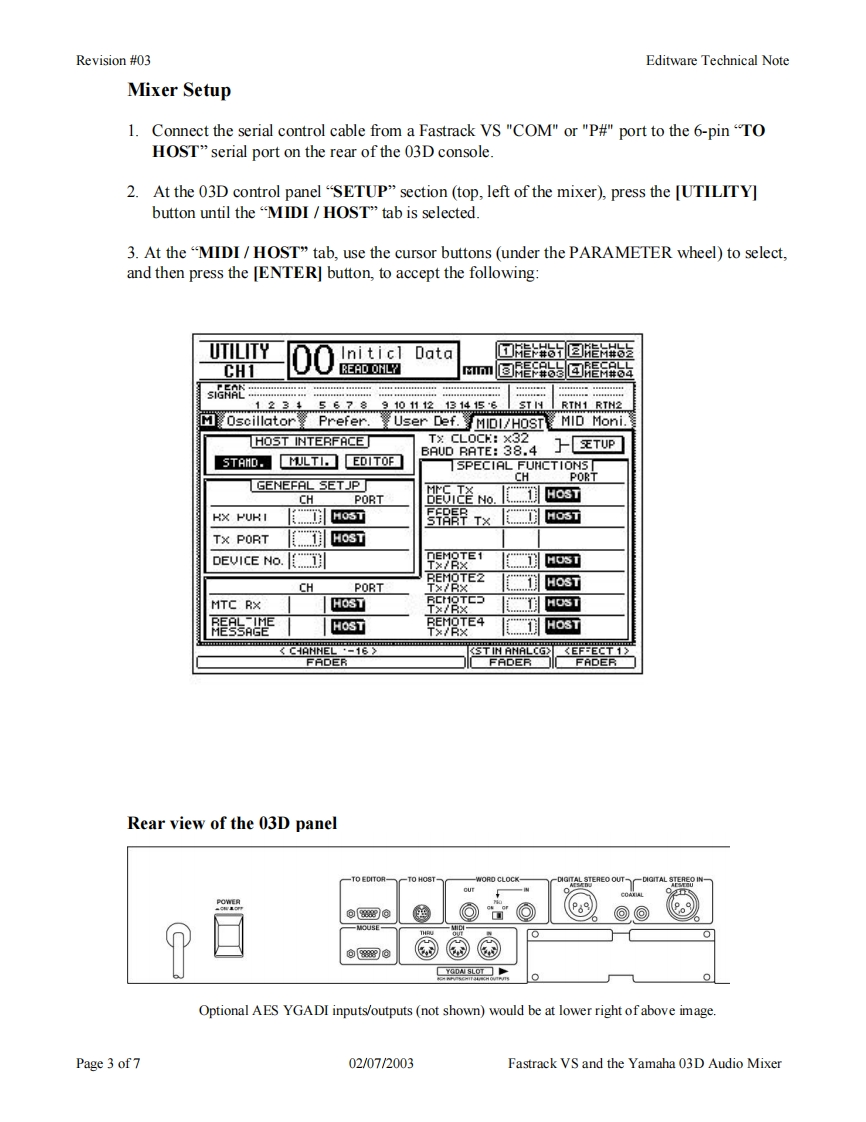

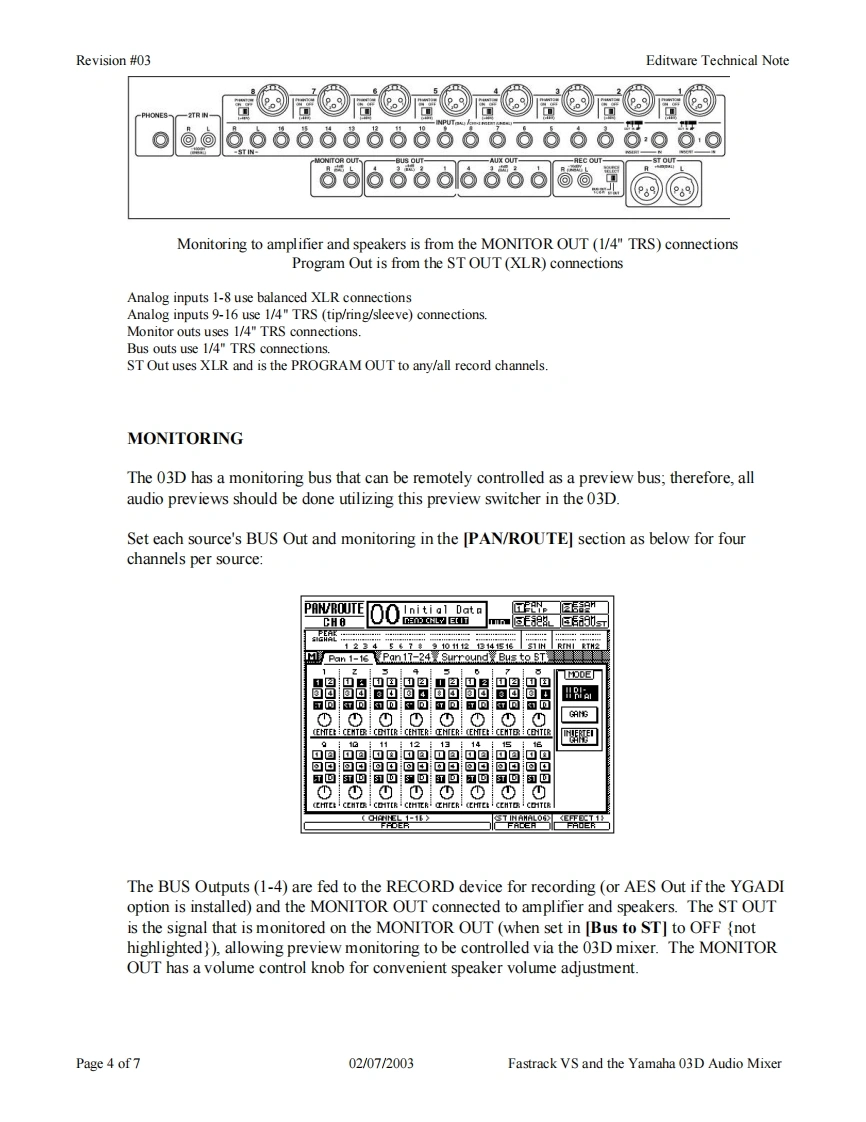

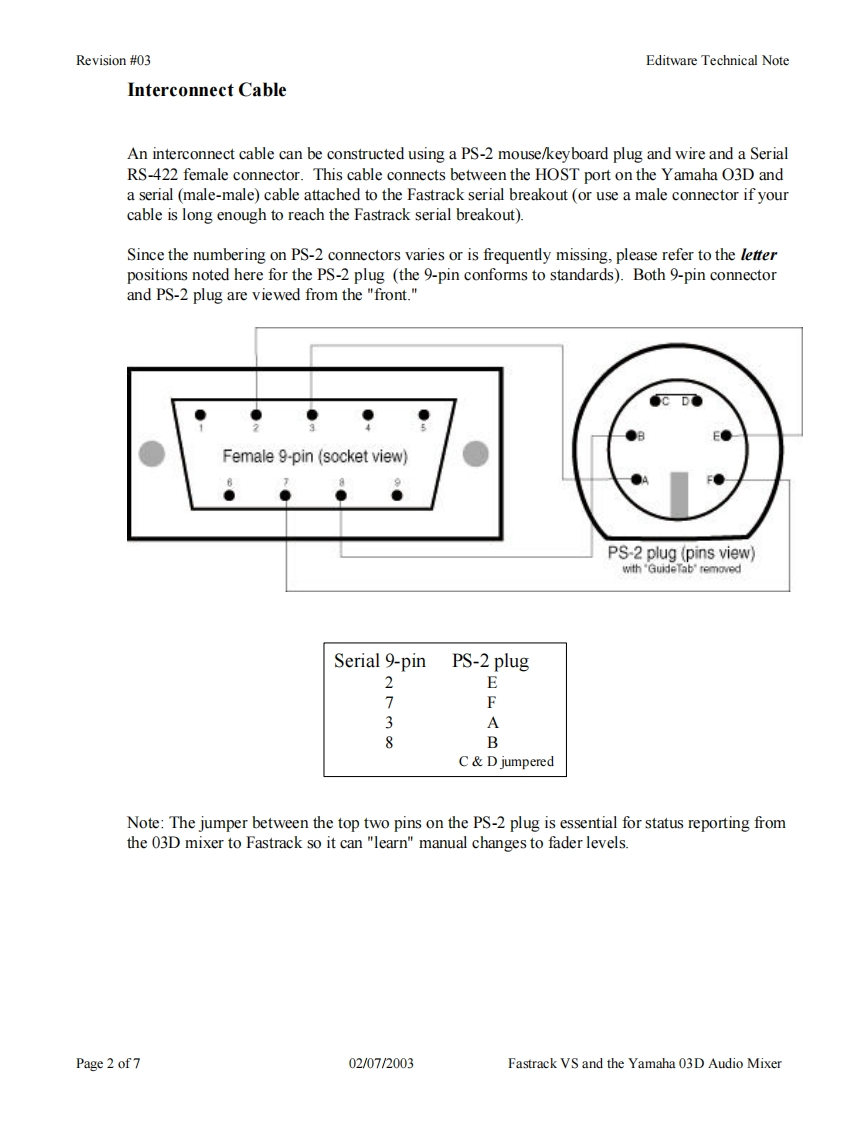

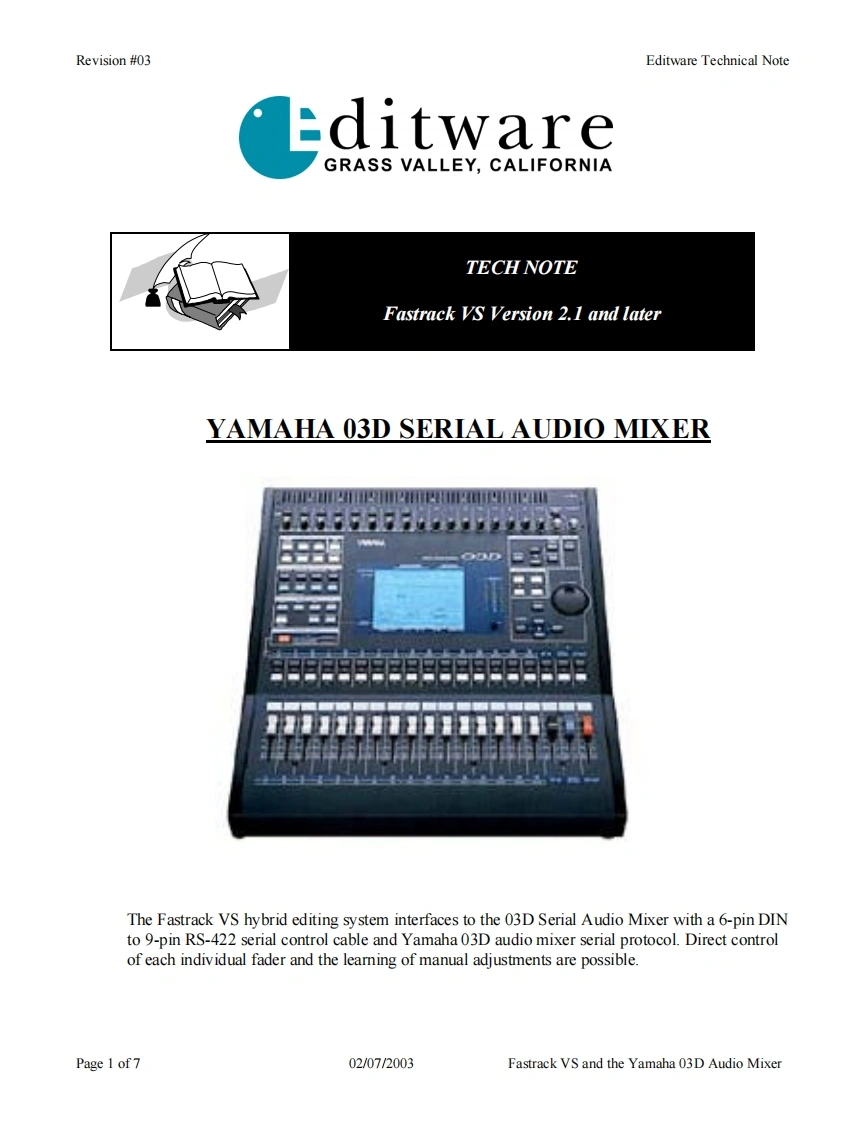

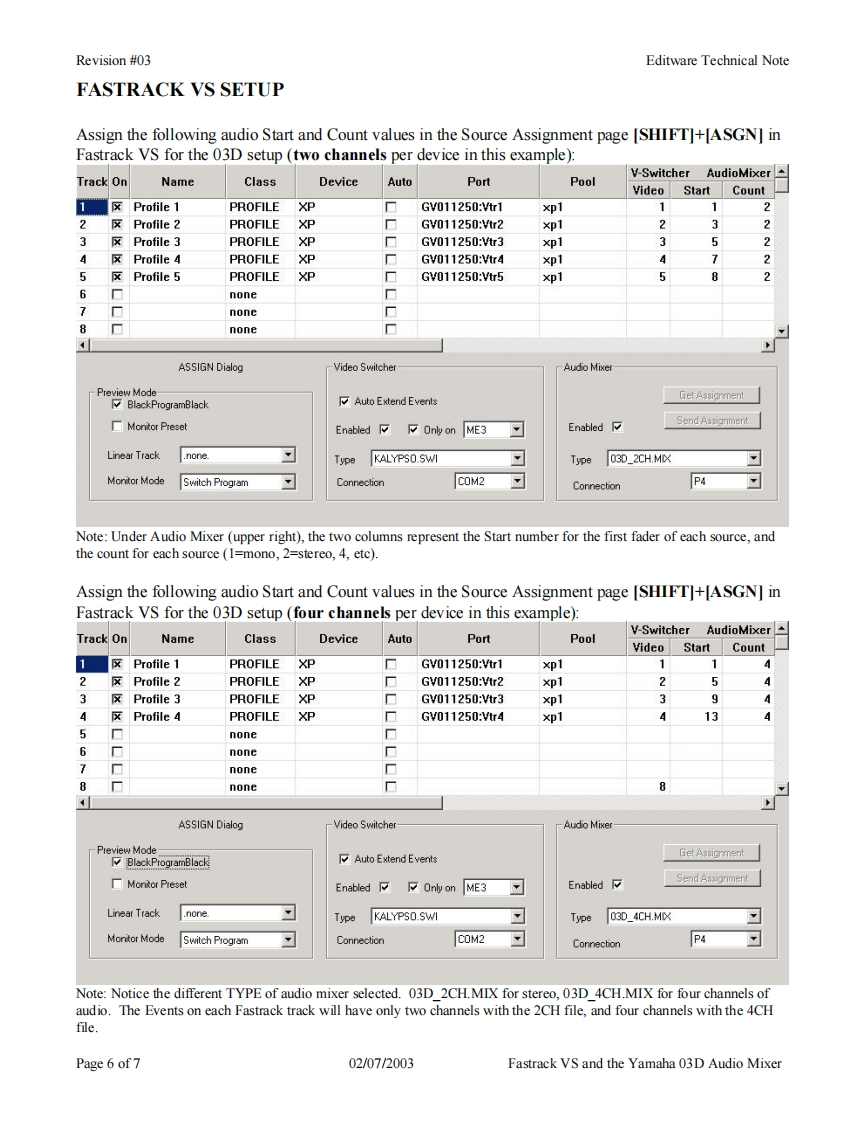

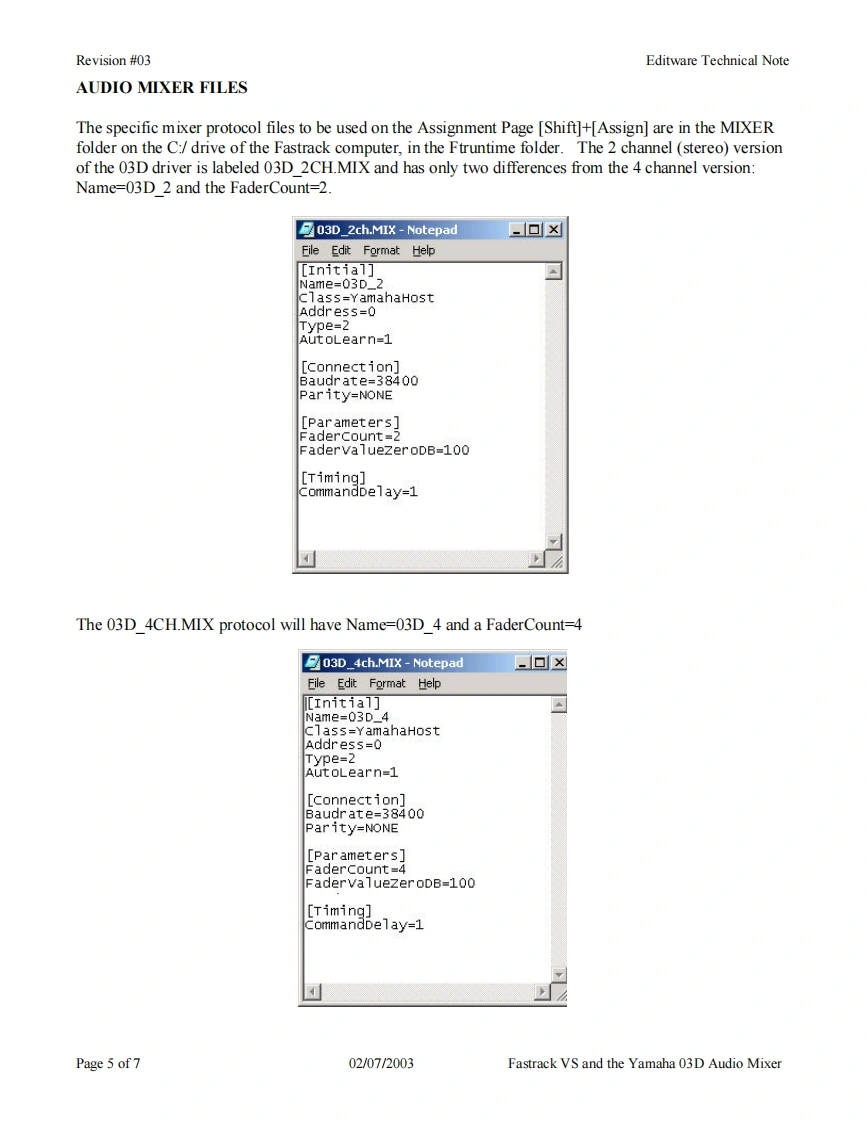

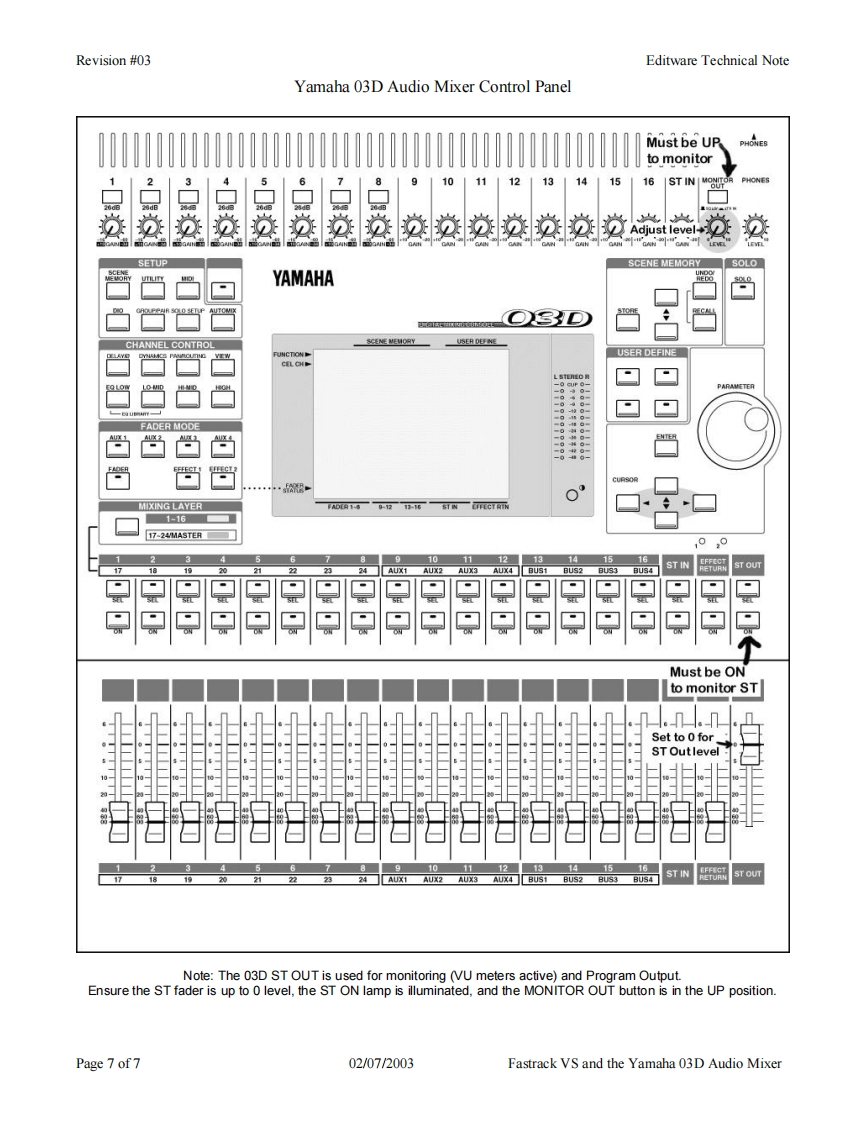

Revision #03Editware Technical NoteEditwareGRASS VALLEY,CALIFORNIATECH NOTEFastrack VS Version 2.1 and laterYAMAHA 03D SERIAL AUDIO MIXER用阳The Fastrack VS hybrid editing system interfaces to the 03D Serial Audio Mixer with a 6-pin DINto 9-pin RS-422 serial control cable and Yamaha 03D audio mixer serial protocol.Direct controlof each individual fader and the leaming of manual adjustments are possible.Page 1 of702/07/2003Fastrack VS and the Yamaha 03D Audio Mixer
