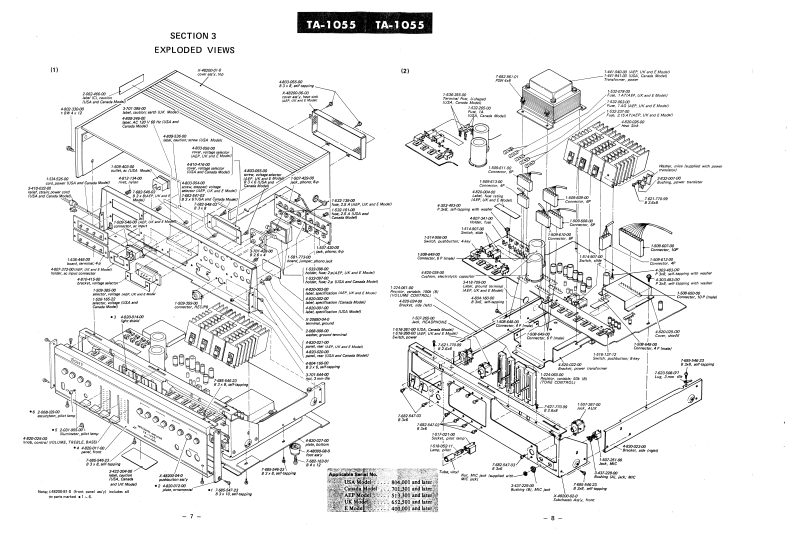

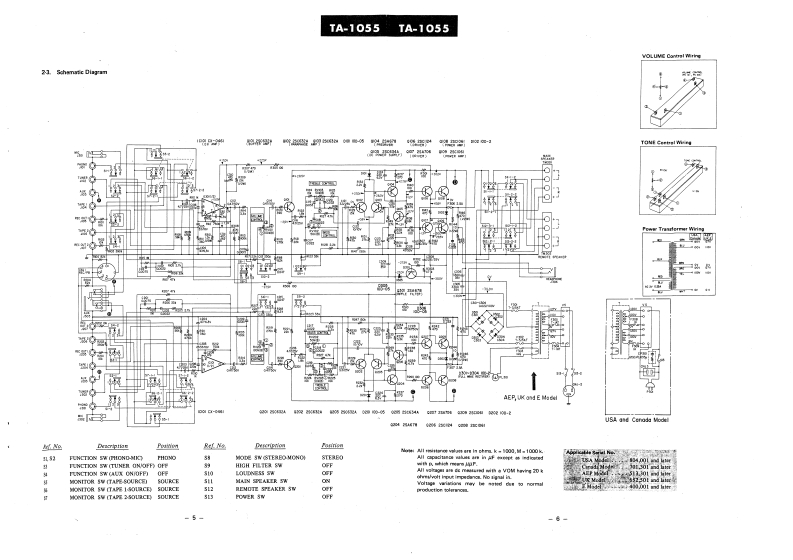

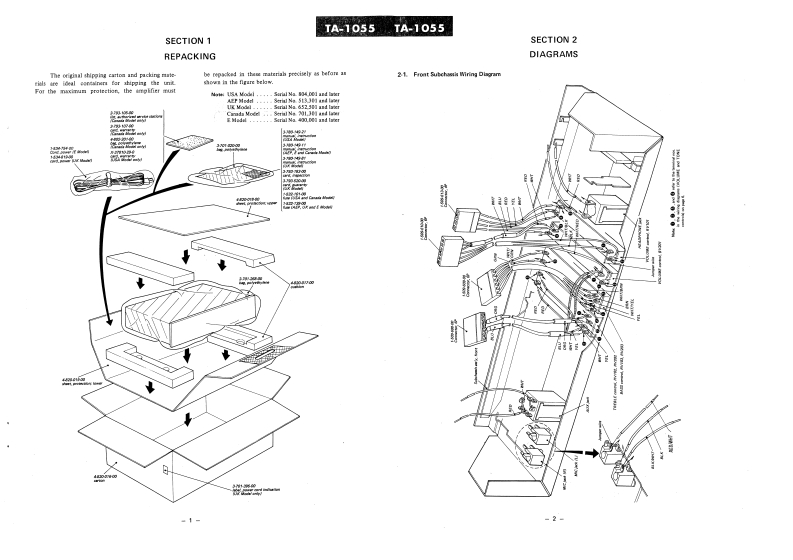

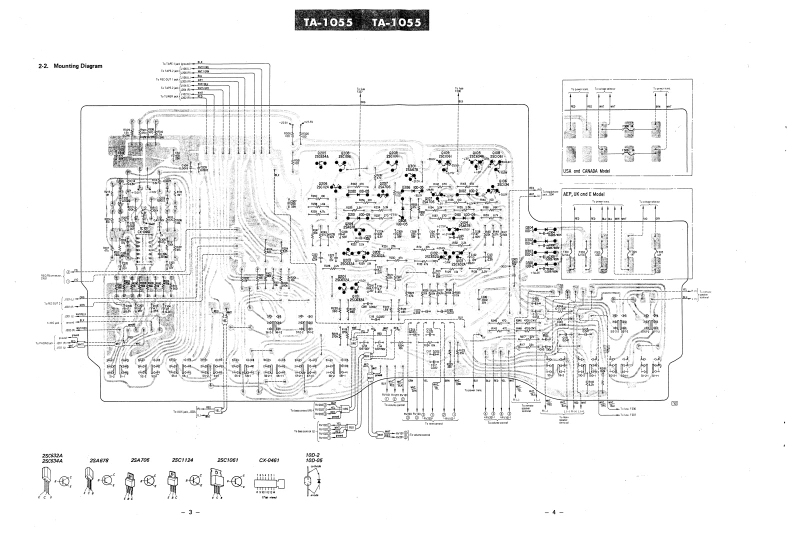

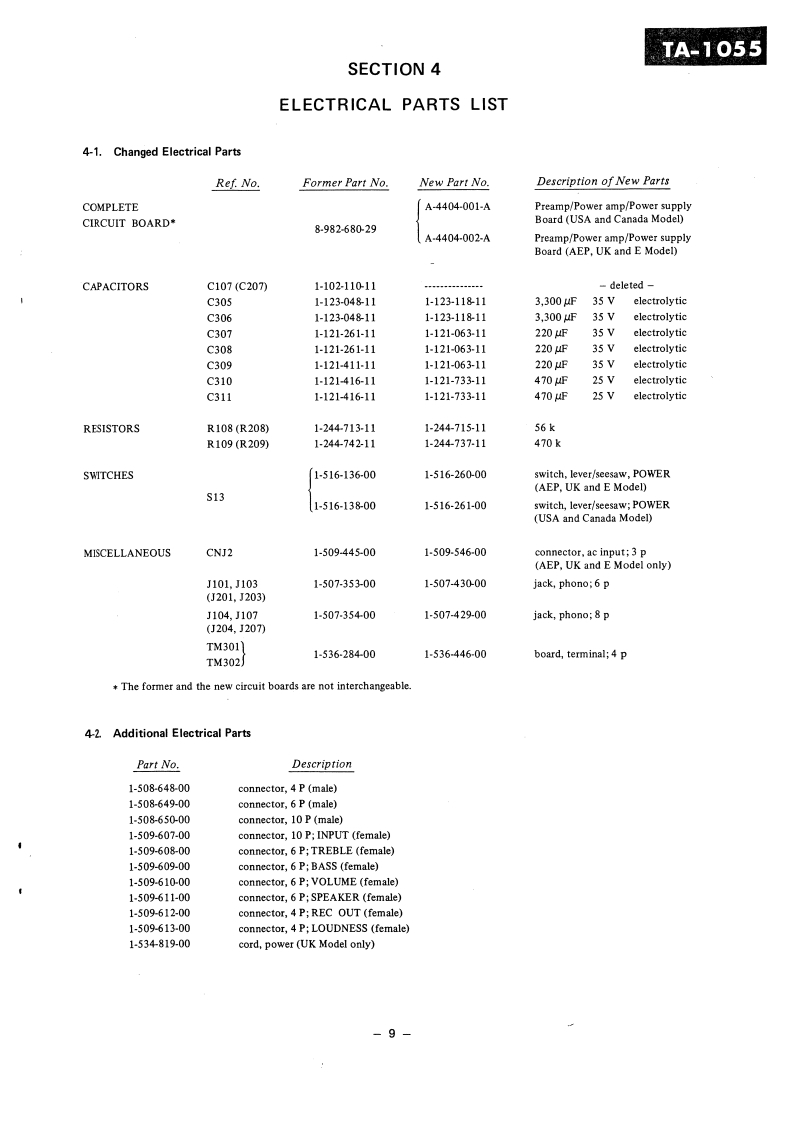

INTEGRATED STEREOAMPLIFIERTA-1055US,Canadian,AEP,UKand E ModelSUPPLEMENTNo.1November,1973Subject:Modification of TA-1055TA-1055 (USA,Canada,AEP,and UK Model)has been modified.This supplementcontains revised.diagrams and the changed and additional electrical parts list.File this supplement with TA-1055 Service Manual(USA,Canada,AEP,UK andE Model).Note:E Model applies to this supplement from the sets with the serial number 400,001The existing TA-1055 Service Manual (USA,Canada,AEP,UK and E Model)isvalid except the followings:Page*SectionDescription93REPACKING104-1Front Subchassis Wiring Diagram114-2Mounting Diagram134.3Schematic Diagram165EXPLODED VIEWS (1)175EXPLODED VIEWS(2)186ELECTRICAL PARTS LISTAPages in TA-1055 Service Manual (USA,Canada,AEP,UKand E Model)Parts which are listed in TA-1055 Service Manual but notmentioned in this supplement remain valid.Applicable Serial Number:USA Model...........No.804,001 and laterCanada Model.........No.701,301 and laterAEP Model...·····No.513,301 and laterUK Model.··No.652,501 and laterE Model.·No.400,001 and laterSONYSERVICE MANUAL
