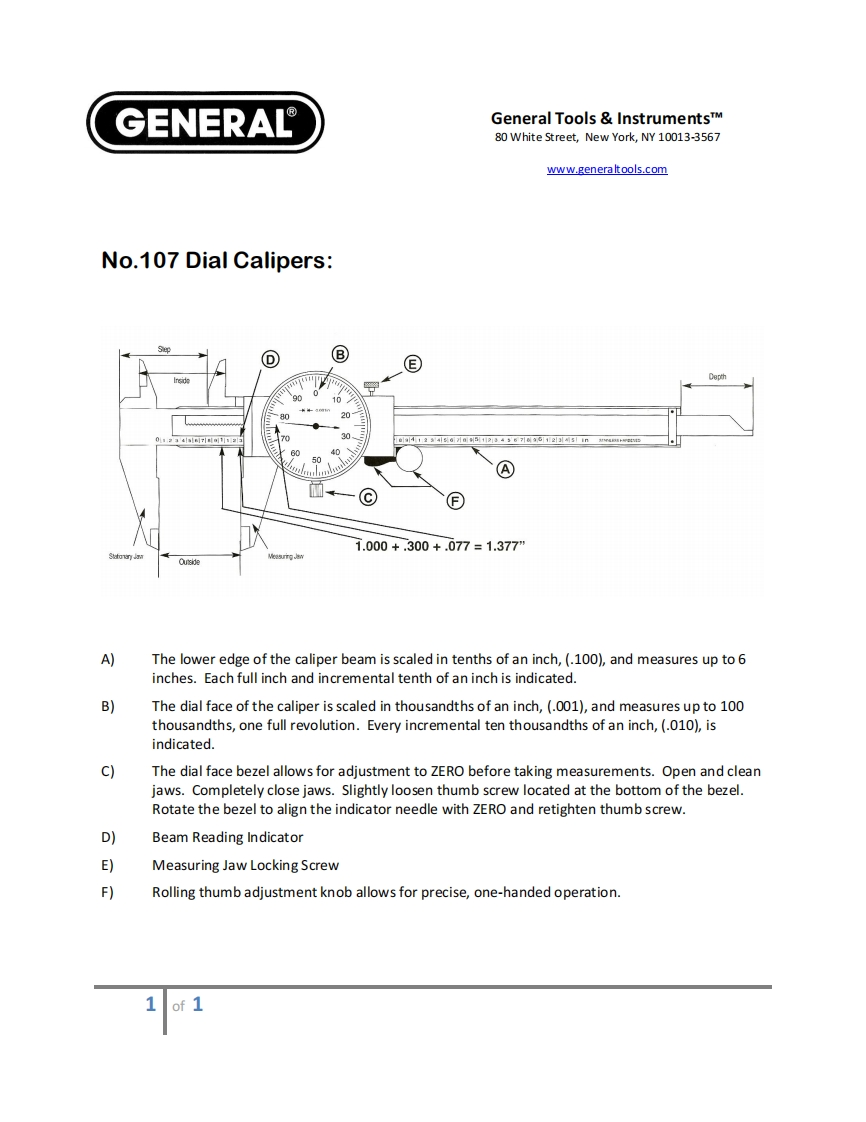

GENERALGeneral Tools InstrumentsTM80 White Street,New York,NY 10013-3567www.generaltools.comNo.107 Dial Calipers:⑧90201012341a3041247制51234673G1235n1.000+.300+.077=1.3770s块A)The lower edge of the caliper beam is scaled in tenths of an inch,(.100),and measures up to 6inches.Each full inch and incremental tenth of an inch is indicated.B)The dial face of the caliper is scaled in thousandths of an inch,(.001),and measures up to 100thousandths,one full revolution.Every incremental ten thousandths of an inch,(.010),isindicated.C)The dial face bezel allows for adjustment to ZERO before taking measurements.Open and cleanjaws.Completely close jaws.Slightly loosen thumb screw located at the bottom of the bezel.Rotate the bezel to align the indicator needle with ZERO and retighten thumb screw.D)Beam Reading IndicatorE)Measuring Jaw Locking ScrewF)Rolling thumb adjustment knob allows for precise,one-handed operation.
