obd2-wifi-使用说明书手册

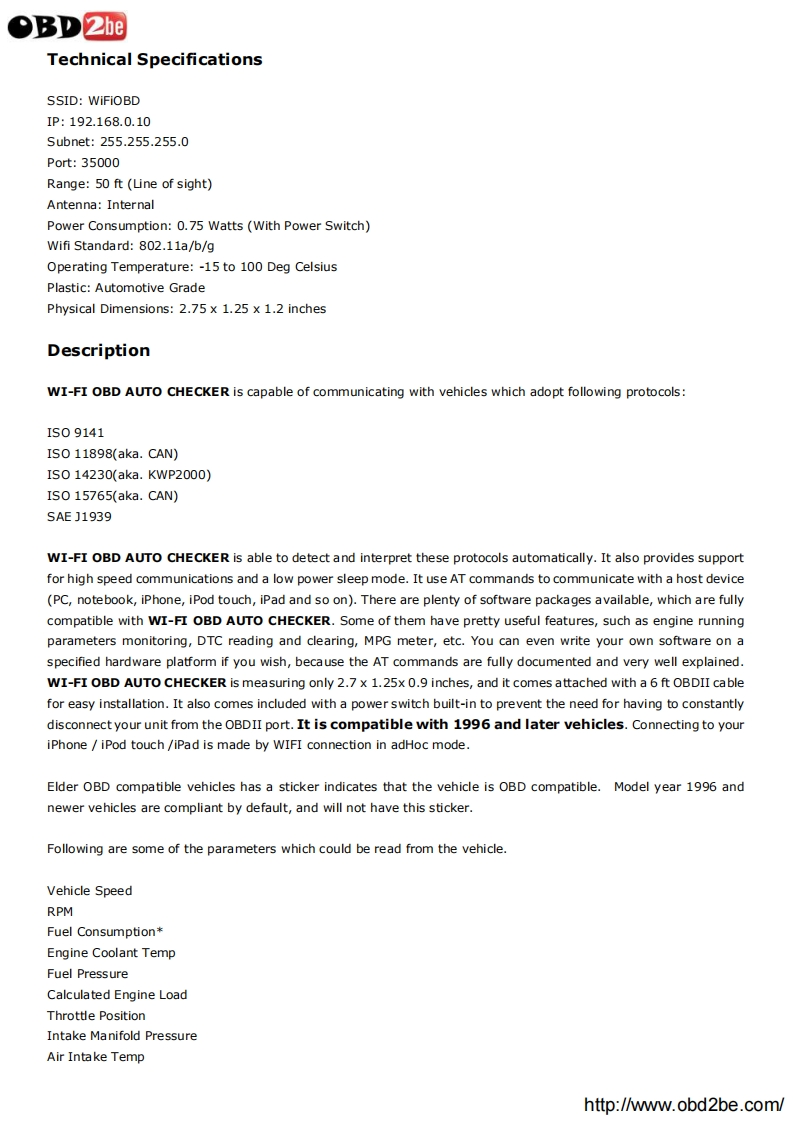

OBDZheTechnical SpecificationsSSID:WiFiOBDIP:192.168.0.10Subnet:255.255.255.0Port:35000Range:50 ft (Line of sight)Antenna:InternalPower Consumption:0.75 Watts (With Power Switch)Wifi Standard:802.11a/b/gOperating Temperature:-15 to 100 Deg CelsiusPlastic:Automotive GradePhysical Dimensions:2.75×1.25×1.2 inchesDescriptionWI-FI OBD AUTO CHECKER is capable of communicating with vehicles which adopt following protocols:IS09141ISO 11898(aka.CAN)IS014230(aka.KWP2000)ISO 15765(aka.CAN)SAE J1939WI-FI OBD AUTO CHECKER is able to detect and interpret these protocols automatically.It also provides supportfor high speed communications and a low power sleep mode.It use AT commands to communicate with a host device(PC,notebook,iPhone,iPod touch,iPad and so on).There are plenty of software packages available,which are fullycompatible with WI-FI OBD AUTO CHECKER.Some of them have pretty useful features,such as engine runningparameters monitoring,DTC reading and clearing,MPG meter,etc.You can even write your own software on aspecified hardware platform if you wish,because the AT commands are fully documented and very well explained.WI-FI OBD AUTO CHECKER is measuring only 2.7 x 1.25x 0.9 inches,and it comes attached with a 6 ft OBDII cablefor easy installation.It also comes included with a power switch built-in to prevent the need for having to constantlydisconnect your unit from the OBDII port.It is compatible with 1996 and later vehicles.Connecting to youriPhone iPod touch /iPad is made by WIFI connection in adHoc mode.Elder OBD compatible vehicles has a sticker indicates that the vehicle is OBD compatible.Model year 1996 andnewer vehicles are compliant by default,and will not have this sticker.Following are some of the parameters which could be read from the vehicleVehicle SpeedRPMFuel Consumption*Engine Coolant TempFuel PressureCalculated Engine LoadThrottle PositionIntake Manifold PressureAir Intake Temphttp://www.obd2be.com/
