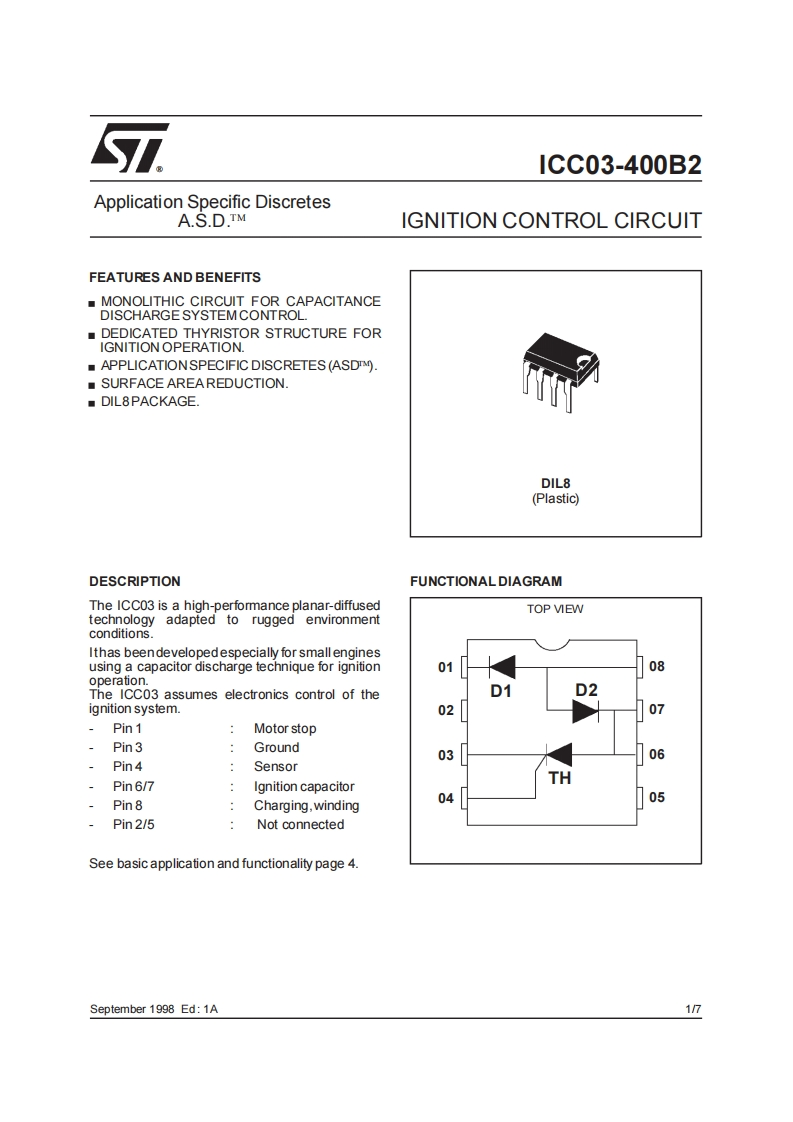

1CC03-400B2Application Specific DiscretesA.S.D.TMIGNITION CONTROL CIRCUITFEATURES AND BENEFITSMONOLITHIC CIRCUIT FOR CAPACITANCEDISCHARGE SYSTEMCONTROL.DEDICATED THYRISTOR STRUCTURE FORIGNITION OPERATION.APPLICATIONSPECIFIC DISCRETES(ASDTM).SURFACE AREAREDUCTION.■DIL8 PACKAGE.DIL8(Plastic)DESCRIPTIONFUNCTIONALDIAGRAMThe ICC03 is a high-performance planar-diffusedTOP VIEWtechnology adapted to rugged environmentconditions.Ithas beendevelopedespecially for small enginesusing a capacitor discharge technique for ignition0108operation.The ICC03 assumes electronics control of theD1D2ignition system.0207Pin1Motor stopPin3Ground0306Pin4SensorPin 6/7Ignition capacitorTHPin 804Charging,winding05Pin 2/5Not connectedSee basic application and functionality page 4.September 1998 Ed:1A17
