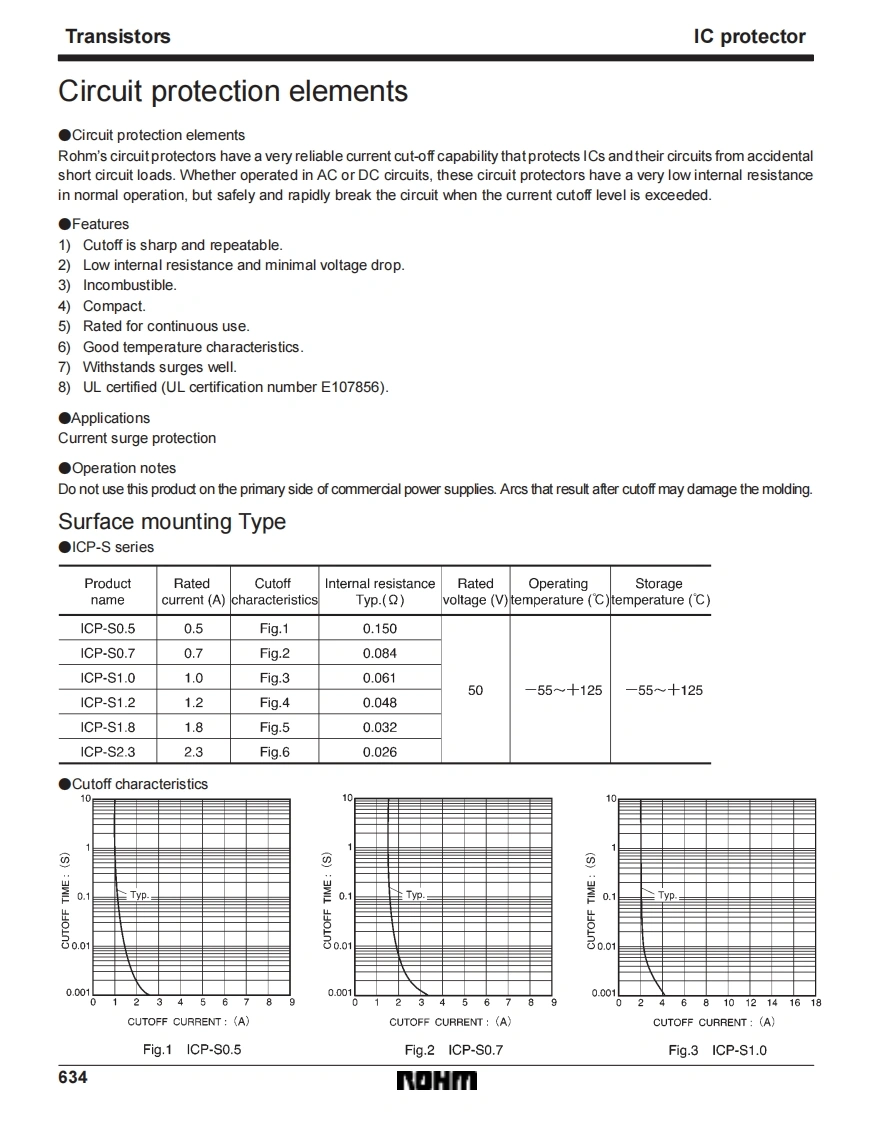

TransistorsIC protectorCircuit protection elementsCircuit protection elementsRohm's circuit protectors have a very reliable current cut-off capability that protects ICs and their circuits from accidentalshort circuit loads.Whether operated in AC or DC circuits,these circuit protectors have a very low internal resistancein normal operation,but safely and rapidly break the circuit when the current cutoff level is exceeded.●Features1)Cutoff is sharp and repeatable2)Low internal resistance and minimal voltage drop.3)Incombustible.4)Compact.5)Rated for continuous use.6)Good temperature characteristics.7)Withstands surges well.8)UL certified(UL certification number E107856).●ApplicationsCurrent surge protection●Operation notesDo not use this product on the primary side of commercial power supplies.Arcs that result after cutoff may damage the molding.Surface mounting Type●ICP.S seriesProductRatedCutoffInternal resistanceRatedOperatingStoragenamecurrent (A)characteristicsTyp.(Q)voltage (V)temperature (C)temperature (C)1CP-S0.50.5Fig.10.150ICP-S0.70.7Fig.20.084ICP-S1.01.0Fig.30.06150-55+125-55~+1251CP.S1.21.2Fig.40.048ICP-S1.81.8Fig.50.0321CP.S2.32.3Fig.60.026Cutoff characteristics101010⑤0.Typ.0.Typ.0.YD.0.000.0010.001045681012141618CUTOFF CURRENT:(A)CUTOFF CURRENT (A)CUTOFF CURRENT:(A)Fig.1 ICP-S0.5Fig.2 ICP-S0.7Fig.3 ICP-S1.0634ROHm
