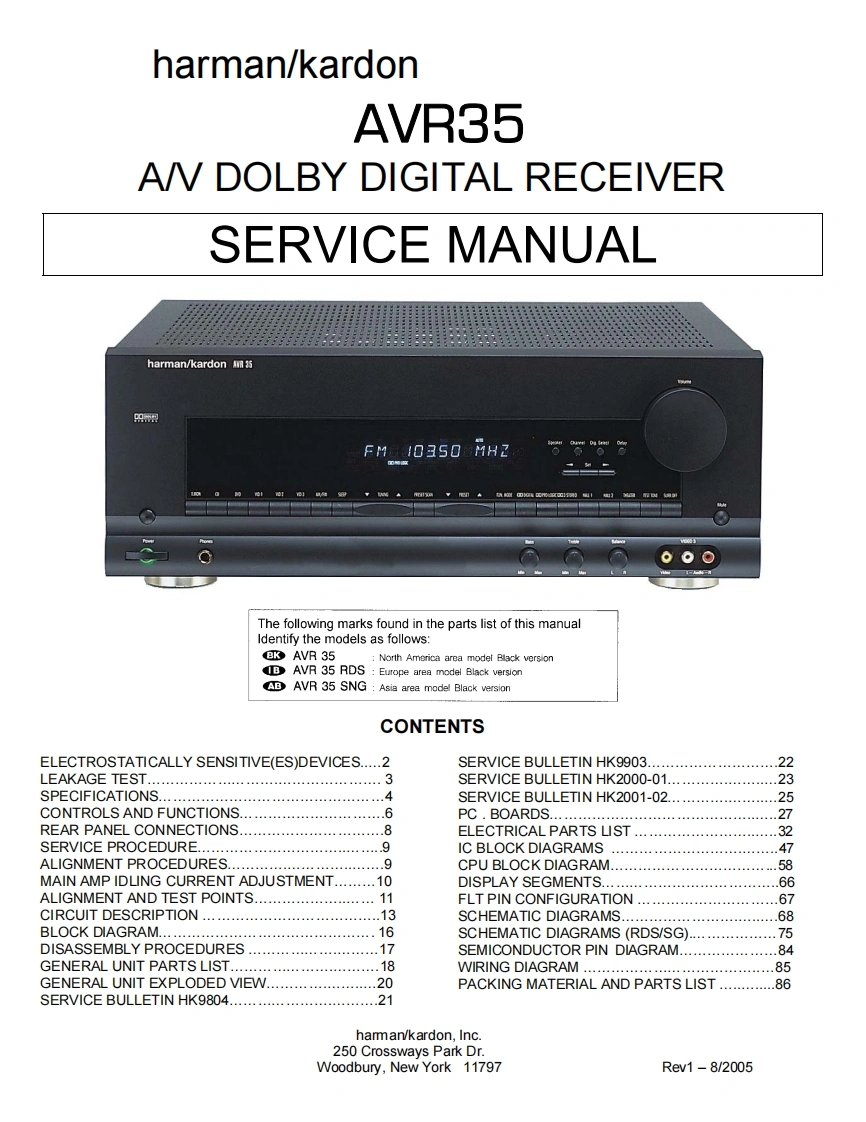

harman/kardonAVR35AM DOLBY DIGITAL RECEIVERSERVICE MANUALharman/kardona园FM 10350 MHZw二”二The following marks found in the parts list of this manualIdentify the models as follows:AVR 35North America area modet Black versionAVR 35 RDS Europe area model Black version3 AVR 35 SNG Asia area model Black versionCONTENTSELECTROSTATICALLY SENSITIVE(ES)DEVICES.....2SERVICE BULLETIN HK9903..........................22LEAKAGE TEST........3SERVICE BULLETIN HK2000-01........................23SPECIFICATIONS.............4SERVICE BULLETIN HK2001-02..25CONTROLS AND FUNCTIONS..........6PC.BOARDS..........27REAR PANEL CONNECTIONS.....................8ELECTRICAL PARTS LIST...32SERVICE PROCEDURE......................9IC BLOCK DIAGRAMS47ALIGNMENT PROCEDURES.....9CPU BLOCK DIAGRAM........................58MAIN AMP IDLING CURRENT ADJUSTMENT.........10DISPLAY SEGMENTS........66ALIGNMENT AND TEST POINTS........................11FLT PIN CONFIGURATION.......................67CIRCUIT DESCRIPTION .................13SCHEMATIC DIAGRAMS......68BLOCK DIAGRAM.....16SCHEMATIC DIAGRAMS (RDS/SG)..................75DISASSEMBLY PROCEDURES .........................17SEMICONDUCTOR PIN DIAGRAM..84GENERAL UNIT PARTS LIST.......18WIRING DIAGRAM.......85GENERAL UNIT EXPLODED VIEW.......................20PACKING MATERIAL AND PARTS LIST .............86SERVICE BULLETIN HK9804.......21hamman/kardon,Inc.250 Crossways Park Dr.Woodbury,New York 11797Rev1-8/2005
