哈曼卡顿Harman-Kardon-DC-5300-维修手册

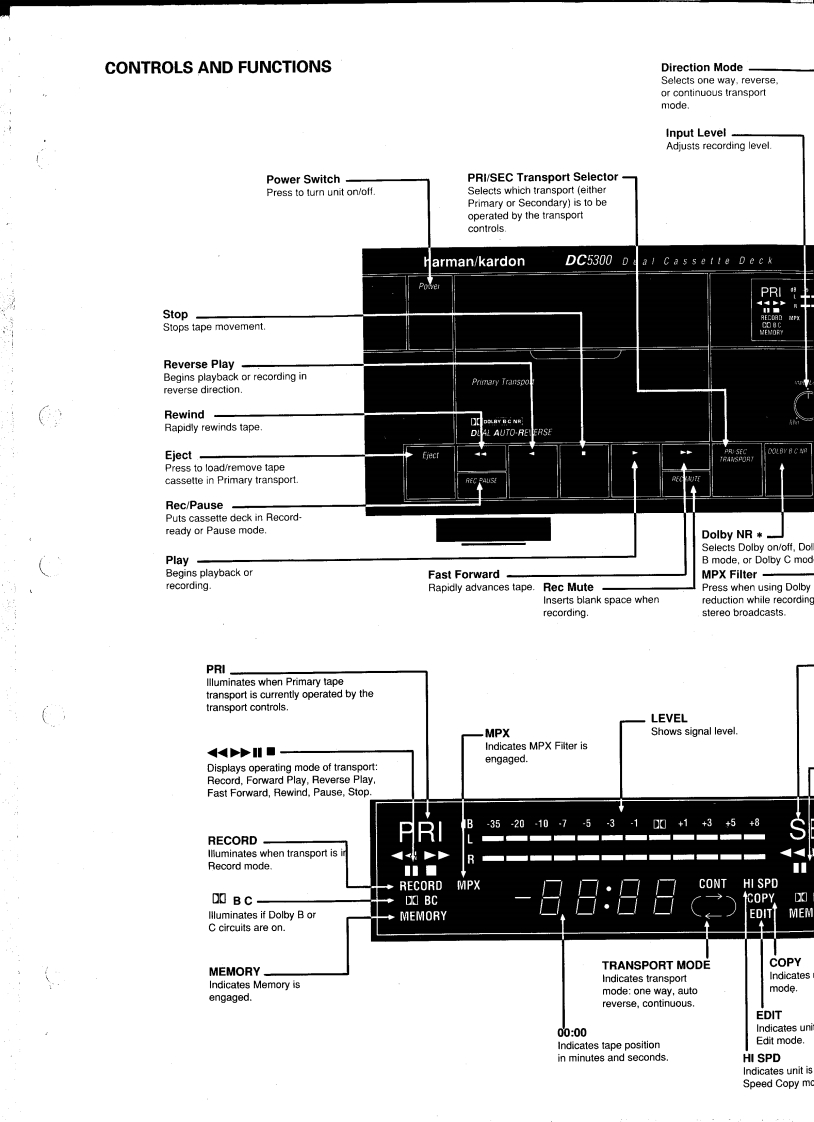

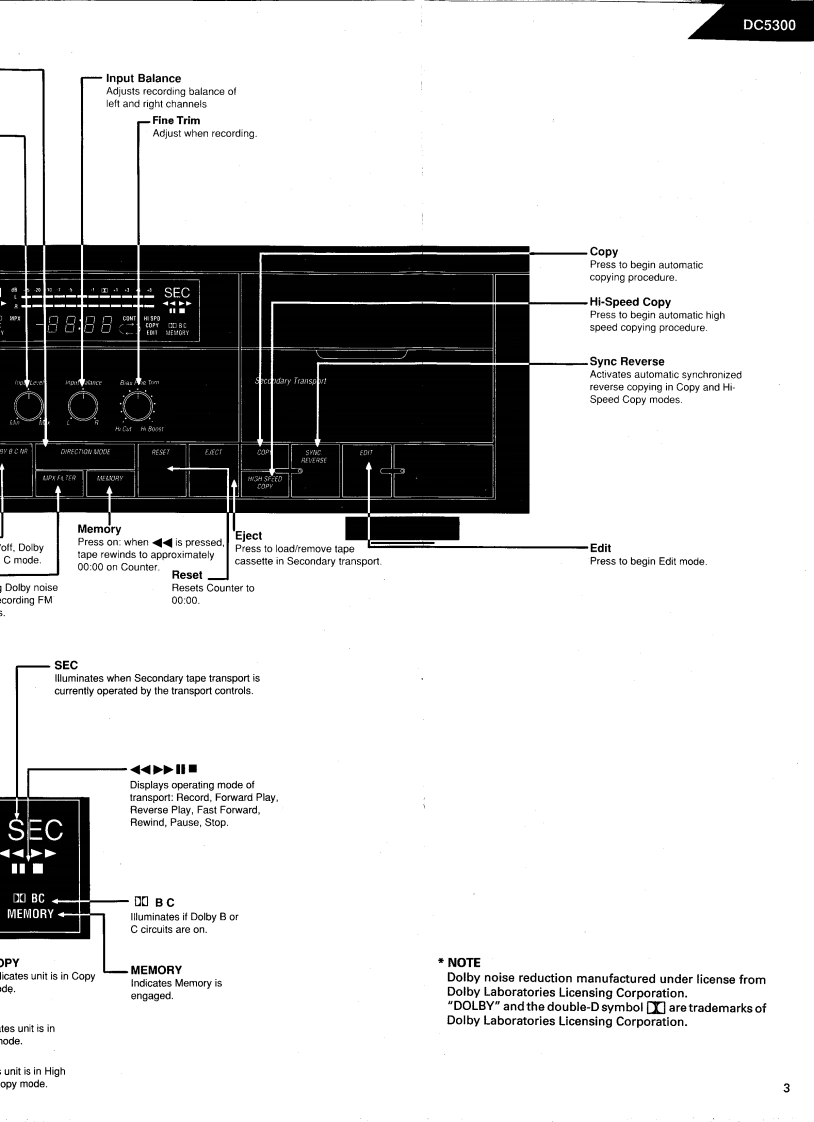

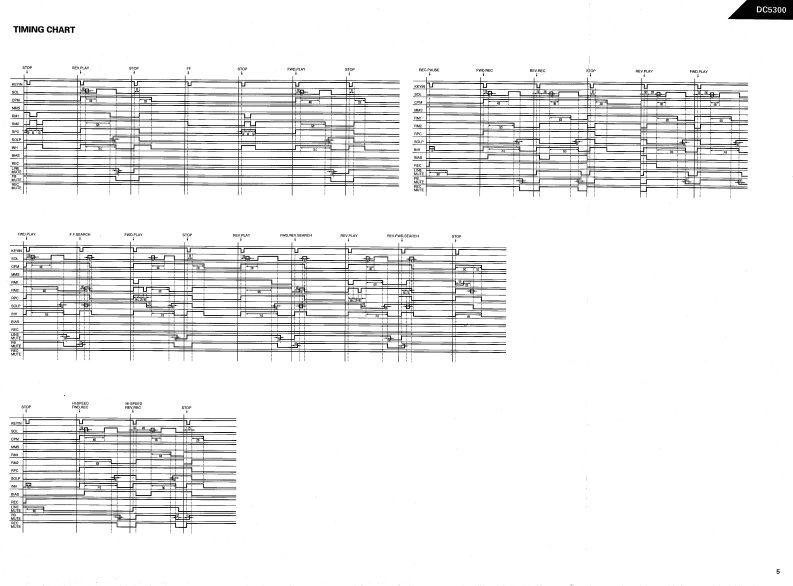

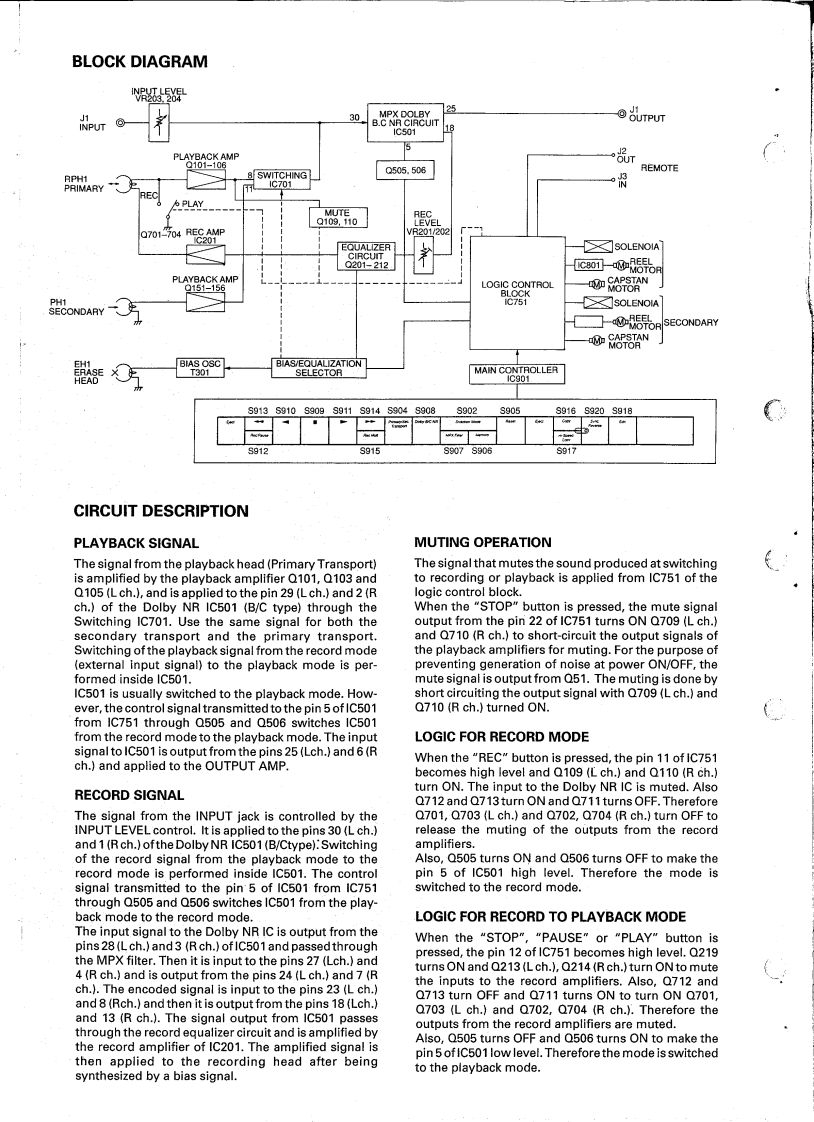

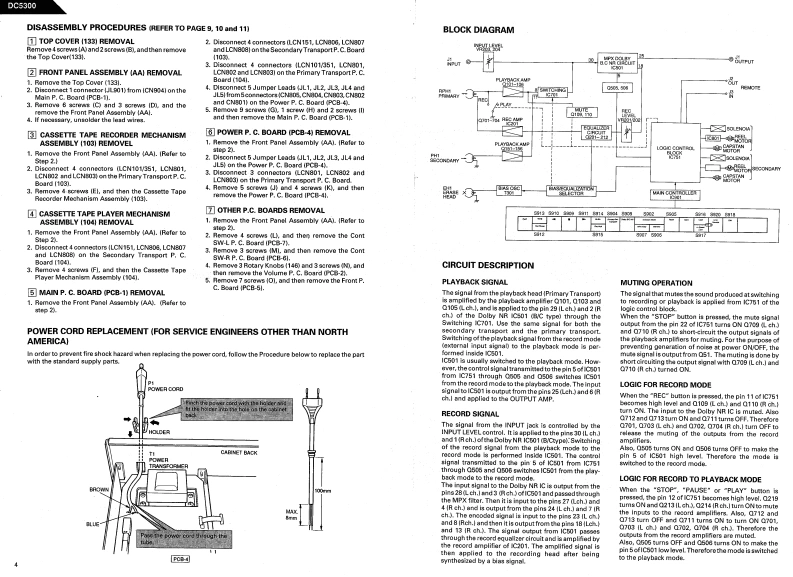

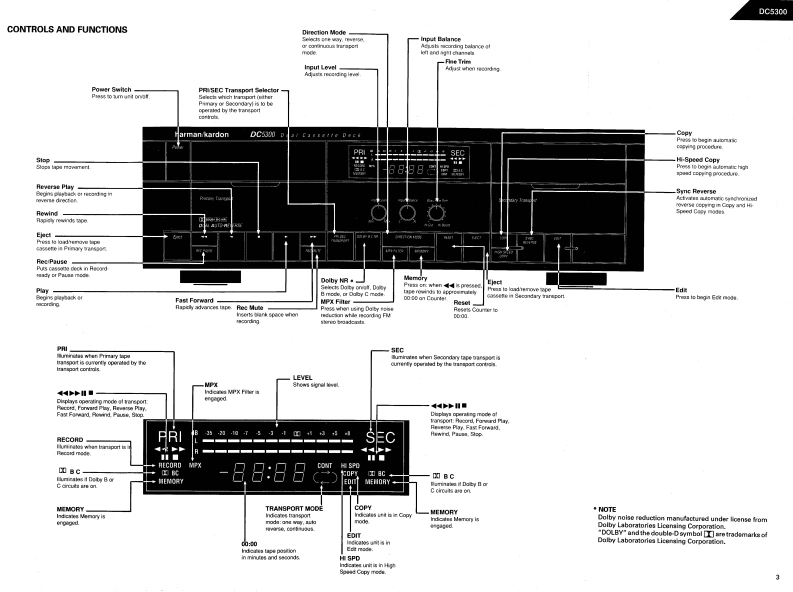

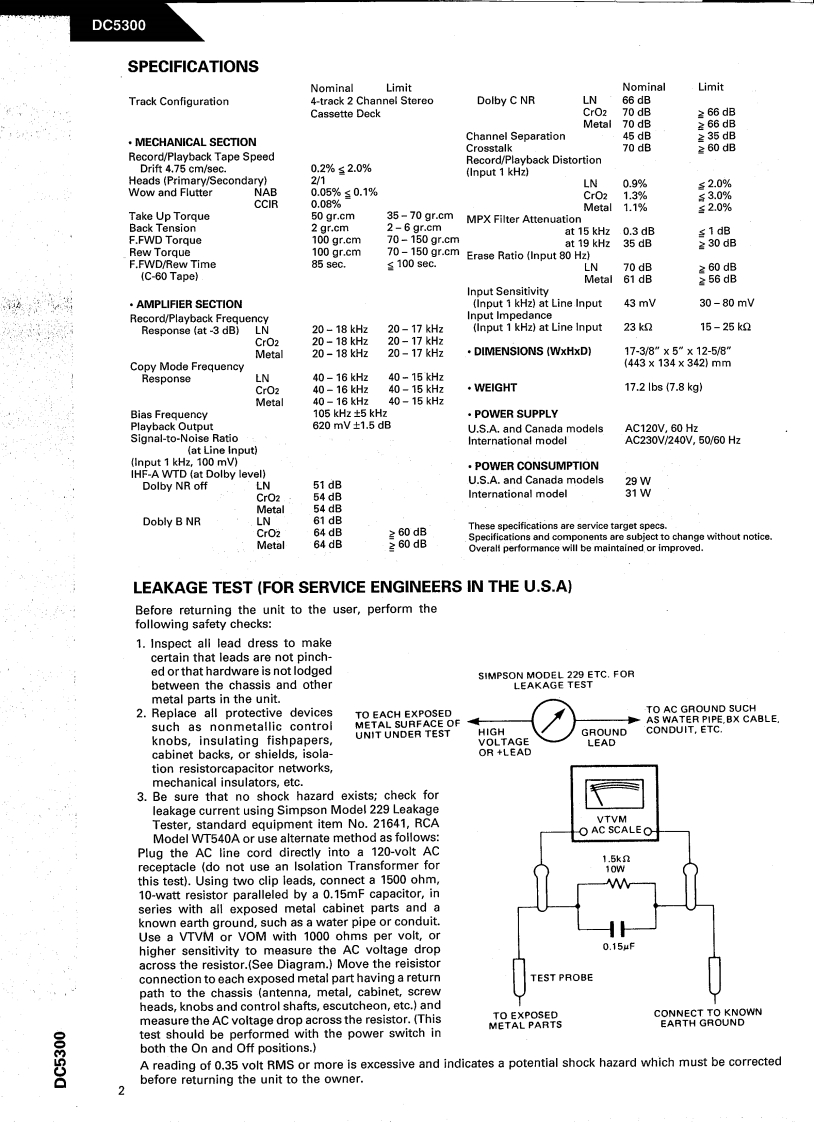

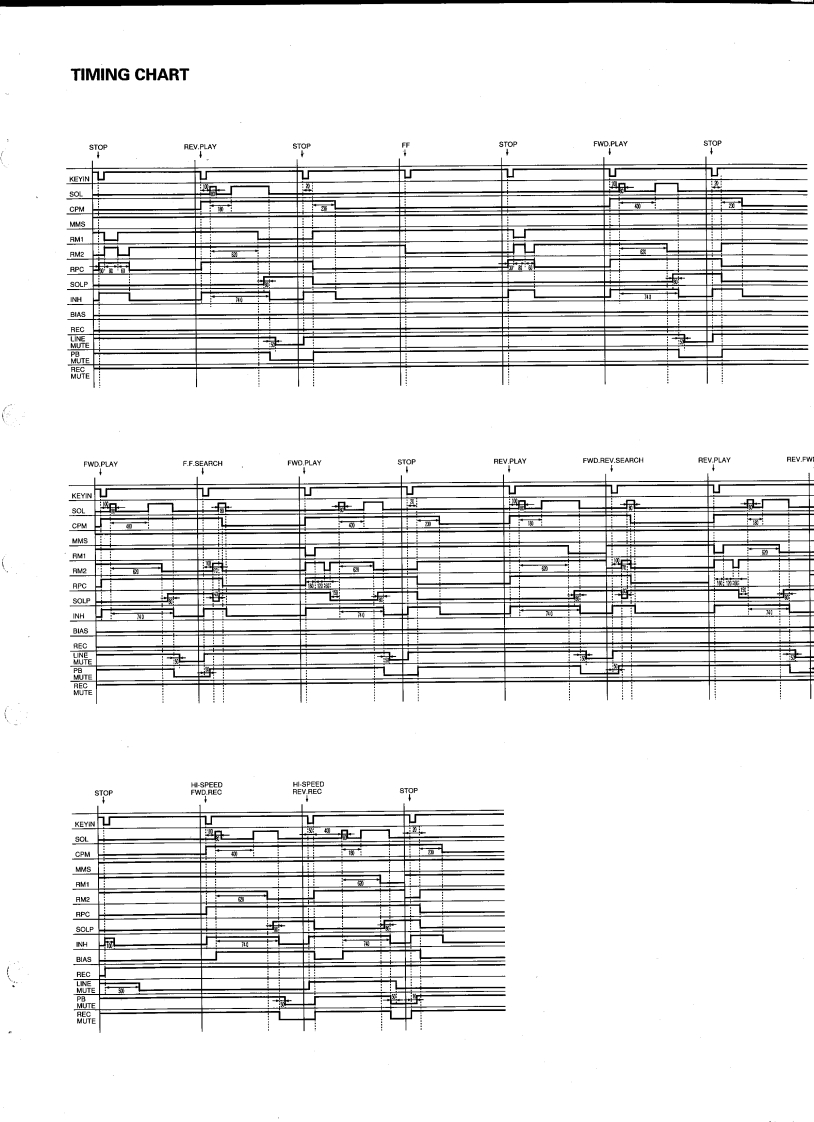

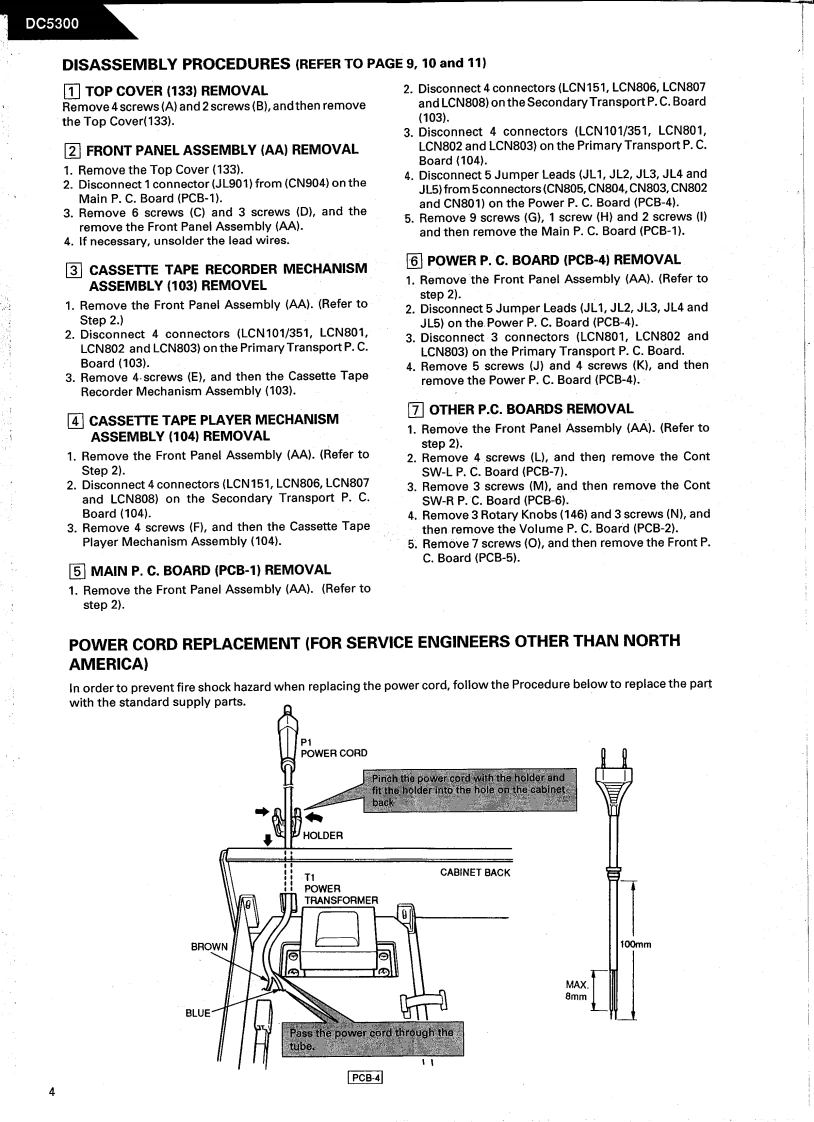

The Harman KardonModel DC5300Manual 177ADUAL CASSETTE DECKTechnical ManualThe following marks found in the parts list of this manualidentify the models as follows.R:North America area model Black versionB:International model Black versionB:Australia model Black versionCONTENTSSPECIFICATIONS.…42GENERAL UNIT ...........LEAKAGE TEST2GENERAL UNIT PARTS LIST...........9.CONTROLS AND FUNCTIONS3CASSETTE TAPE PLAYER/RECORDERDISASSEMBLY PROCEDURES..............4.MECHANISM,PARTS LIST.....9POWER CORD REPLACEMENT.........4WIRING DIAGRAM........10BLOCK DIAGRAM......4P.C.BOARDS........11CIRCUIT DESCRIPTION4ELECTRICAL PARTS LIST......13TIMING CHART...................5IC BLOCK DIAGRAM.........20ALIGNMENT PROCEDURES........6SCHEMATIC DIAGRAM.........23harman/kardonParts and Service Office240 Crossways Park West,Woodbury,N.Y.117971112-0010A152 P-129109 2000 Printed in JapanDC5300
