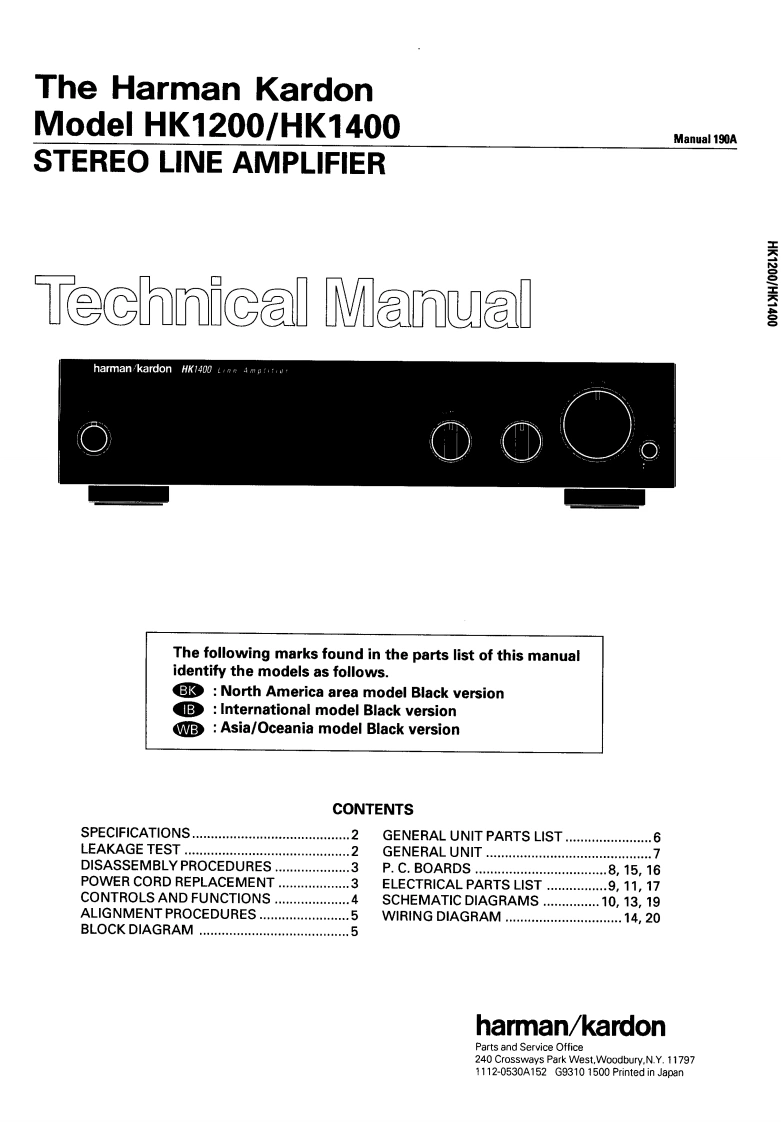

The Harman KardonModel HK1200/HK1400Manual 190ASTEREO LINE AMPLIFIERTechnical ManualHK12001HK1400harman /kardon HK1400The following marks found in the parts list of this manualidentify the models as follows.North America area model Black versionBInternational model Black versionWB Asia/Oceania model Black versionCONTENTSSPECIFICATIONS.............GENERAL UNIT PARTS LIST...........6LEAKAGE TEST......2GENERAL UNITDISASSEMBLY PROCEDURES.................3P.C.BOARDS......8,15,16POWER CORD REPLACEMENT..3CONTROLS AND FUNCTIONS.....4ELECTRICAL PARTS LIST ............,.11,17SCHEMATIC DIAGRAMS ...............10,13,19ALIGNMENT PROCEDURES...................5WIRING DIAGRAM....14,20BLOCK DIAGRAM.......5.harman/kardonParts and Service Office240 Crossways Park West,Woodbury.N.Y.117971112-0530A152 G9310 1500 Printed in Japan
