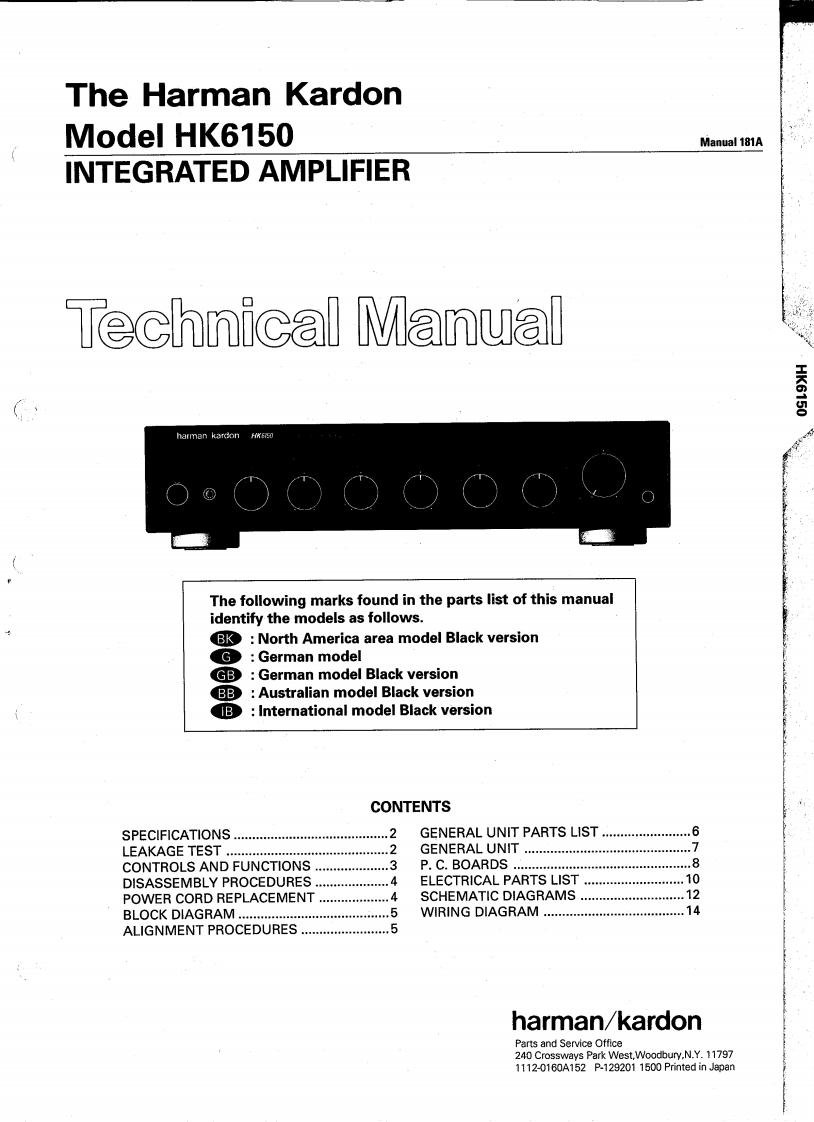

The Harman KardonModel HK6150Manual 181AINTEGRATED AMPLIFIERTechnical ManualHK6150harman kardon FK网The following marks found in the parts list of this manualidentify the models as follows.North America area model Black versionGerman modelB:German model Black versionBB:Australian model Black versionInternational model Black versionCONTENTSSPECIFICATIONS…2GENERAL UNIT PARTS LIST........6LEAKAGE TEST..GENERAL UNIT......CONTROLS AND FUNCTIONS.........3P.C.BOARDS ....DISASSEMBLY PROCEDURES ................4ELECTRICAL PARTS LIST..............10POWER CORD REPLACEMENT ...............4SCHEMATIC DIAGRAMS....12BLOCK DIAGRAM...5WIRING DIAGRAM........14ALIGNMENT PROCEDURES...........5harman/kardonParts and Service Office240 Crossways Park West,Woodbury.N.Y.117971112-0160A152P.1292011500 Printed in Jepan
