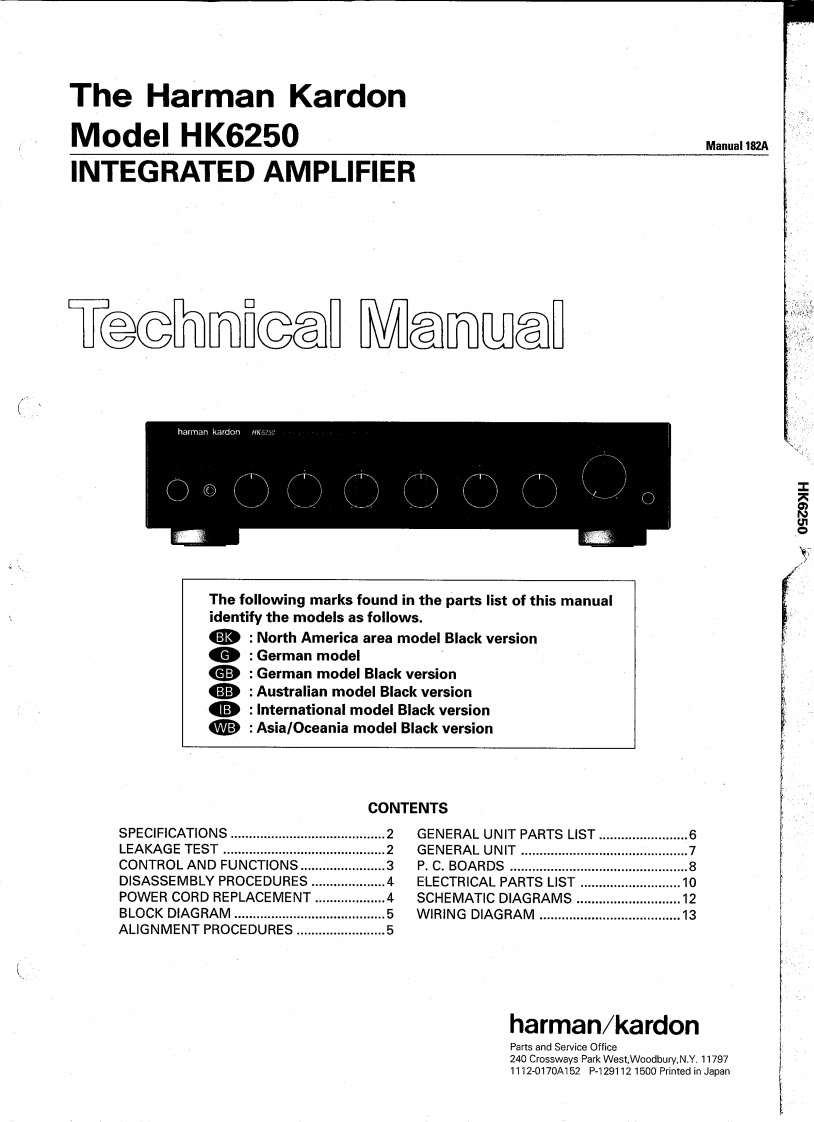

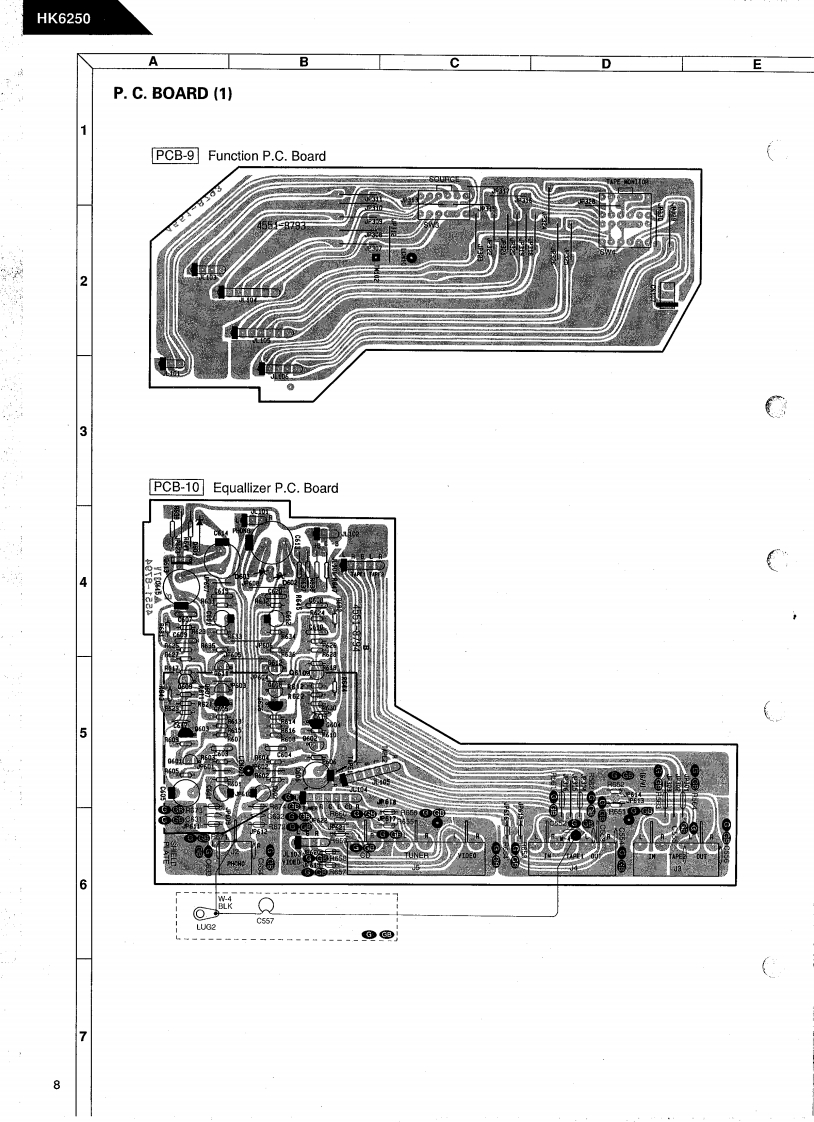

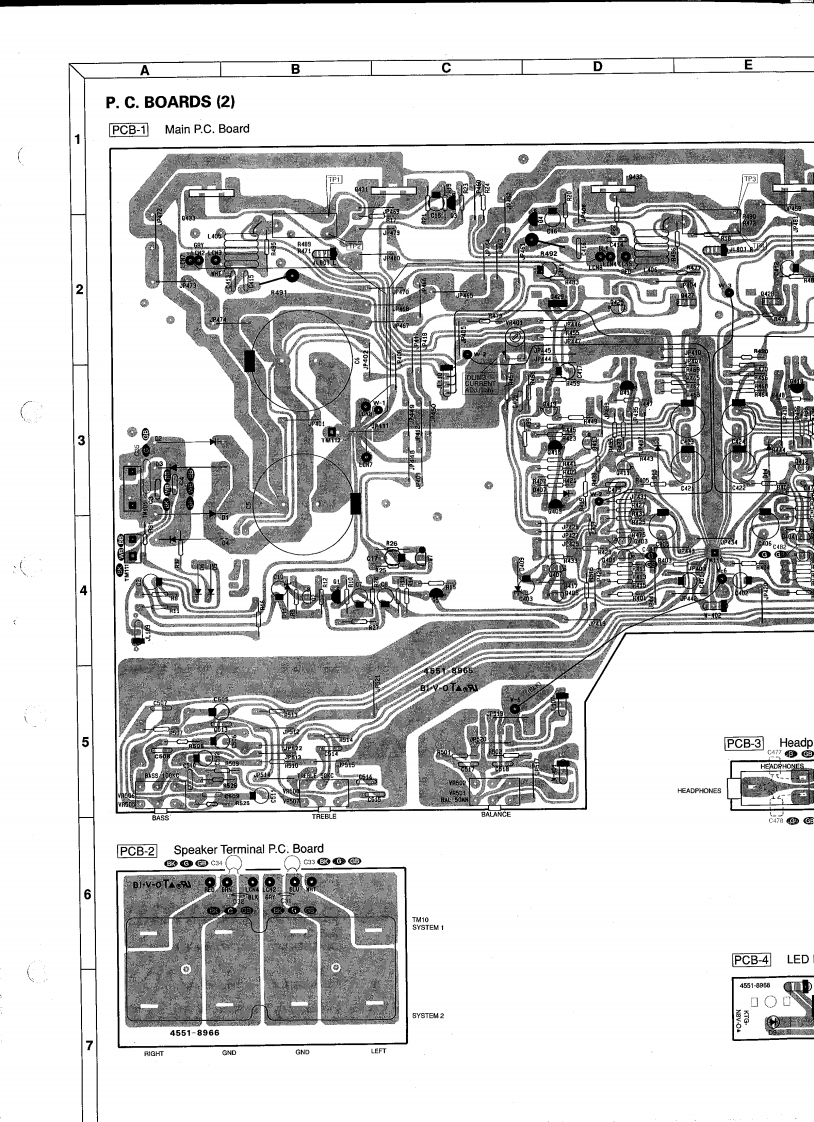

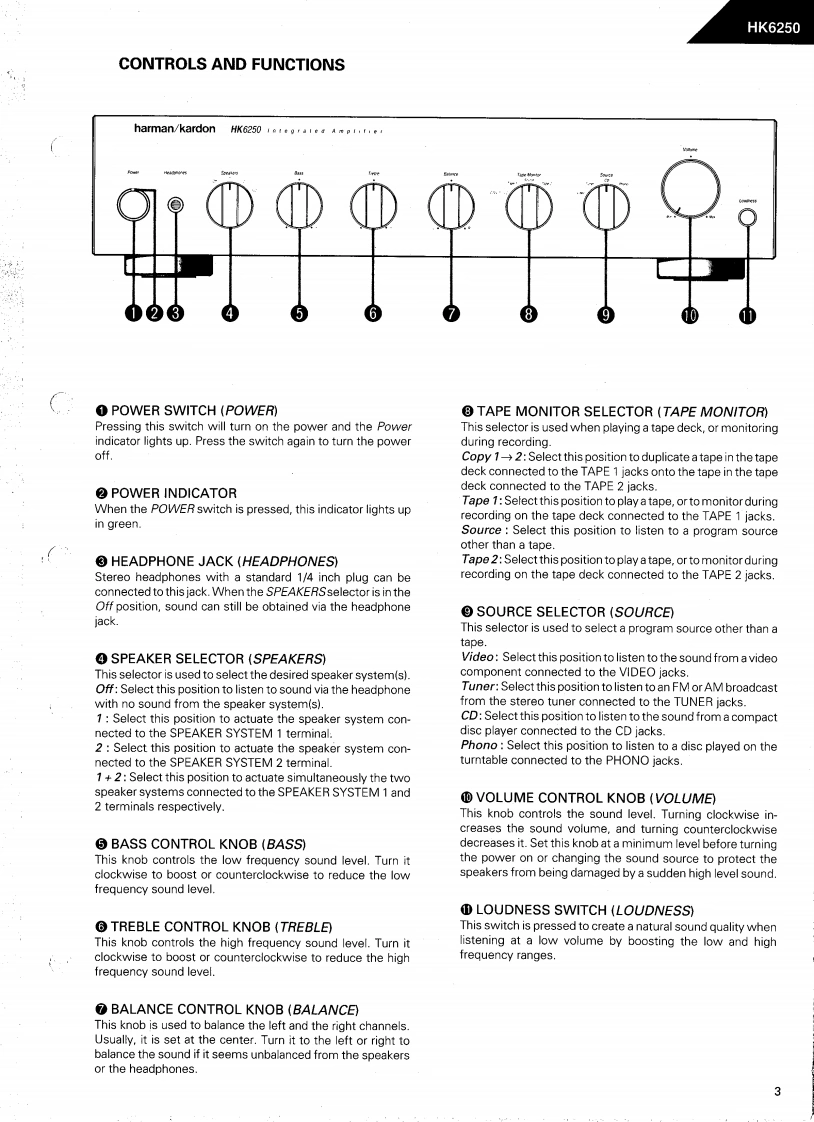

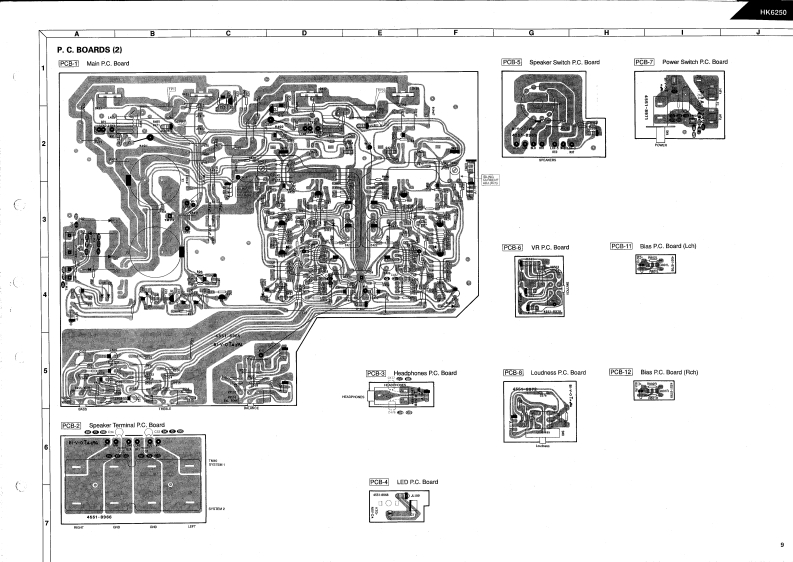

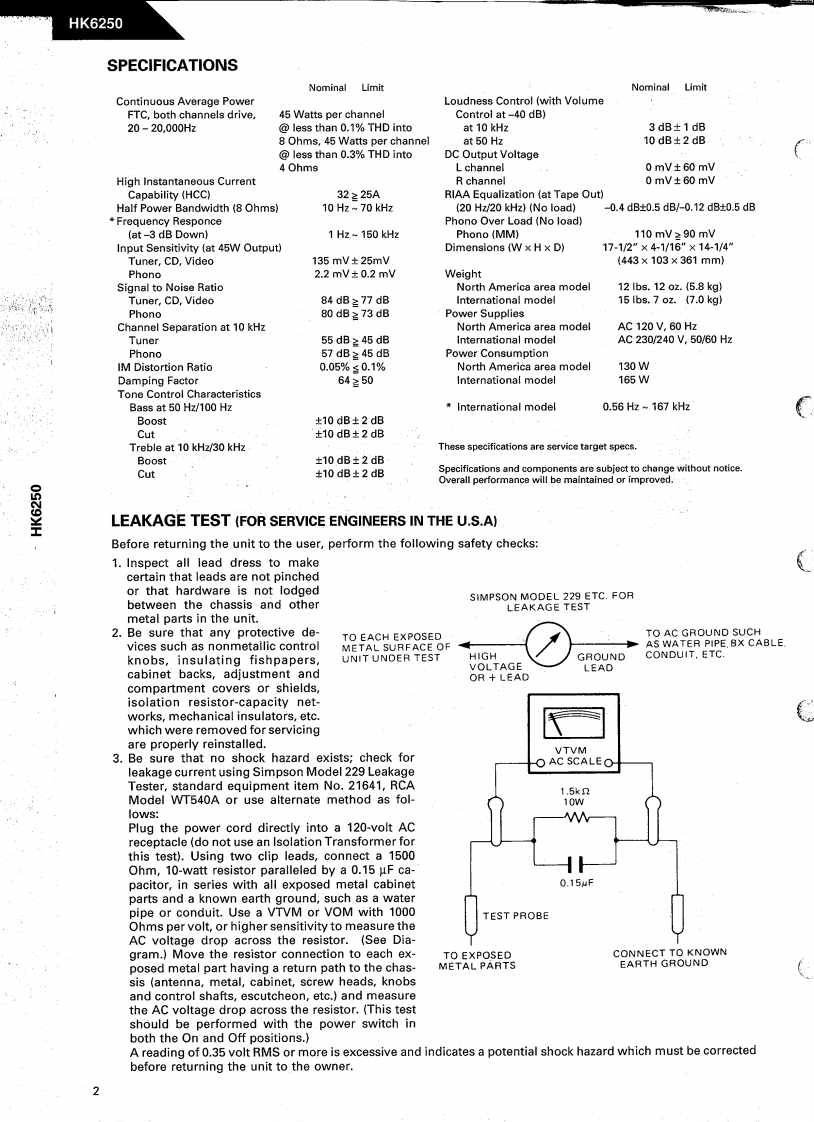

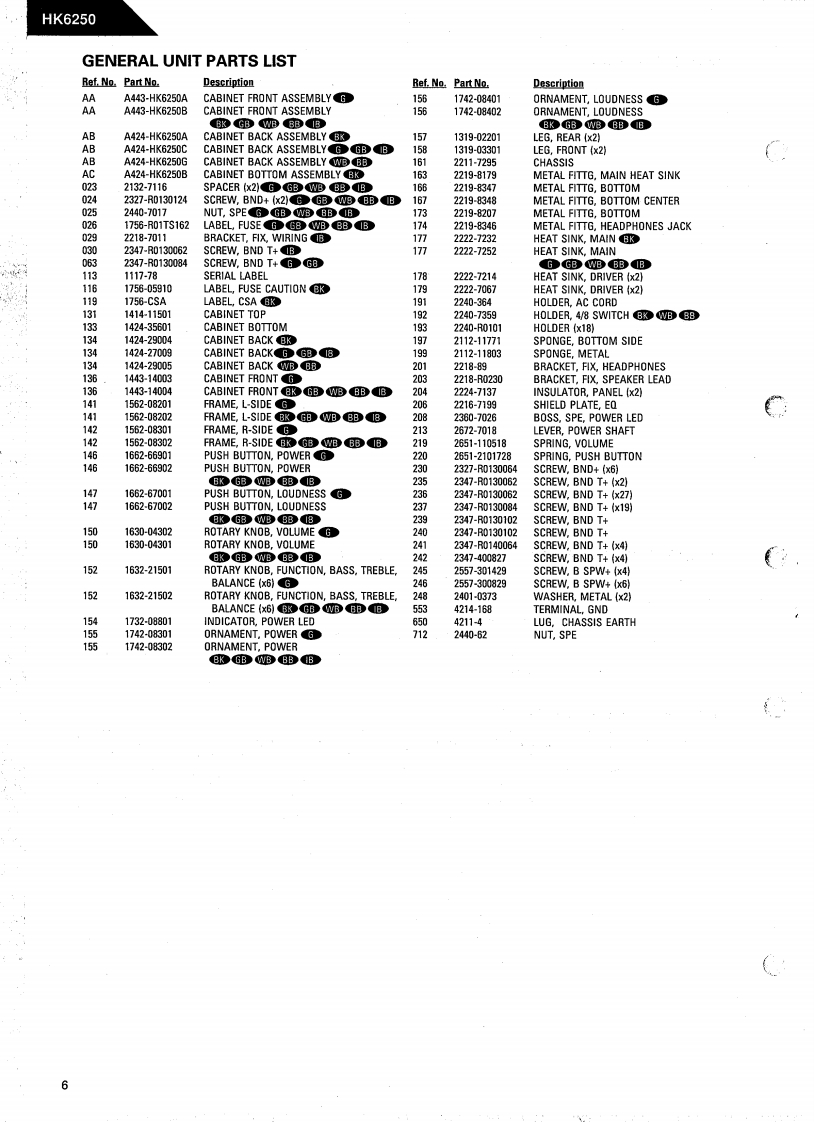

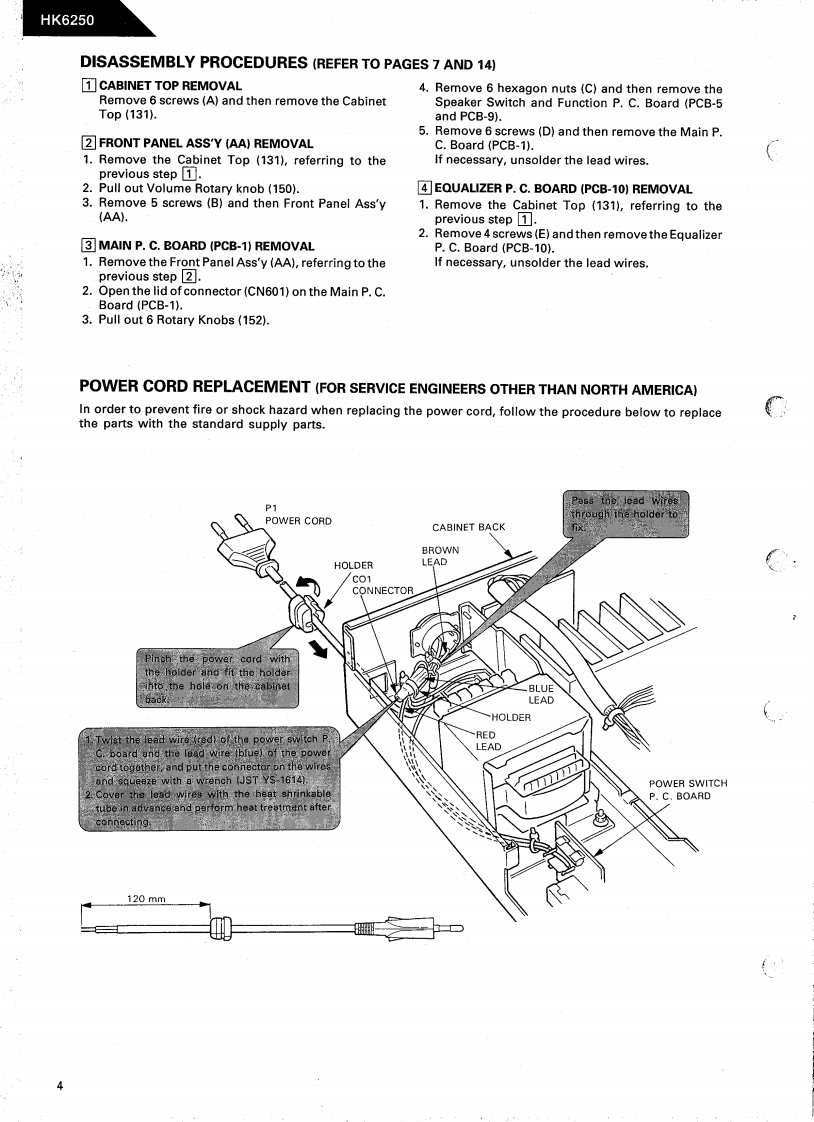

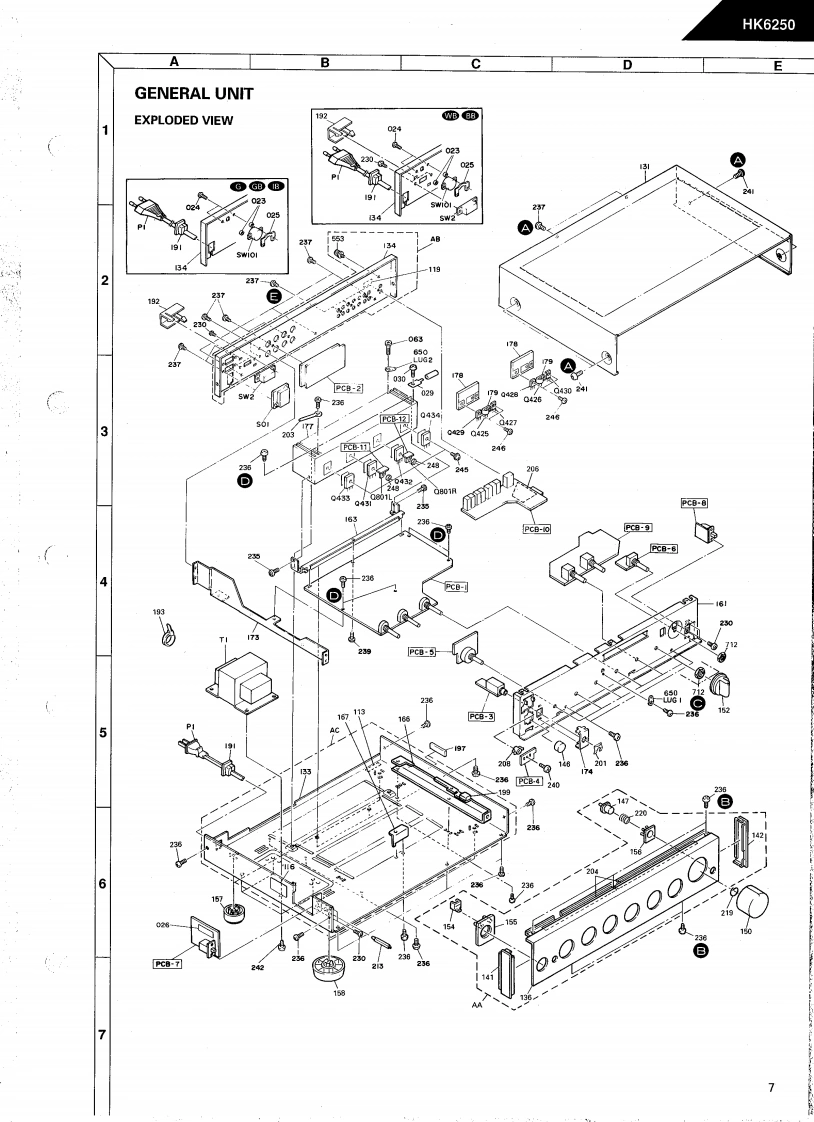

The Harman KardonModel HK6250Manual 182AINTEGRATED AMPLIFIERTechnical Manualharman kardon KeseHK6250The following marks found in the parts list of this manualidentify the models as follows.North America area model Black versionGerman modelGB:German model Black versionB:Australian model Black versionInternational model Black versionB Asia/Oceania model Black versionCONTENTSSPECIFICATIONS............2GENERAL UNIT PARTS LIST...........6LEAKAGE TEST............2GENERAL UNIT...CONTROL AND FUNCTIONS...3P.C.BOARDS....8DISASSEMBLY PROCEDURES ............4ELECTRICAL PARTS LIST................10POWER CORD REPLACEMENT .............4SCHEMATIC DIAGRAMS.....12BLOCK DIAGRAM..5WIRING DIAGRAM.........................13ALIGNMENT PROCEDURES..5harman/kardonParts and Service Office240 Crossways Park West,Woodbury.N.Y.117971112-0170A152 P-129112 1500 Printed in Japan
