哈曼卡顿Harman-Kardon-HK-6650-R-维修手册

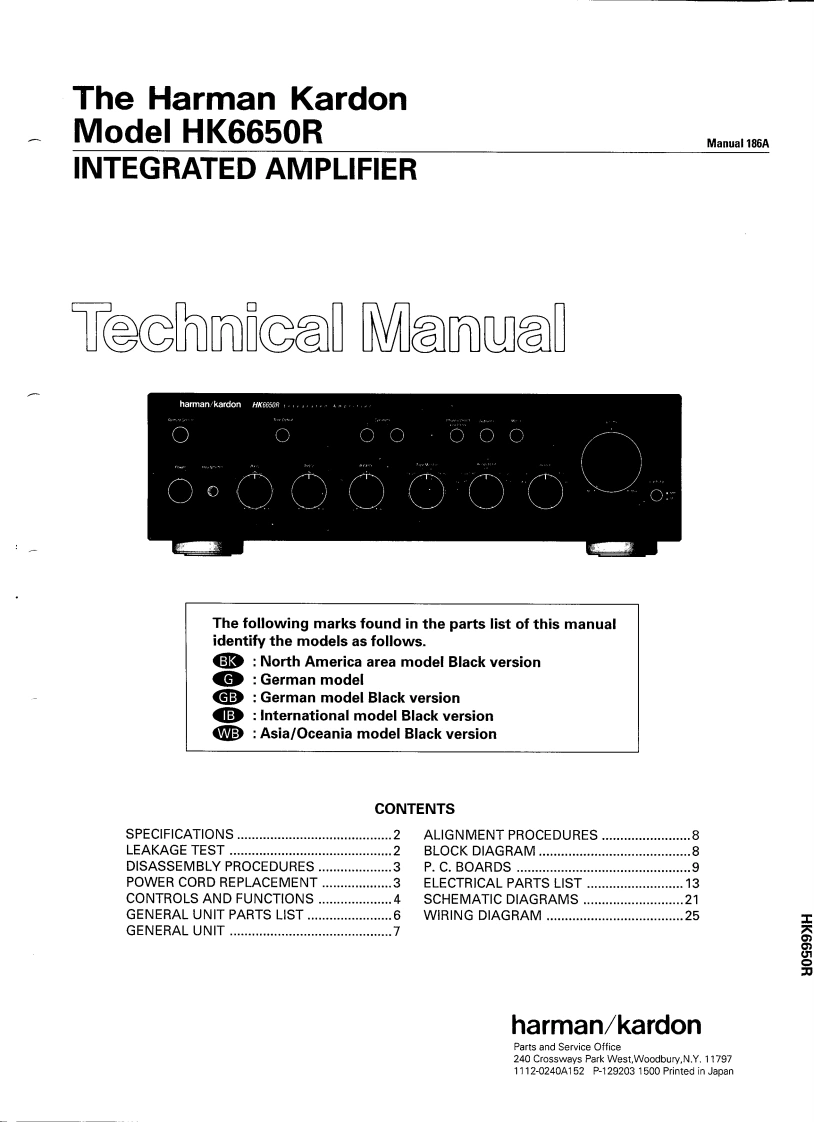

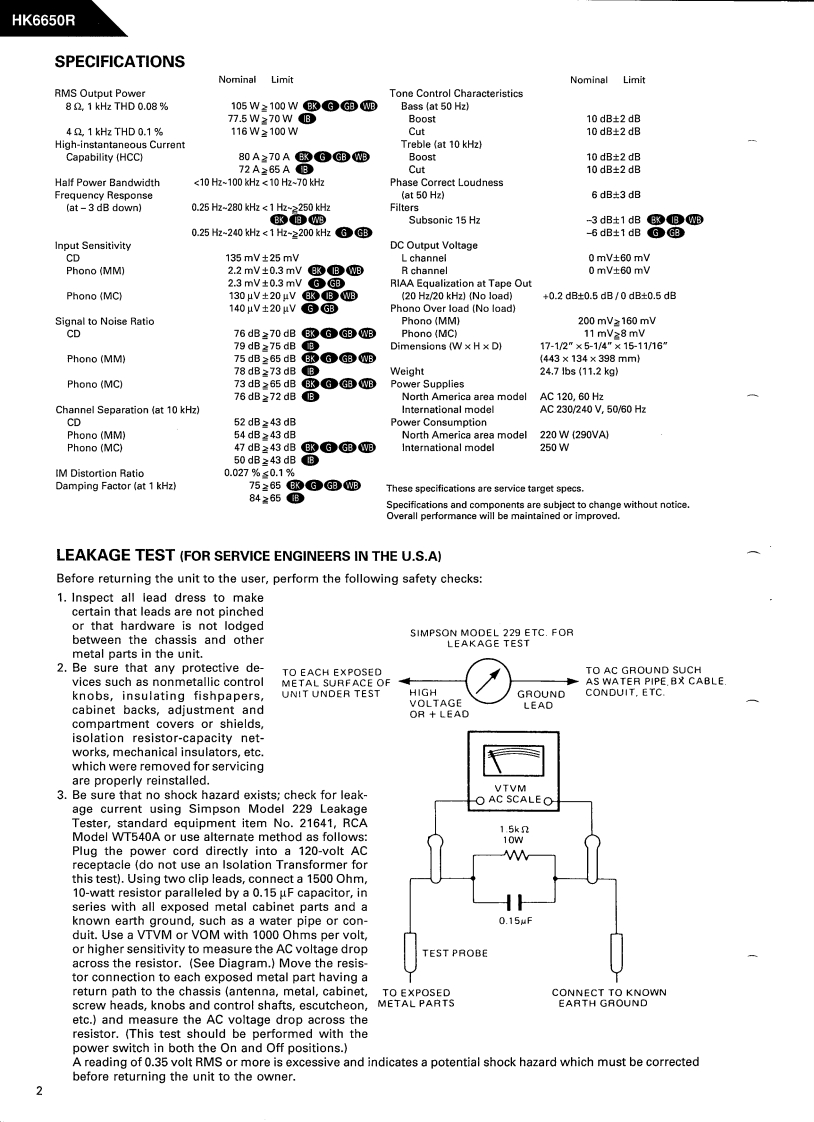

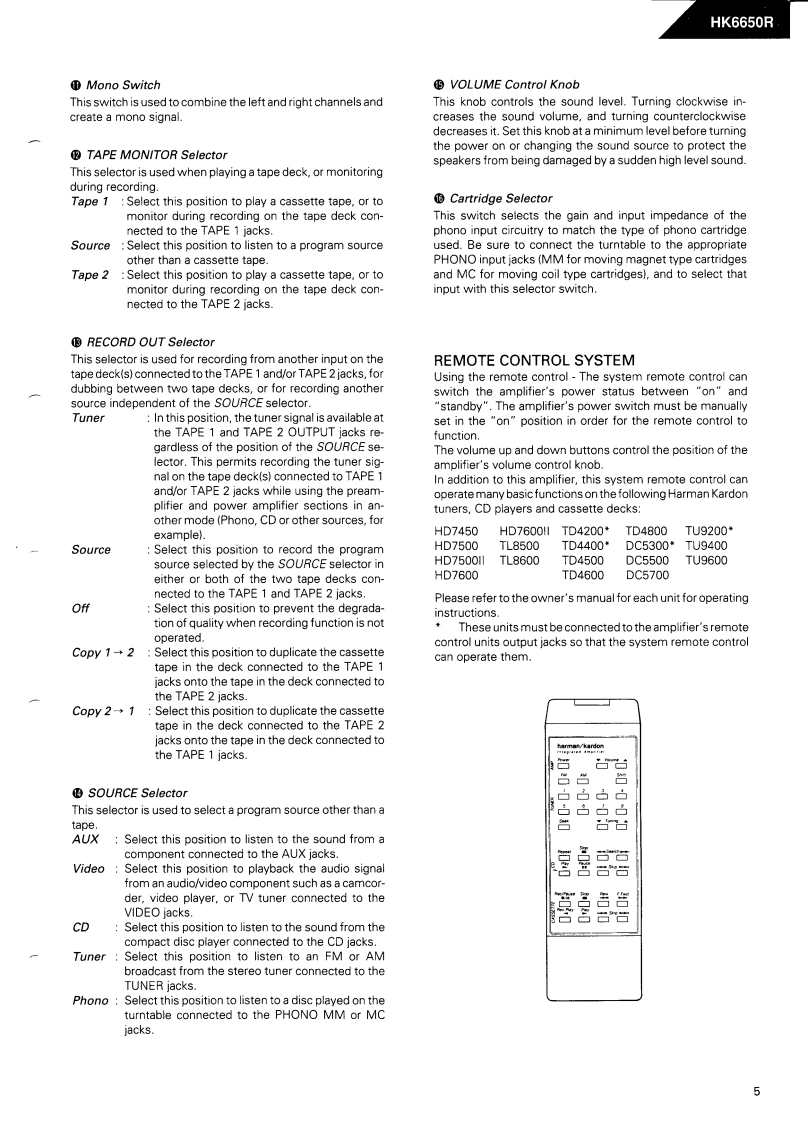

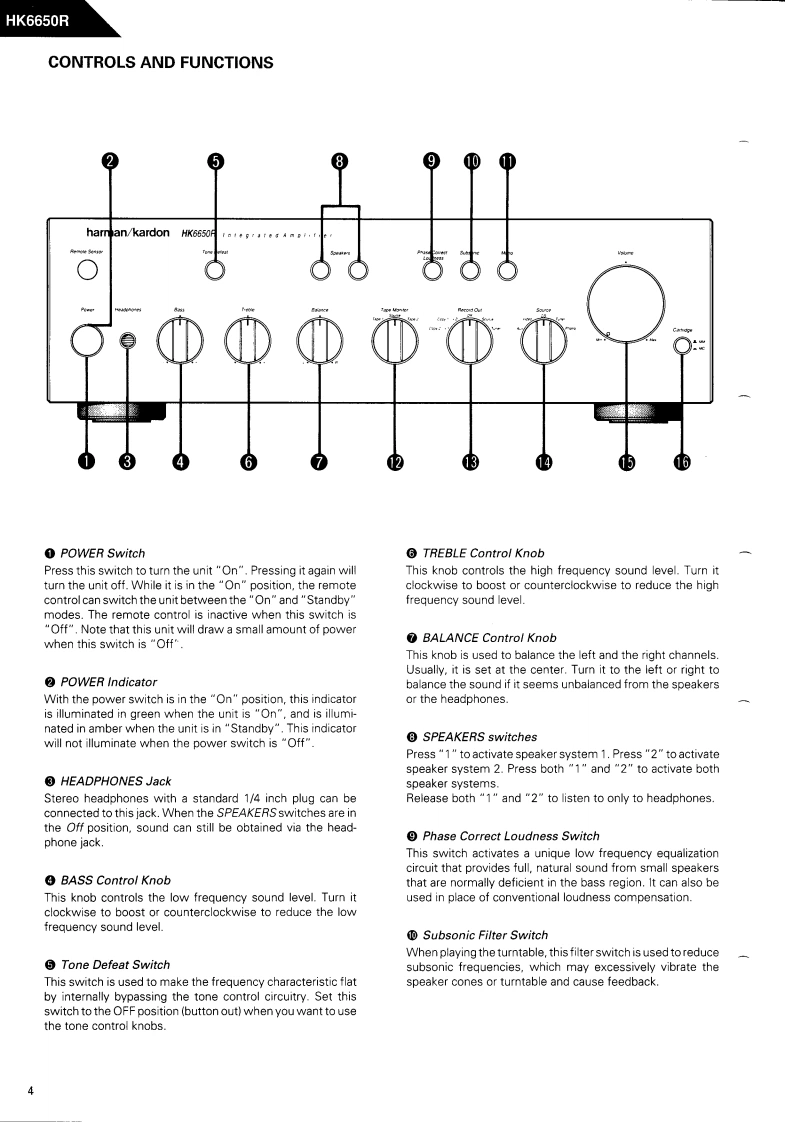

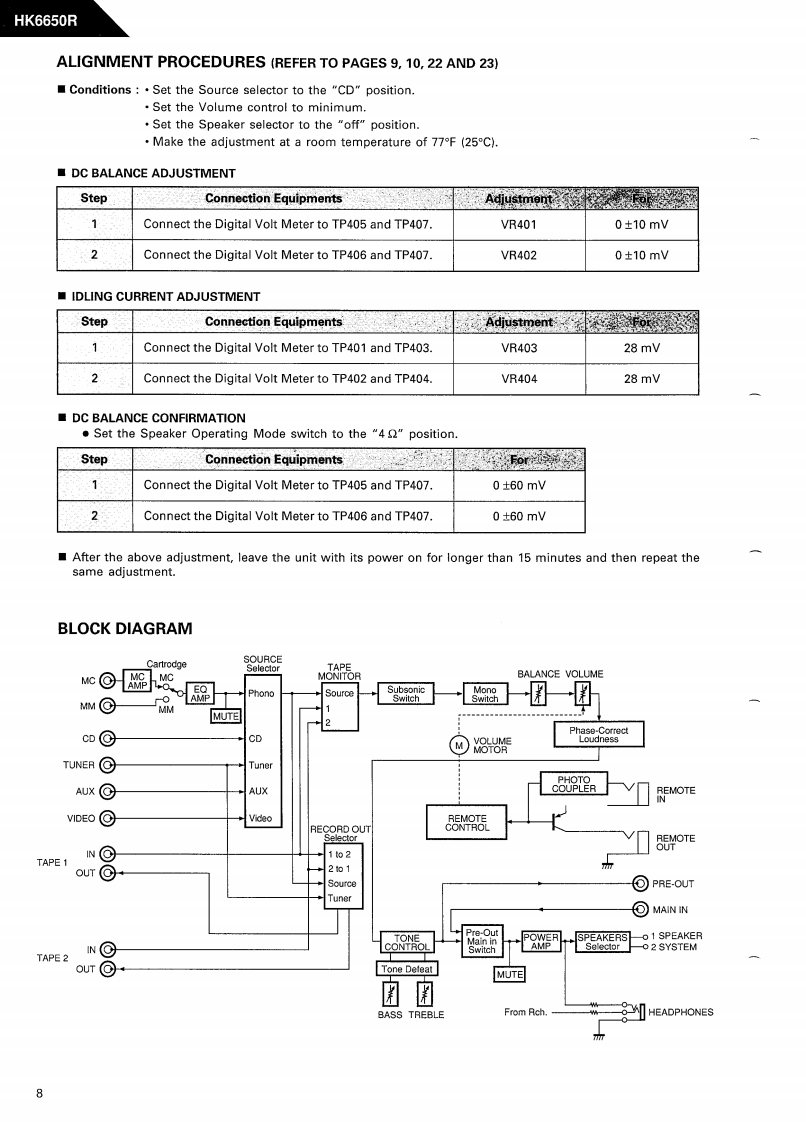

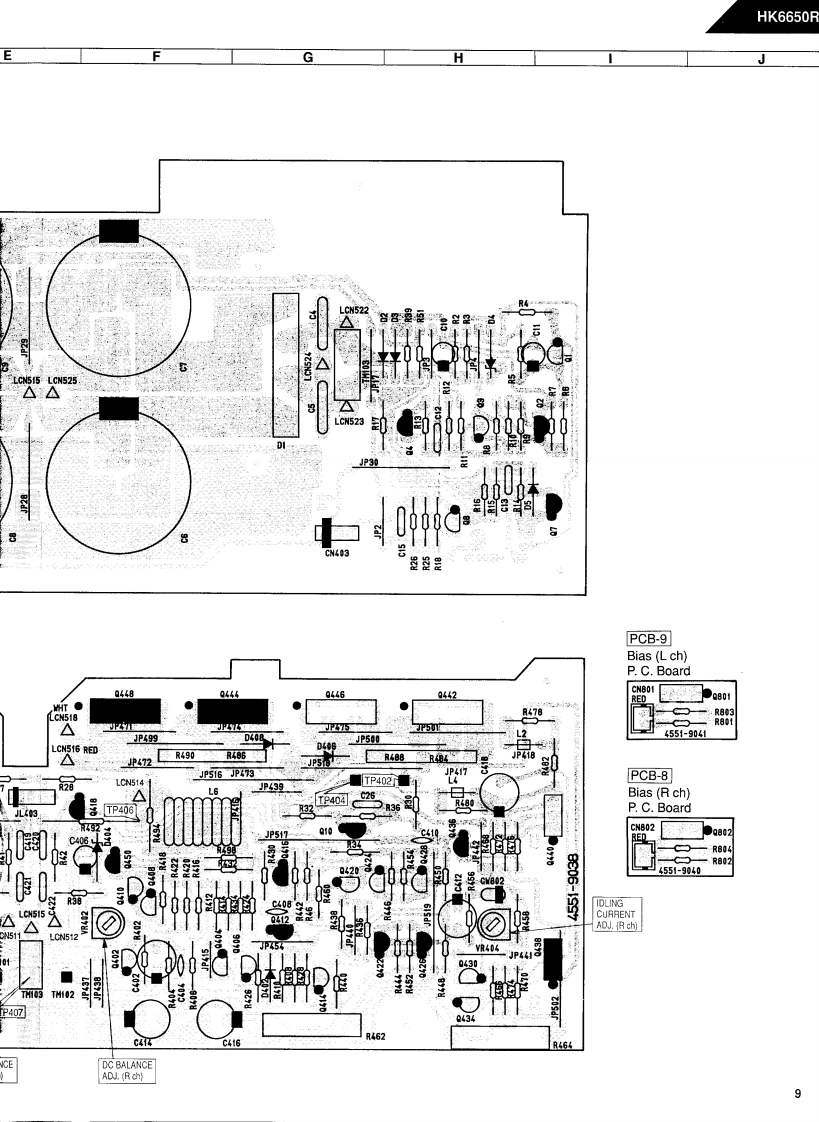

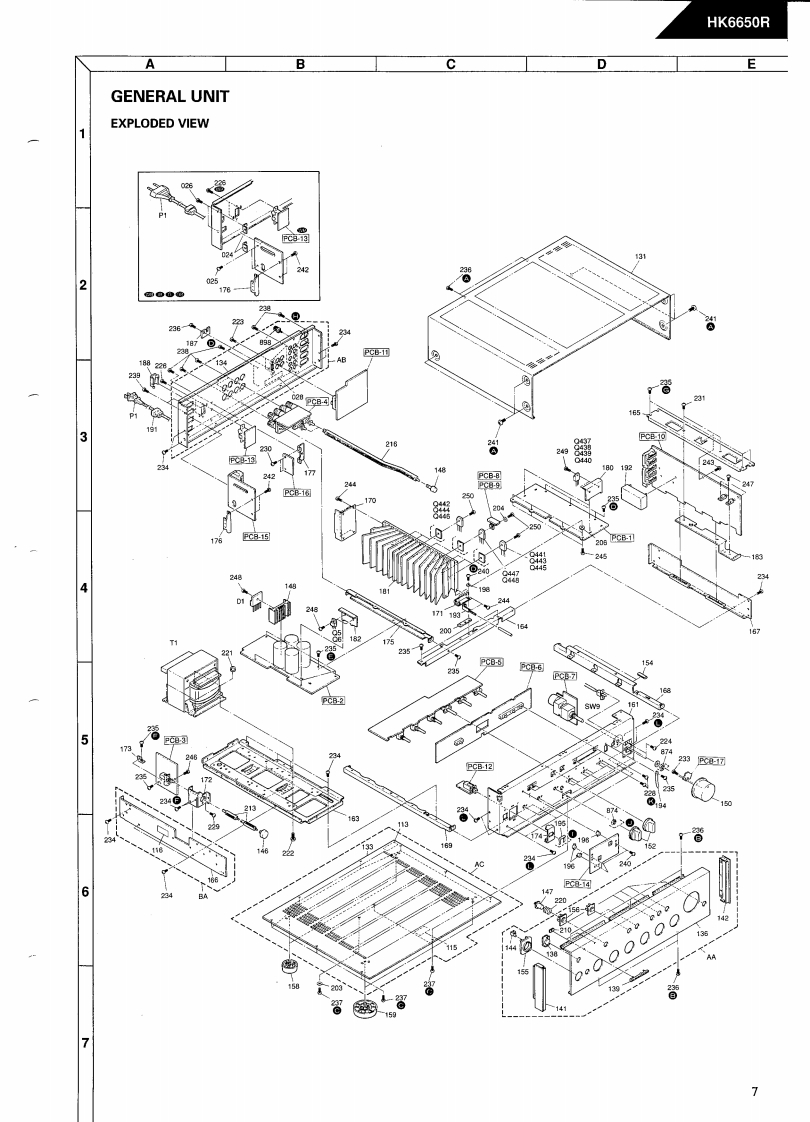

The Harman KardonModel HK6650RManual 186AINTEGRATED AMPLIFIERTechnical Manualharman/kardonThe following marks found in the parts list of this manualidentify the models as follows.BK:North America area model Black versionG:German modelB German model Black versionBInternational model Black versionWB:Asia/Oceania model Black versionCONTENTSSPECIFICATIONS…2ALIGNMENT PROCEDURES.................8LEAKAGE TEST ....2BLOCK DIAGRAM...8DISASSEMBLY PROCEDURES...................3P.C.BOARDS.......POWER CORD REPLACEMENT .................3ELECTRICAL PARTS LIST3CONTROLS AND FUNCTIONS ...........4SCHEMATIC DIAGRAMS........21GENERAL UNIT PARTS LIST....................6WIRING DIAGRAM..........................25GENERAL UNIT…7HK6650Rharman/kardonParts and Service Office240 Crossways Park West,Woodbury,N.Y.117971112-0240A152 P-129203 1500 Printed in Japan
