哈曼卡顿Harman-Kardon-HK-6850-维修手册

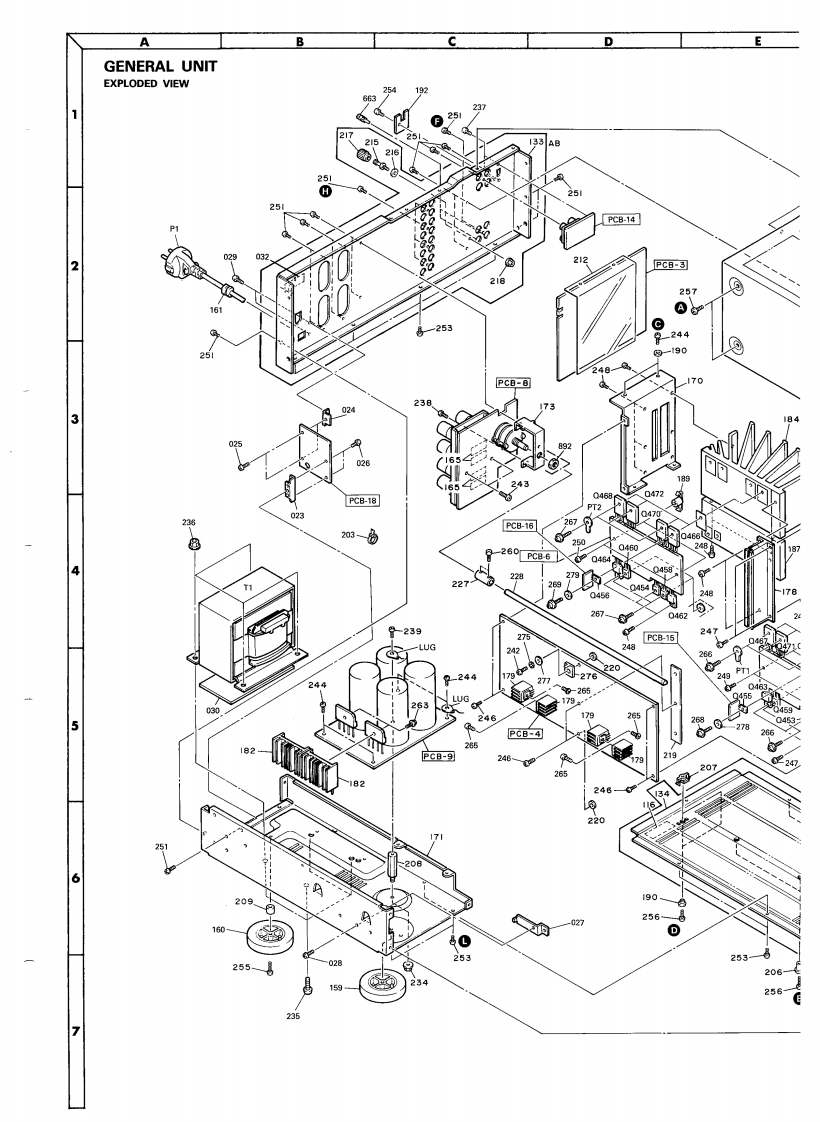

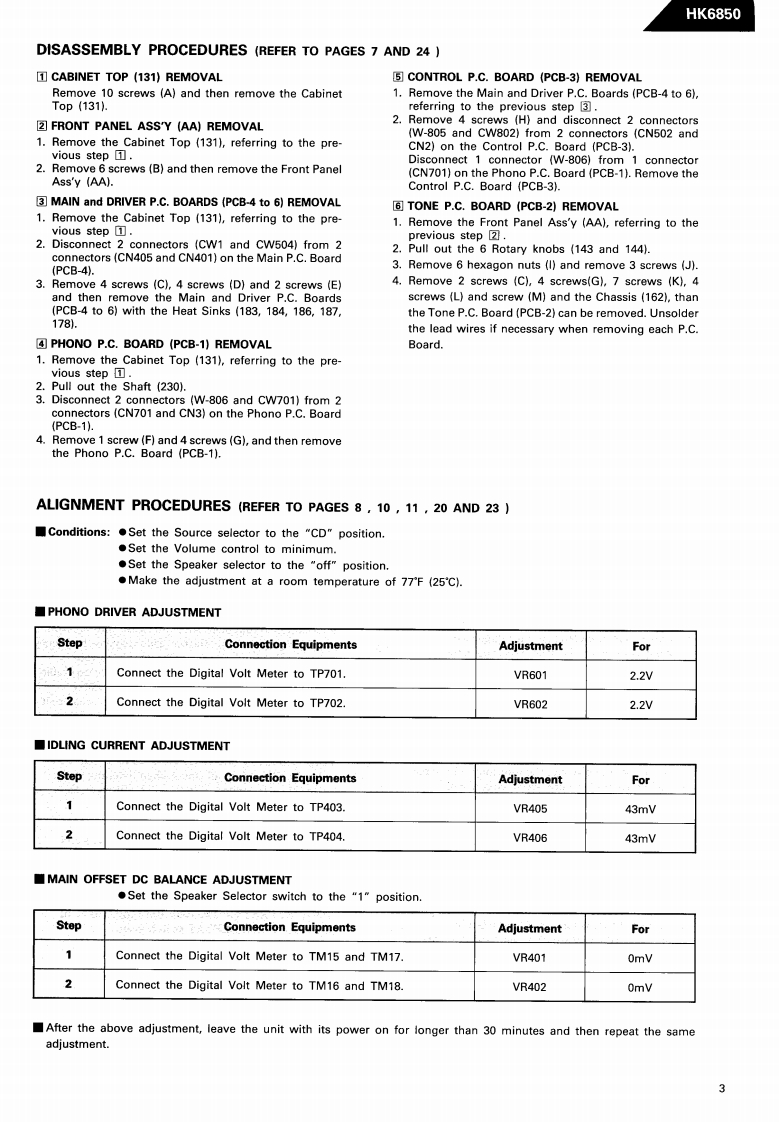

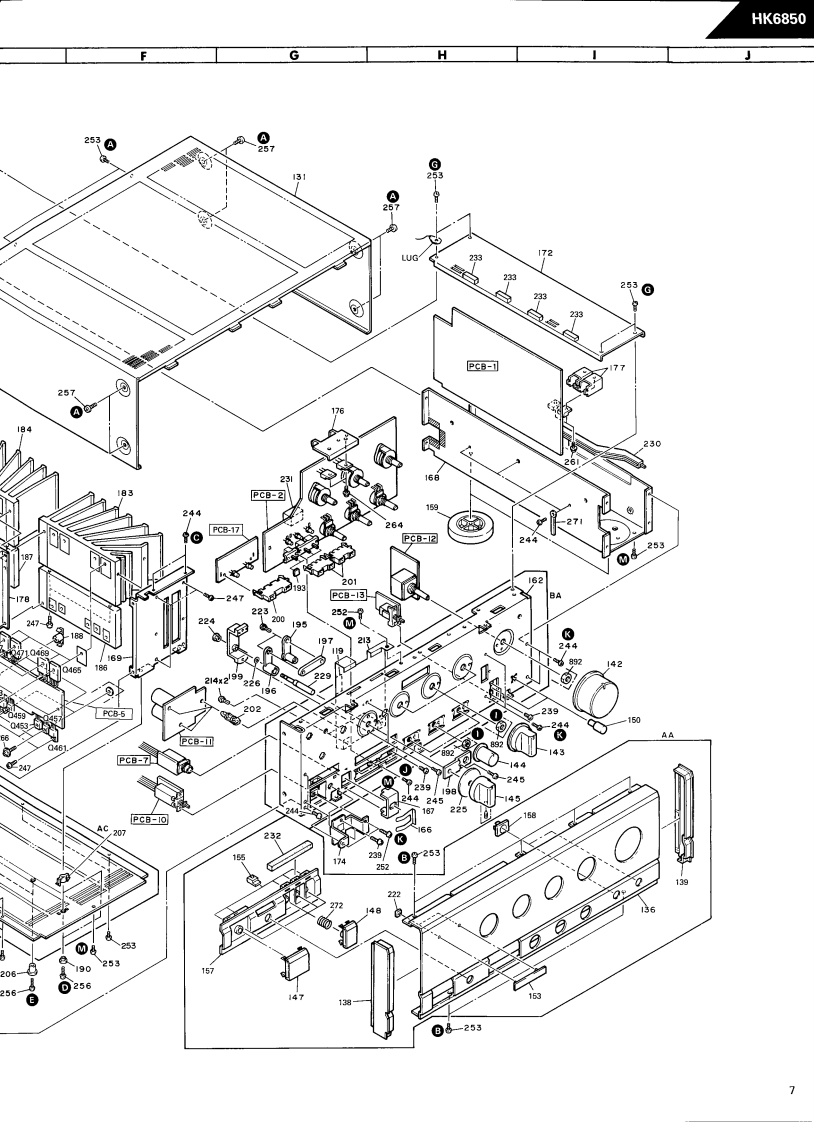

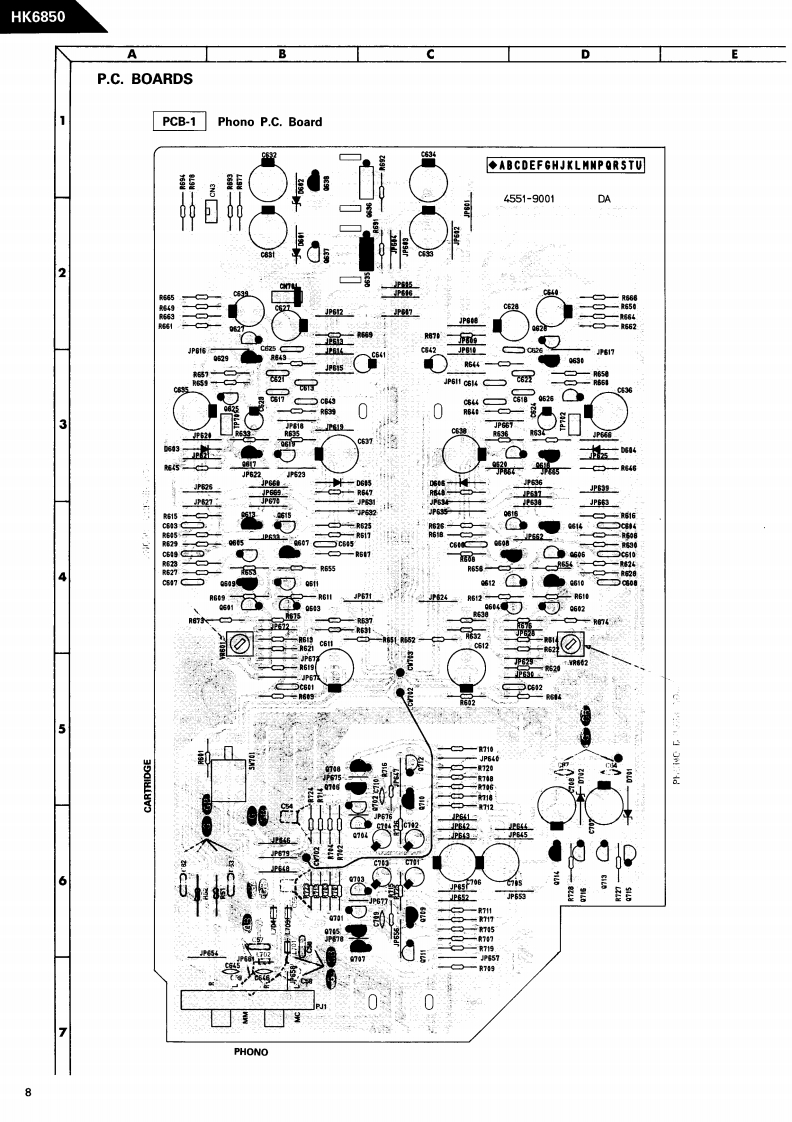

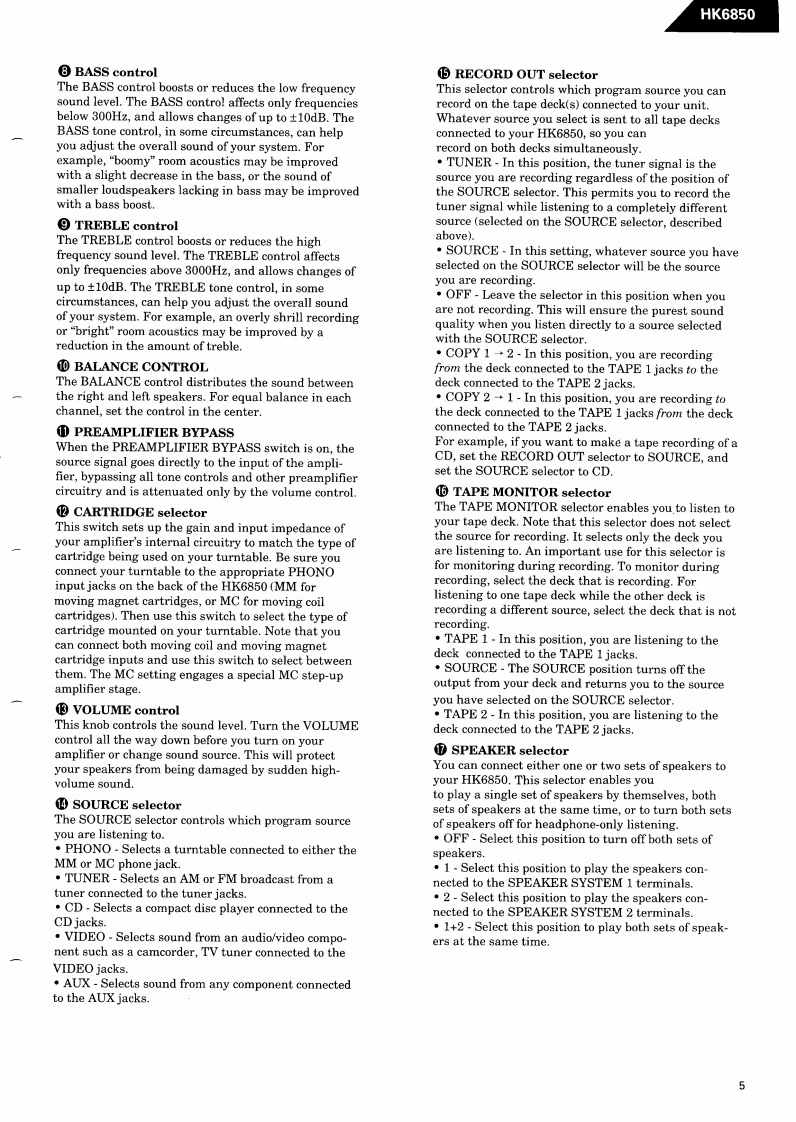

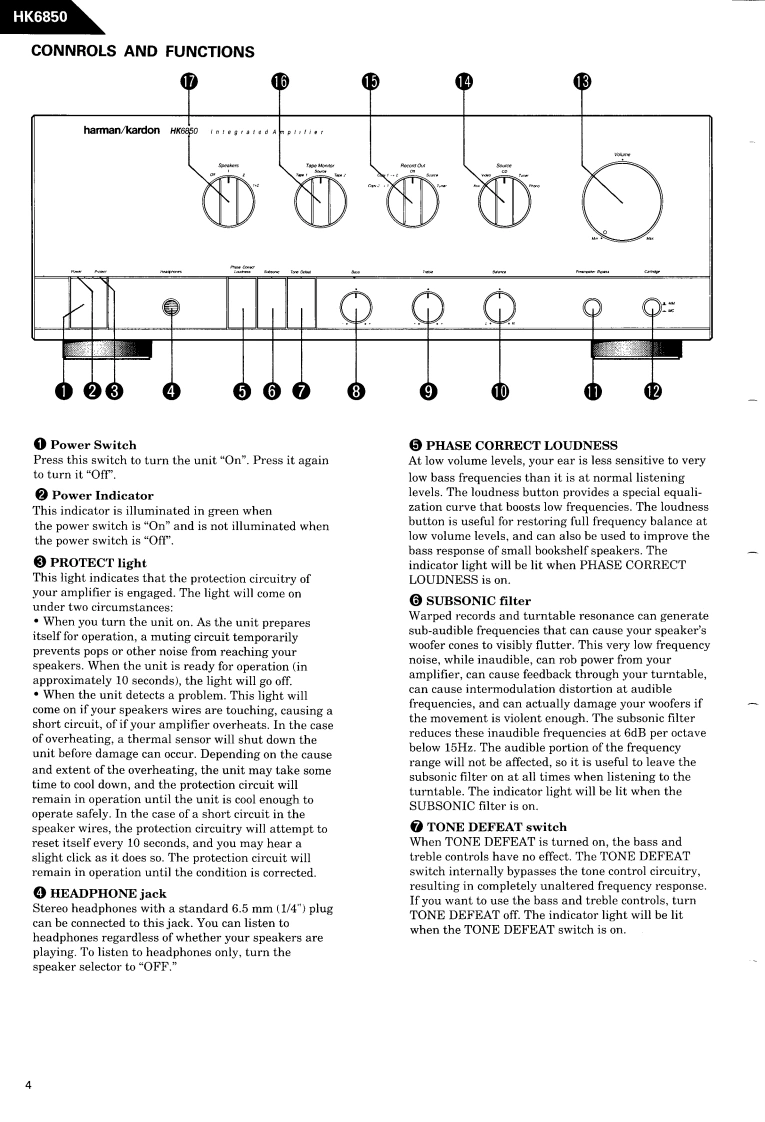

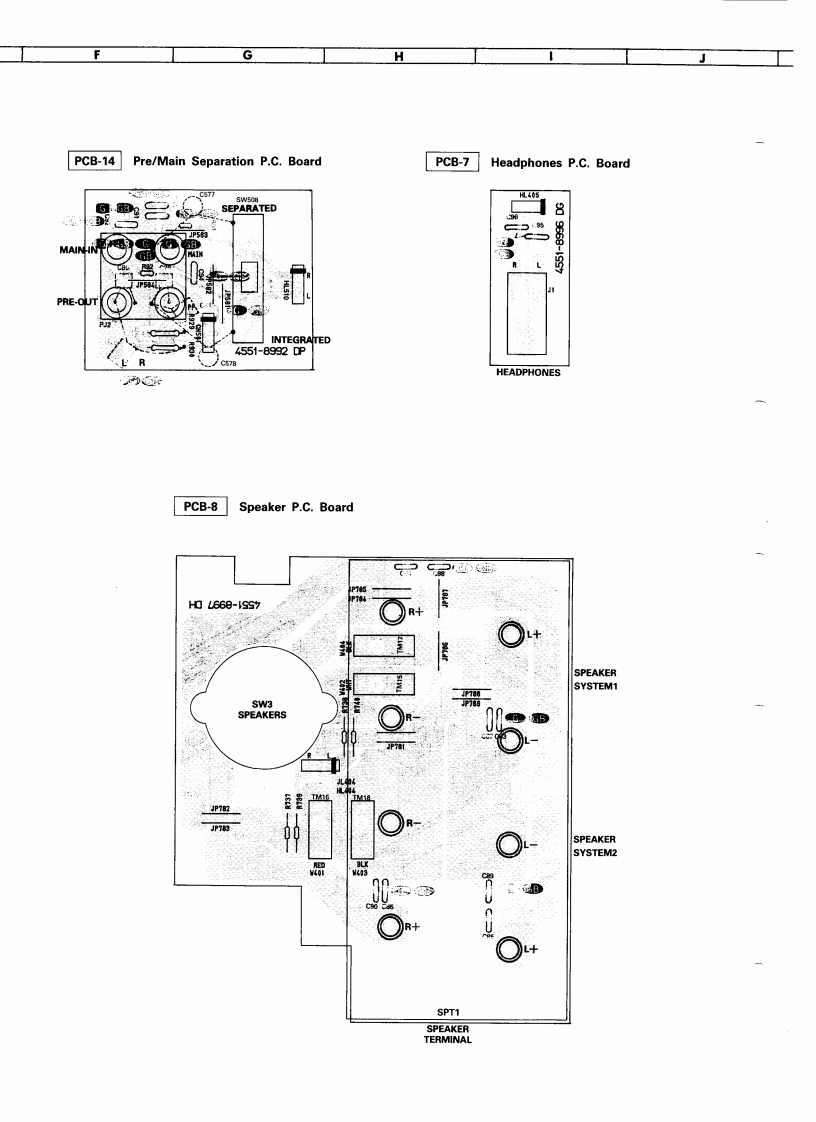

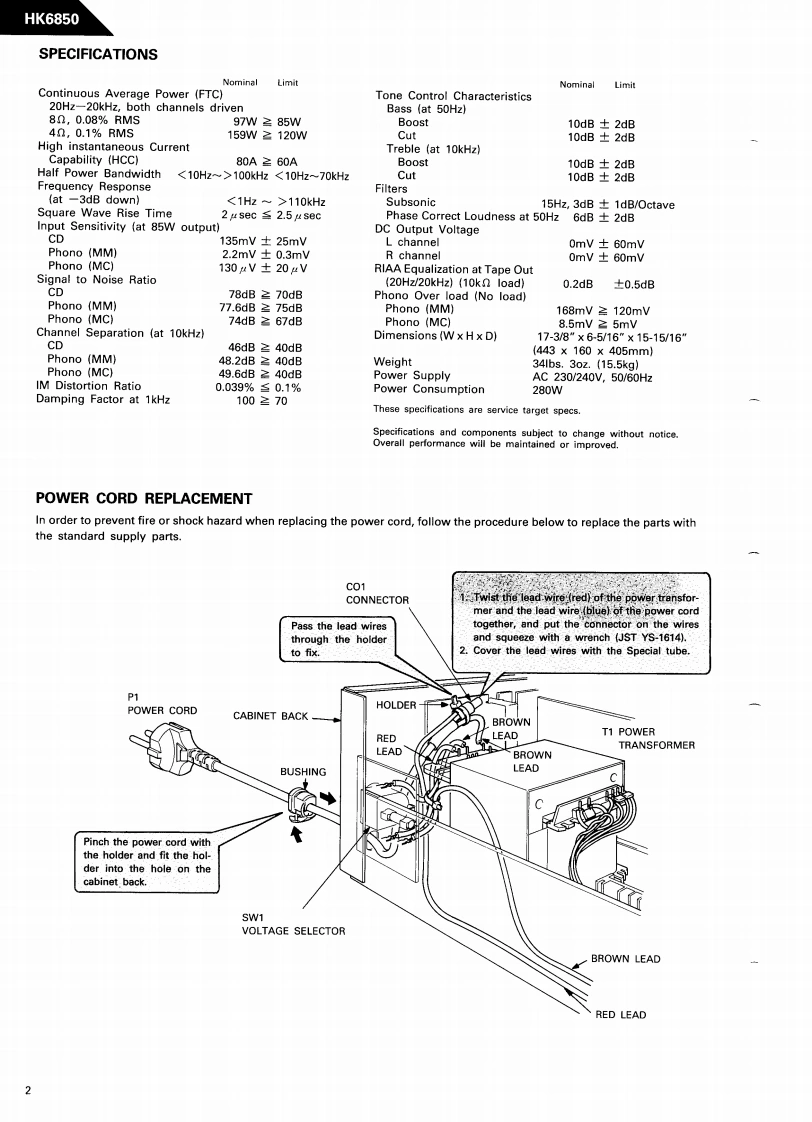

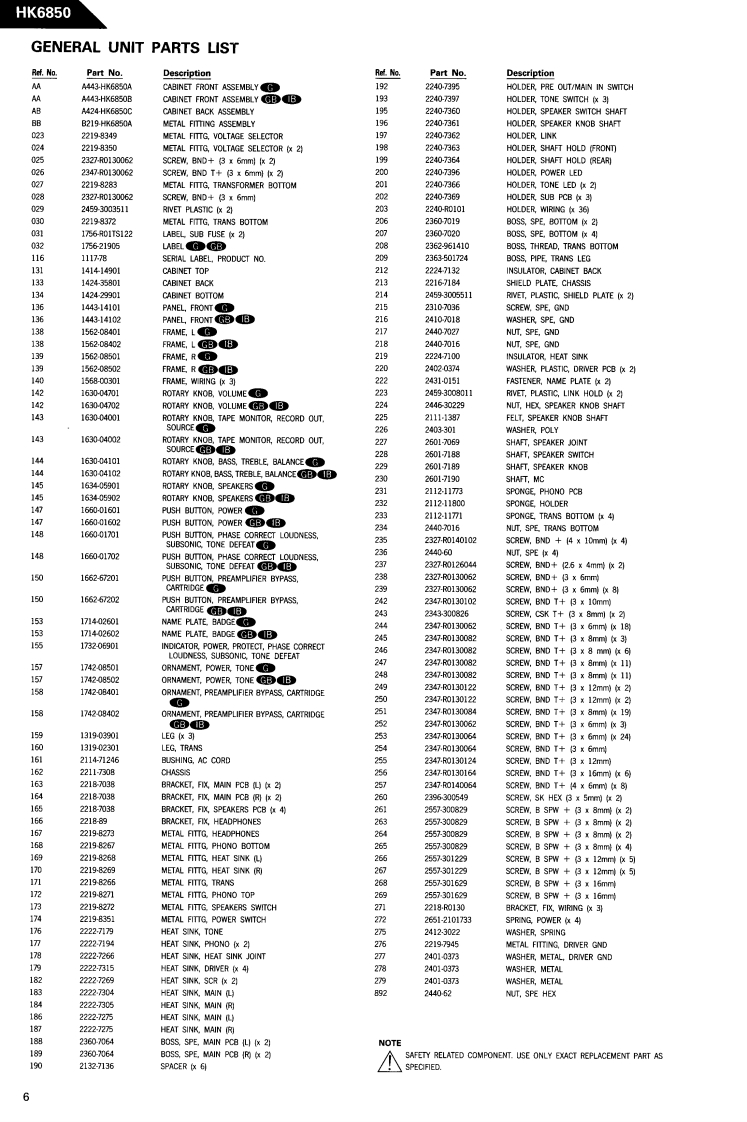

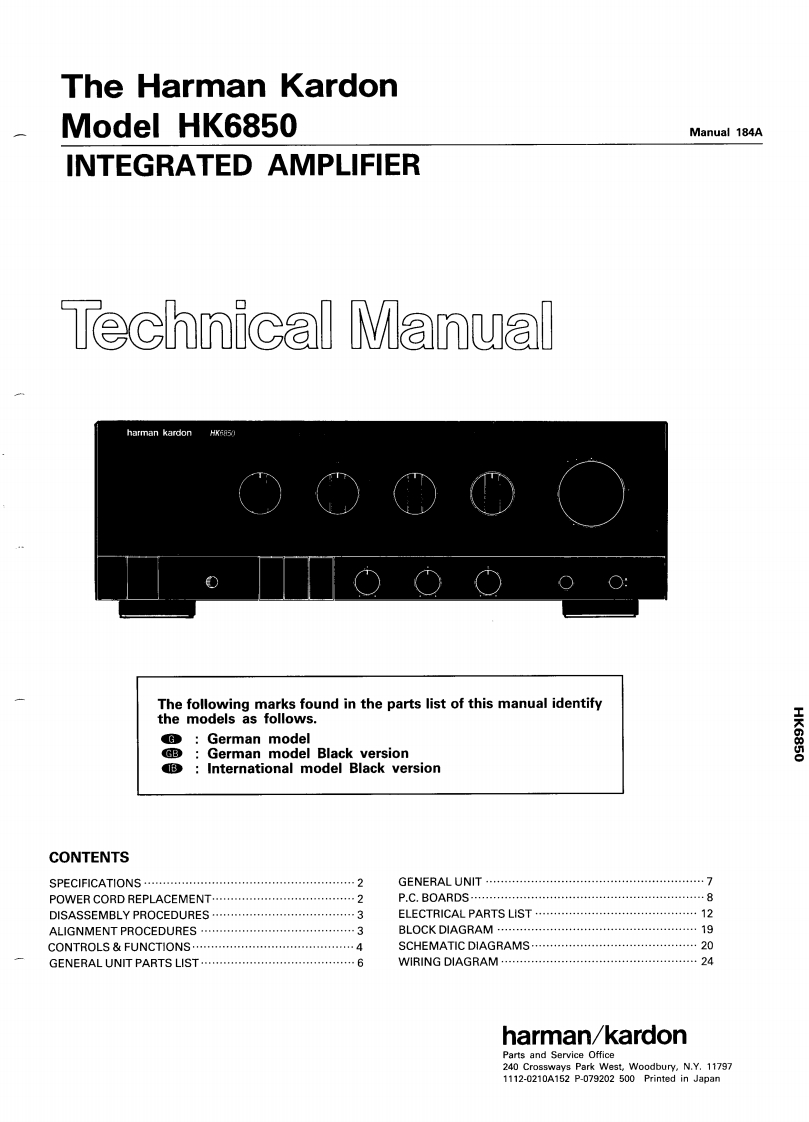

The Harman KardonModel HK6850Manual 184AINTEGRATED AMPLIFIERTechnical Manualharman kardonThe following marks found in the parts list of this manual identifythe models as follows.GGerman modelGBGerman model Black versionHK6850⑧International model Black versionCONTENTSSPECIFICATIONS…2GENERAL UNIT…7POWER CORD REPLACEMENT...........................2PC.B0ARDS…8DISASSEMBLY PROCEDURES...........................3ELECTRICAL PARTS LIST12ALIGNMENT PROCEDURES.............................3BLOCK DIAGRAM…19CONTROLS&FUNCTIONS......4SCHEMATIC DIAGRAMS................20GENERAL UNIT PARTS LIST.................................6WIRING DIAGRAM24harman/kardonParts and Service Office240 Crossways Park West,Woodbury,N.Y.117971112-0210A152 P-079202 500 Printed in Japan
