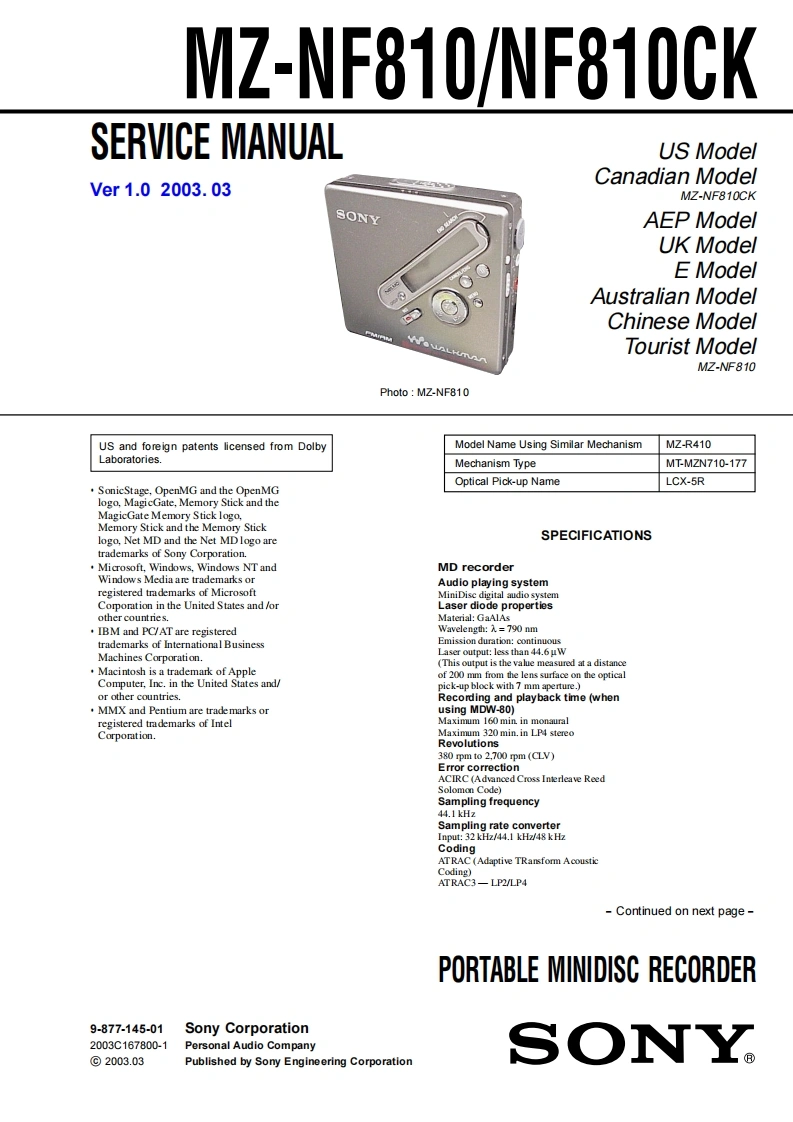

MZ-NF810/NF810CKSERVICE MANUALUS ModelCanadian ModelVer1.02003.03MZ-NF810CKSONYAEP ModelUK ModelEModelAustralian ModelChinese ModelTourist ModelMZ-NF810Photo:MZ-NF810US and foreign patents licensed from DolbyModel Name Using Similar MechanismMZ-R410Laboratories.Mechanism TypeMT-MZN710-177Optical Pick-up NameLCX-5RSonicStage,OpenMG and the OpenMGlogo,MagicGate,Memory Stick and theMagicGate Memory Stick logo,Memory Stick and the Memory Sticklogo,Net MD and the Net MDlogo areSPECIFICATIONStrademarks of Sony Corporation.Microsoft,Windows,Windows NT andMD recorderWindows Media are trademarks orAudio playing systemregistered trademarks of MicrosoftMiniDisc digital audio systemCorporation in the United States and /orLaser diode propertiesother countries.Material:GaAlAsIBM and PC/AT are registeredWavelength:入=790nntrademarks of International BusinessEmission duration:continuousMachines Corporation.Laser output:less than 44.6uW(This output is the value measured at a distanceMacintosh is a trademark of Appleof 200 mm from the lens surface on the opticalComputer,Inc.in the United States and/pick-up block with 7 mm aperture.)or other countries.Recording and playback time (whenMMX and Pentium are trademarks orusing MDW-80)registered trademarks of IntelMaximum 160 min in monauralCorporation.Maximum 320 min.in LP4 stereoRevolutions380 rpm to 2.700 rpm (CLV)Error correctionACIRC (Advanced Cross Interleave ReedSolomon Code)Sampling frequency44.1 kHzSampling rate converterInput:32 kHz/44.1 kHz/48 k HzCodingATRAC (Adaptive TRansform AcousticCoding）ATRAC3一LP2/LP4Continued on next page-PORTABLE MINIDISC RECORDER9-877-145-01Sony Corporation2003C167800-1Personal Audio Company©2003.03Published by Sony Engineering CorporationSONY
