索尼sony_ta-f310r_f410r_维修手册_en

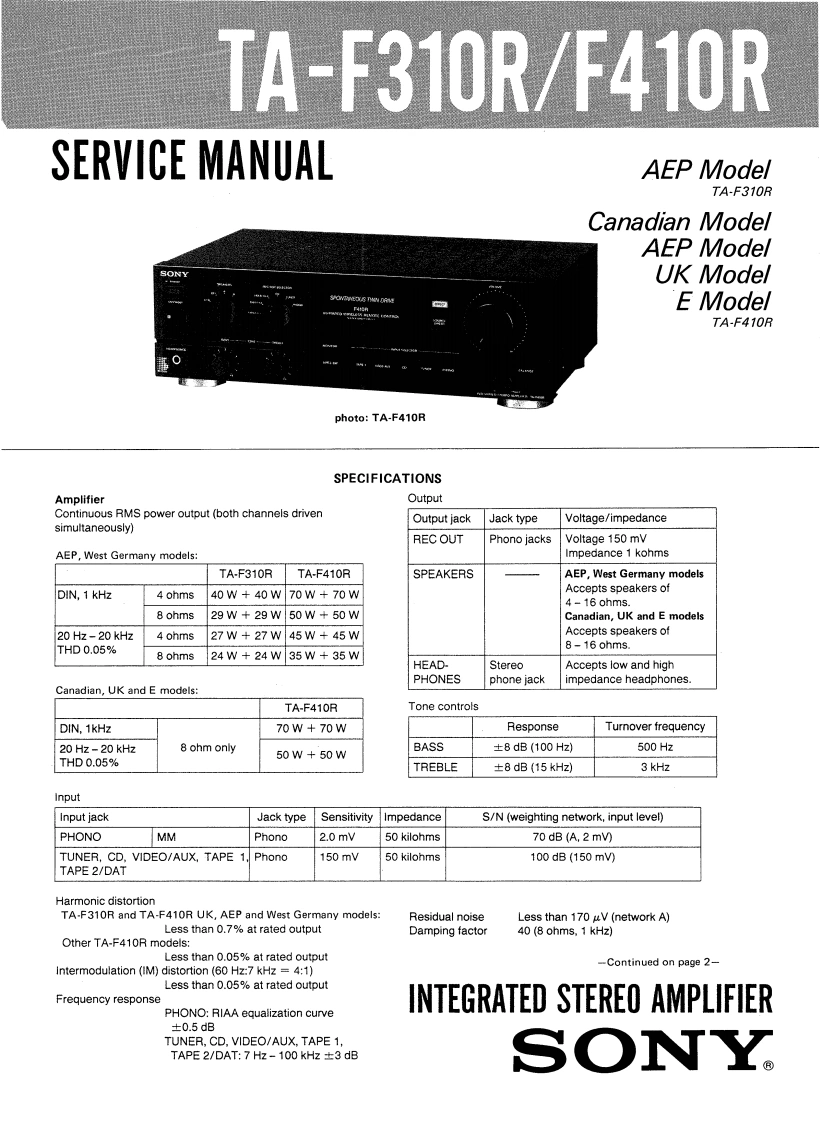

TA-F310R/F410RSERVICE MANUALAEP ModelTA-F310RCanadian ModelAEP ModelUK Model4EModelTA-F410Rphoto:TA-F410RSPECIFICATIONSAmplifierOutputContinuous RMS power output (both channels drivenOutput jackJack typeVoltage/impedancesimultaneously)REC OUTPhono jacksVoltage 150 mVAEP,West Germany models:Impedance 1 kohmsTA-F310RTA-F410RSPEAKERSAEP,West Germany modelsDIN,1 kHz4ohms40W+40W70W+70WAccepts speakers of4-16 ohms.8 ohms29W+29W50W+50WCanadian,UK and E models20 Hz-20 kHz4 ohms27W+27W45W+45WAccepts speakers ofTHD0.05%8-16 ohms.8 ohms24W+24W35W+35WHEADStereoAccepts low and highPHONESphone jackimpedance headphones.Canadian,UK and E models:TA-F410RTone controlsDIN,1kHz70W+70WResponseTurnover frequency20 Hz-20 kHz8 ohm onlyBASS±8dB(100Hz)500Hz50W+50WTHD0.05%TREBLE±8dB(15kHz)3 kHzInputInput jackJack typeSensitivityImpedanceS/N (weighting network,input level)PHONOMMPhono2.0mv50 kilohms70dB(A.2m0TUNER,CD,VIDEO/AUX,TAPE 1,Phono150mW50 kilohms100dB(150mV0TAPE 2/DATHarmonic distortionTA-F310R and TA-F410R UK,AEP and West Germany models:Residual noiseLess than 170 uV(network A)Less than 0.7%at rated outputDamping factor40 (8 ohms,1 kHz)Other TA-F410R models:Less than 0.05%at rated outputIntermodulation (IM)distortion(60 Hz:7 kHz =4:1)-Continued on page 2-Less than 0.05%at rated outputFrequency responseINTEGRATED STEREO AMPLIFIERPHONO:RIAA equalization curve±0.5dBTUNER,CD,VIDEO/AUX.TAPE 1,TAPE 2/DAT:7 Hz-100 kHz =3 dBSONY
