爱华Aiwa-AP-2200-维修手册

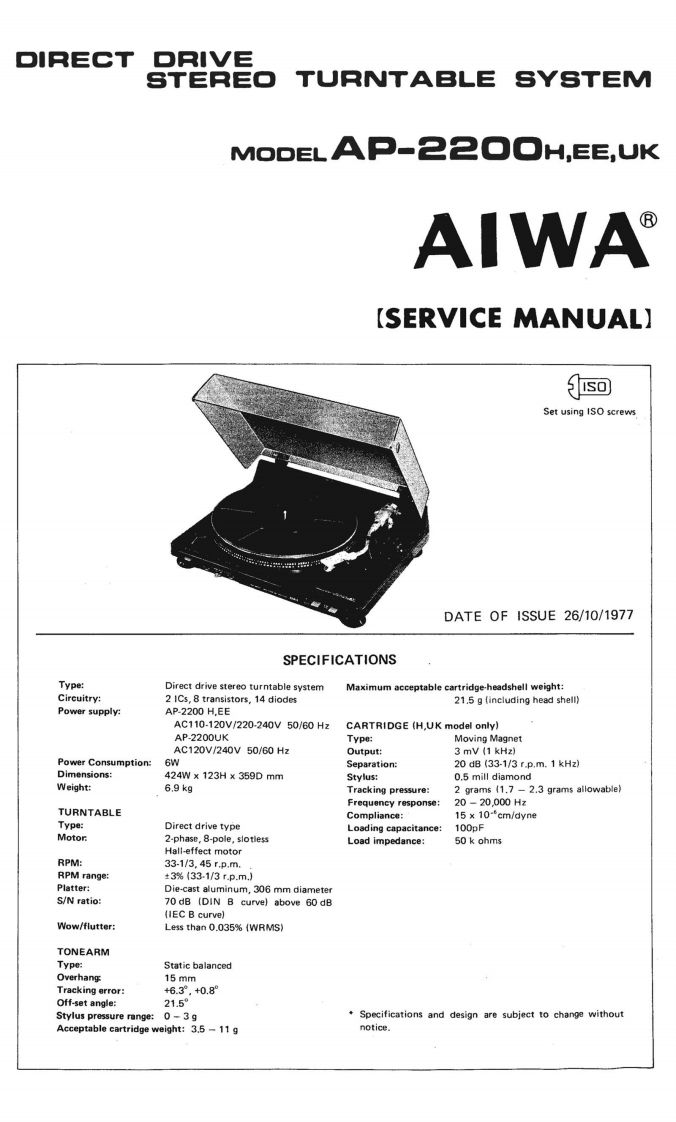

DIRECTDRIVESTEREOTURNTABLE SYSTEMMODEL AP-2200H,EE,UKAIWA(SERVICE MANUAL】soSet using ISO screws出写DATE OF ISSUE 26/10/1977SPECIFICATIONSType:Direct drive stereo turntable systemMaximum acceptable cartridge-headshell weight:Cireuitry:2 ICs,8 transistors,14 diodes21.5 g (including head shell)Power supply:AP-2200 H,EEAC110-120V/220-240V50/60HzCARTRIDGE (H,UK model only)AP-2200UKType:Moving MagnetAC120V/240V50/60HzOutput:3 mV (1 kHz)Power Consumption:6wSeparation20dB(33-1/3r.p.m.1kHz)Dimensions:424w×123H×359DmmStylus:0.5 mill diamondWeight:6,9kgTracking pressure:2 grams (1.7 -2.3 grams allowable)Frequency response:20-20.000HzTURNTABLECompliance:15×10-cm/dyneType:Direct drive typeLoading capacitance:100pFMotor:2-phase,8-pole,slotlessLoad impedance:50k ohmsHall-effect motorRPM:33-1/3.45r.p.m.RPM range:±3%(331/3r.p.m.】Platter:Die-cast aluminum,306 mm diameterS/N ratio:70 dB [DIN B curve)above 60 dB(IEC B curve)Wow/flutter:Less than 0.035%(WRMS)TONEARMType:Static balancedOverhang15 mmTracking error:6.3.+0.8Off-set angle:21.5Stylus pressure range:0-3 g.Specifications and design are subjeet to change withoutAcceptable cartridge weight:3.5-11 gnotice.
