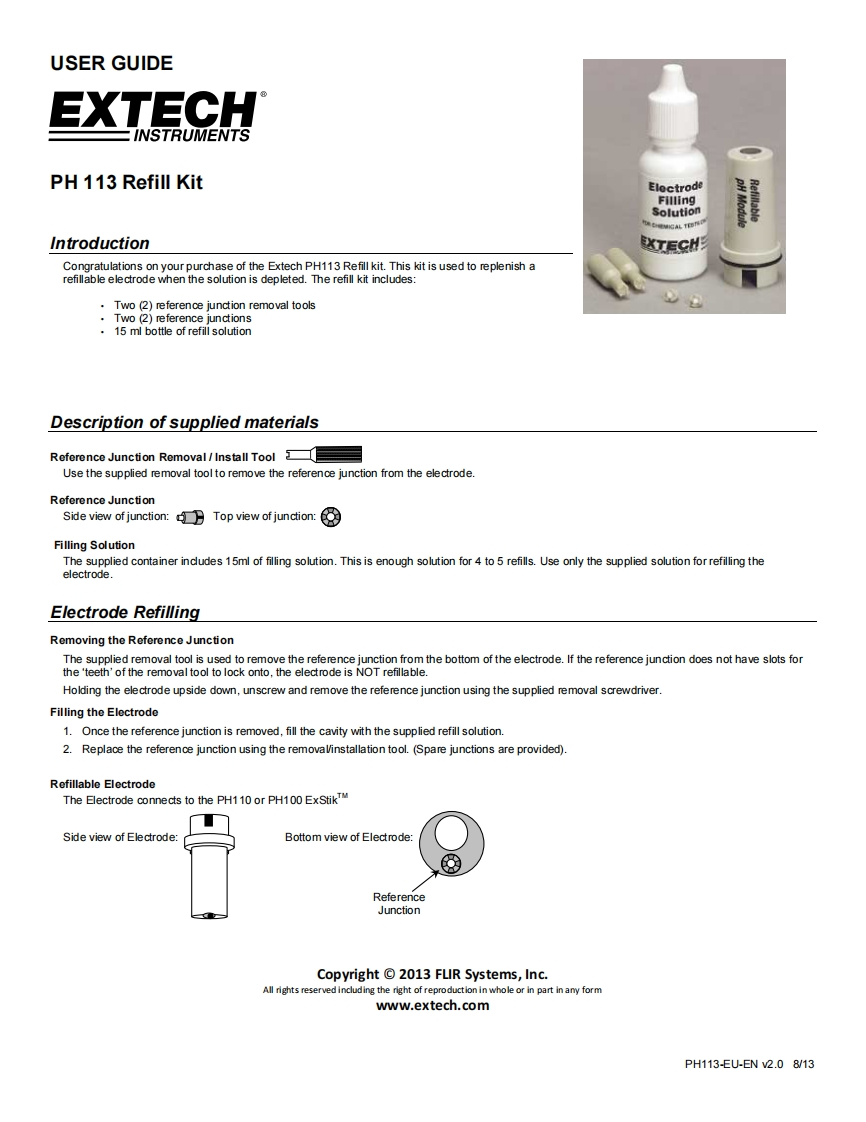

USER GUIDEEXTECHINSTRUMENTSPH 113 Refill KitElectrodeFillingSolutionIntroduction赵TEHCongratulations on your purchase of the Extech PH113 Refill kit.This kit is used to replenish arefillable electrode when the solution is depleted.The refill kit includes:Two (2)reference junction removal toolsTwo (2)reference junctions15 ml bottle of refill solutionDescription of supplied materialsReference Junction Removal/Install ToolUse the supplied removal tool to remove the reference junction from the electrode.Reference JunctionSide view of junction:Top view of junction:®Filling SolutionThe supplied container indludes 15ml of filling solution.This is enough solution for 4 to 5 refills.Use only the supplied solution for refilling theelectrode.Electrode RefillingRemoving the Reference JunctionThe supplied removal tool is used to remove the reference junction from the bottom of the electrode.If the reference junction does not have slots forthe 'teeth'of the removal tool to lock onto,the electrode is NOT refillable.Holding the electrode upside down,unscrew and remove the reference junction using the supplied removal screwdriver.Filling the Electrode1.Once the reference junction is removed,fill the cavity with the supplied refill solution2.Replace the reference junction using the removalinstallation tool.(Spare junctions are provided).Refillable ElectrodeThe Electrode connects to the PH110 or PH100 ExStikTMSide view of Electrode:Bottom view of Electrode:ReferenceJunctionCopyright 2013 FLIR Systems,Inc.All rights reserved including the right of reproduction in whole or in part in amy formwww.extech.comPH113-EU-EN2.08/13
