爱华Aiwa-HV-FX5100-维修手册

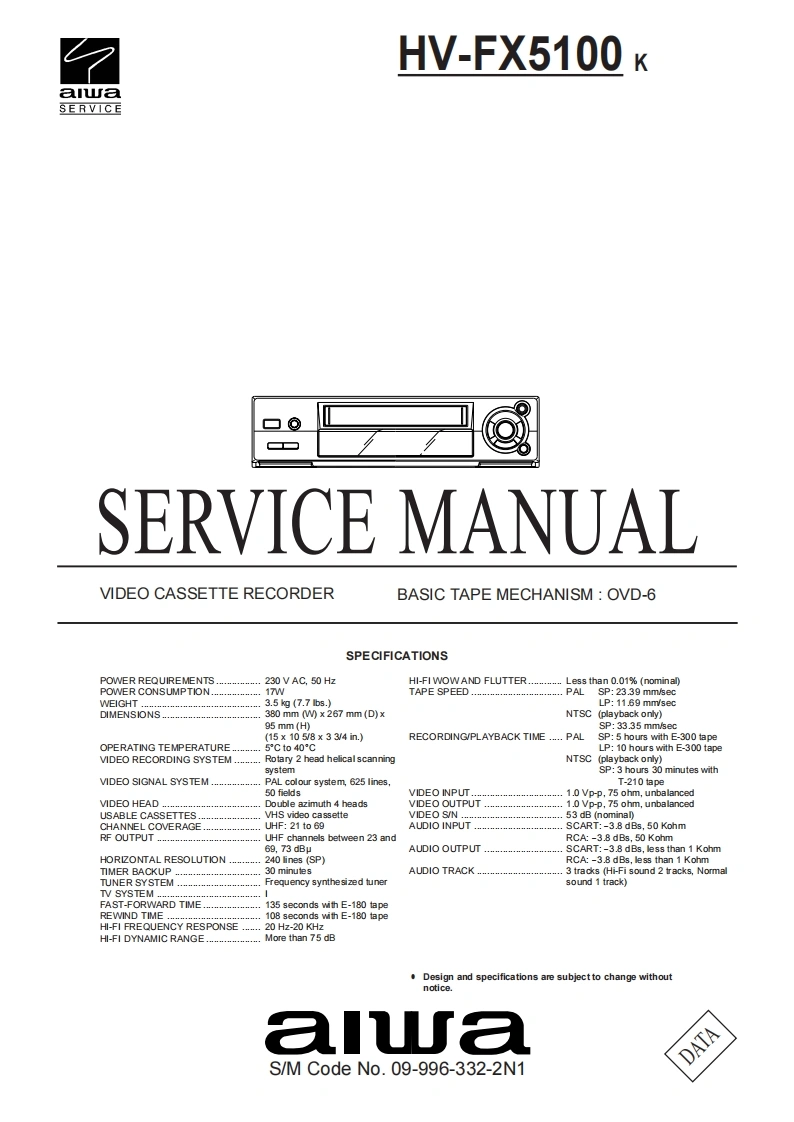

HV-FX5100 kaI山waSERVICE口SERVICE MANUALVIDEO CASSETTE RECORDERBASIC TAPE MECHANISM OVD-6SPECIFICATIONSPOWER REQUIREMENTS230 VAC,50 HzHI-FI WOWAND FLUTTERLess than 0.01%(nominal)POWER CONSUMPTION.17WTAPE SPEED...PALSP:2339 mm/secWEIGHT3.5g(7.7bs.)LP:11.69 mm/sec380 mm (W)x 267 mm (D)xNTSC(playback onty)95 mm(H)SP:33.35 mm/sec15x105/8x33/4in.)RECORDING/PLAYBACK TIME.....PALSP:5 hours with E-300 tapeOPERATING TEMP ERATURE..........5C1040CLP:10 hours with E-300 tapeVIDEO RECORDING SYSTEMRotary 2 head helical scanningNTSC (playback only)systemSP:3 hours 30 minutes withVIDEO SIGNAL SYSTEMPAL colour system,625 linesT-210 tape50 fieldsVIDEO INPUT1.0 Vp-p,75 ohm,unbalancedVIDEO HEAD.Double azimuth 4 headsVIDEO OUTPUT1.0 Vp-p,75 ohm,unbalancedUSABLE CASSETTESVHS video cassetteVIDEO S/N..53 dB (nominal)CHANNEL COVERAGEUHF:21 to 69AUDIO INPUTSCART:-3.8 dBs,50 KohmRF OUTPUT ..UHF channels between 23 andRCA:-3.8 dBs,50 Kohm68,73dB/AUDIO OUTPUTSCART:-3.8 dBs,less than 1 KohmHORIZONTAL RESOLUTION...........240 lines (SP)RCA:-3.8 dBs,less than 1 KohmTIMER RACKUP30 minutesAUDIO TRACK3 tracks (Hi-Fi sound 2 tracks,NormalTUNER SYSTEMFrequency synthe sized tunersound 1 track)TV SYSTEM.FAST-FORWARD TIME135 seconds with E-180 tapeREWIND TIME108 seconds with E-180 tapeHI-FI FREQUENCY RESPONSE20 Hz-20 KHzHI-FI DYNAMIC RANGEMore than 75 dBDesign and specifications are subject to change withoutnotice.auaDATAS/M Code No.09-996-332-2N1
