爱华Aiwa-PX-E860-维修手册

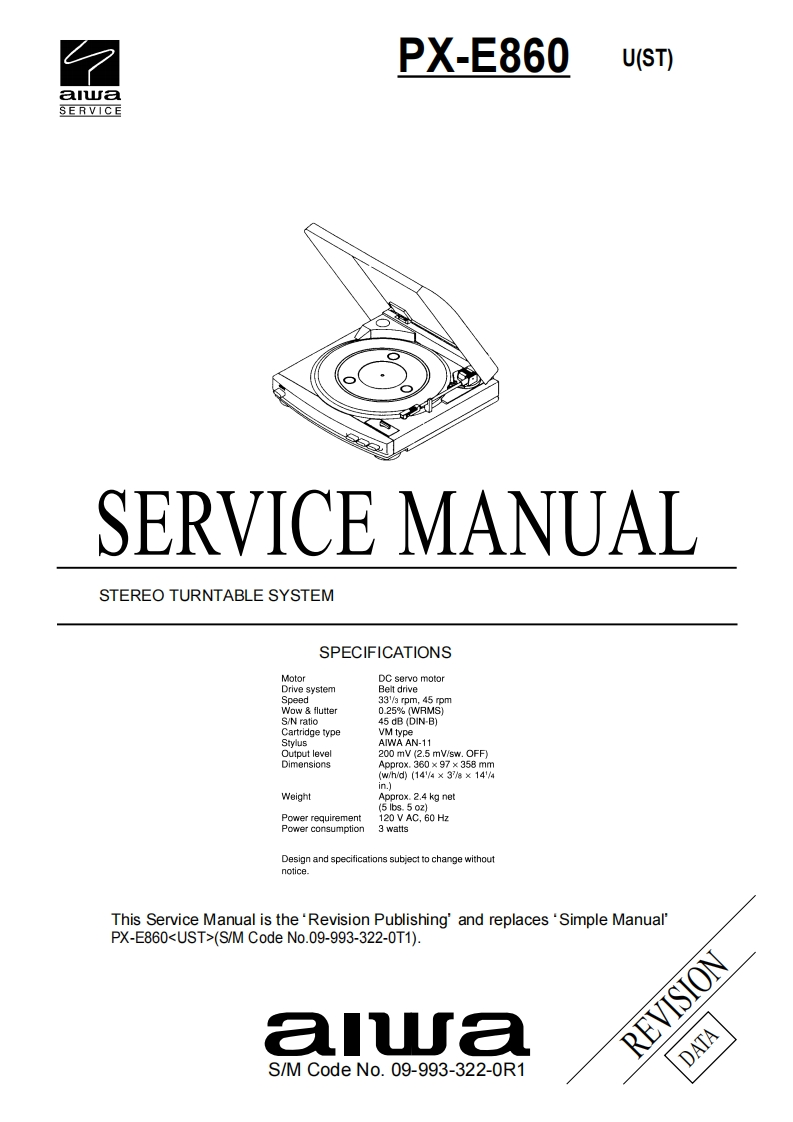

PX-E860U(ST)aiwaSERVICE之作SERVICE MANUALSTEREO TURNTABLE SYSTEMSPECIFICATIONSMotorDC servo motorDrive systemBelt driveSpeed33'为pm,45pmWow flutter0.25%WRMS)SIN ratio45 dB (DIN-B)Cartridge typeVM typeStylusAIWA AN-11Output level200 mV (2.5 mV/sw.OFF)Dimensionso (11in.)WeightApprox.2.4 kg net5b8.50zPower requirement120 V AC,60 HzPower consumption3 wattsDesign and specifications subject to change withoutnotice.This Service Manual is the'Revision Publishing'and replaces 'Simple Manual'PX-E860(S/M Code No.09-993-322-0T1).auaREVISIONDATAS/M Code No.09-993-322-0R1
