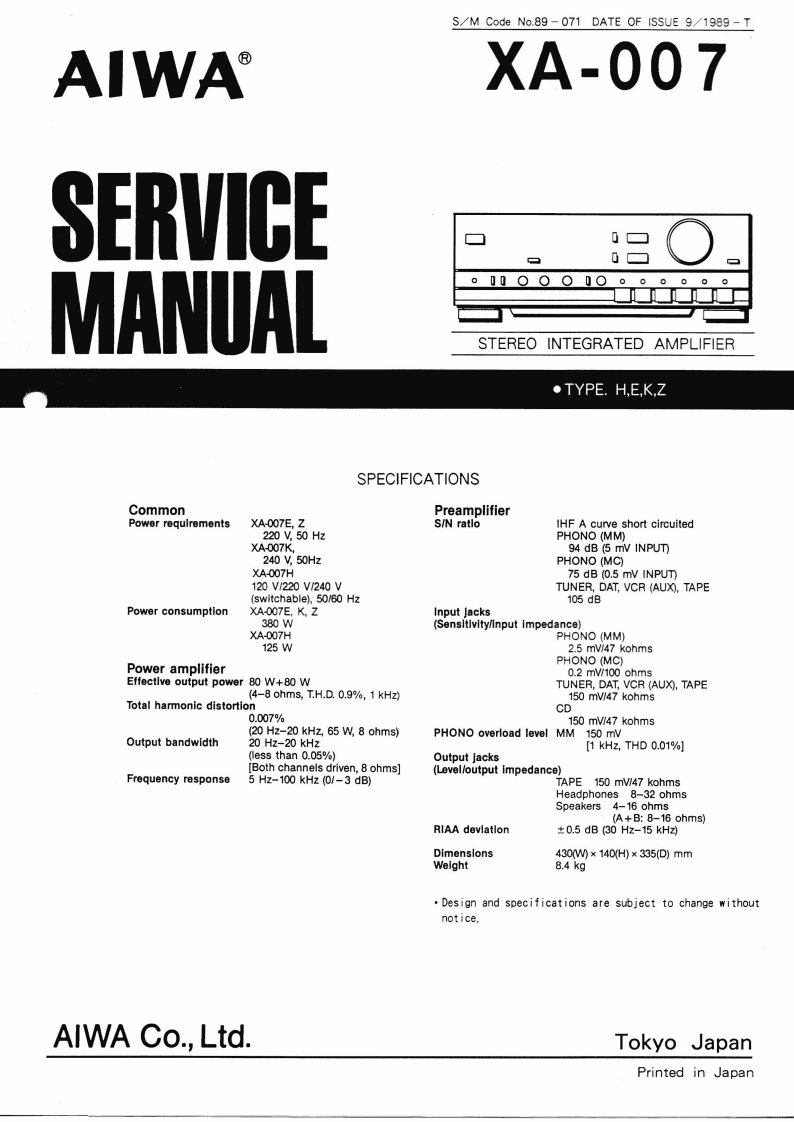

爱华Aiwa-XA-007-维修手册

S/M Code No.89-071 DATE OF ISSUE 9/1989-TAIWAXA-007SERVICE0▣MANUALSTEREO INTEGRATED AMPLIFIER·TYPE.H,E,K,ZSPECIFICATIONSCommonPreamplifierPower requlrementsXA-007E,ZS/N ratioIHF A curve short circuited220V,50HzPHONO (MM)XA-007K.94 dB (5 mV INPUT)240V,50HzPHONO (MC)XA-007H75 dB (0.5 mV INPUT)120V/220V240VTUNER,DAT,VCR (AUX),TAPE(switchable),50/60 Hz105dBPower consumptionXA-007E,K.ZInput jacks380W(Sensitivity/input impedance)XA-007HPHONO (MM)125W2.5 mV/47 kohmsPHONO (MC)Power amplifier0.2 mV/100 chmsEffective output power 80 W+80 WTUNER,DAT,VCR (AUX),TAPE(4-8ohm3,T.H.D.0.9%,1kHz150 mV/47 kohmsTotal harmonic distortionCD0.007%150 mV/47 kohms(20 Hz-20 kHz,65 W,8 ohms)PHONO overload level MM 150 mVOutput bandwidth20 Hz-20 kHz[1kHz,THD0.01%】(less than 0.05%)Output JacksBoth channels driven,8 ohms](Level/output impedance)Frequency response5Hz-100kHz(0/-3dB)TAPE 150 mV/47 kohmsHeadphones 8-32 ohmsSpeakers 4-16 ohms(A+B:8-16 ohms)RIAA devlation±0.5dB30Hz-15kHDimensions4300M×140H)×335(D)mmWeight8.4kgDesign and specifications are subject to change withoutnotice.AlWA Co..Ltd.Tokyo JapanPrinted in Japan
