爱华Aiwa-XC-007-维修手册

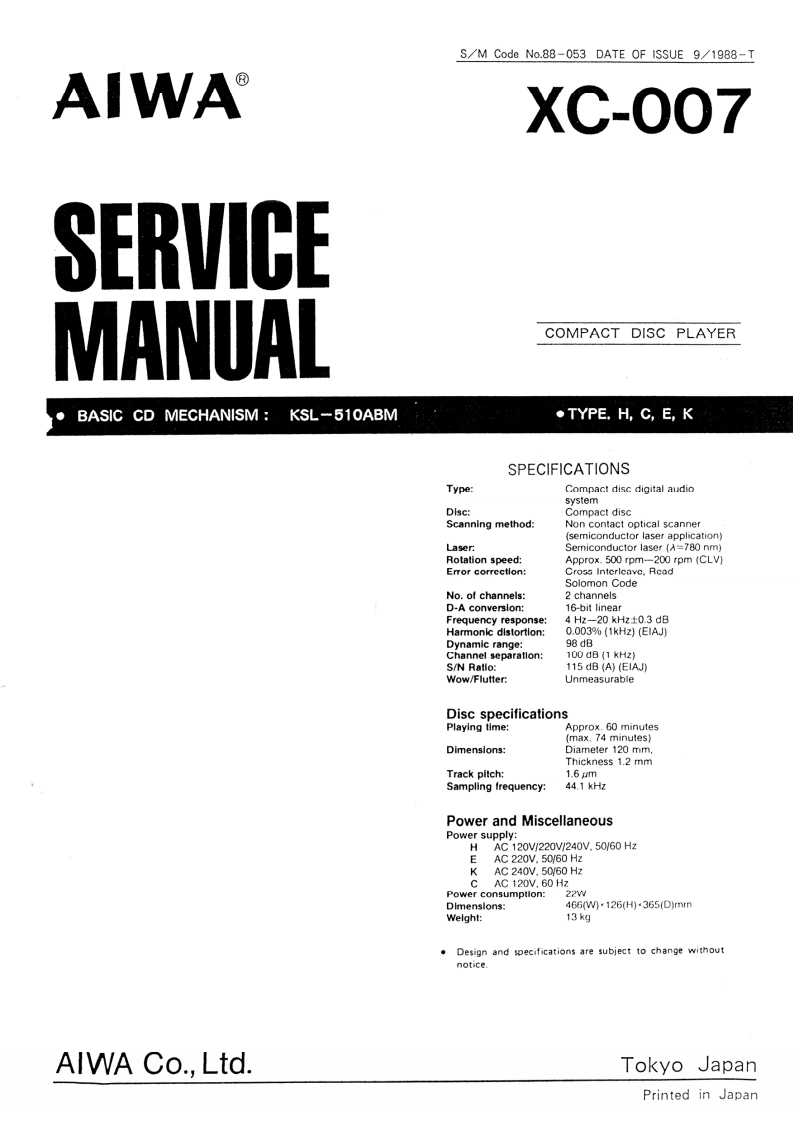

S/M Code No.88-053 DATE OF ISSUE 9/1988-TAIWAX℃-007SERVICEMANUALCOMPACT DISC PLAYERBASIC CD MECHANISM:KSL-510ABM◆TYPE,H,C,E,KSPECIFICATIONSTypeCompact disc digital audiosystemDisc:Compact discScanning method:Non contact optical scanner(semiconductor laser applicationLaser:Semiconductor laser (A=780 nm)Rotation speed:Approx.500 rpm--200 rpm (CLV)Eror correction:Cross Interleave.ReadSolomon CodeNo.of channels:2 channelsD-A conversion:16-bit linearFrequency response:4Hz-20kHz±0.3dEHarmonic distortlon:0.003%(1kHz)(E1AJ)Dynamic range:98 dBChannel separation:100 dB (1 kHz)S/N Ratlo:115dB(AJ(EIAJ月Wow/Flutter:UnmeasurableDisc specificationsPlaying timeApprox.60 minutes(max.74 minutes)DimenslonsDiameter 120 mm.Thickness 1.2 mmTrack pitch:1.6mSampling frequency:44.1 kHzPower and MiscellaneousPower supply:HAC120V∥220W/240V.50/60HzEAC220V.50/60HzAC240V,5060HzAC 120V,60 HzPower consumptlon:22WDimenslons:466(W0·126(H)365(D)mnrnWelght:13kg.Design and specifications are subject to change withoutnoticeAIWA Co.,Ltd.Tokyo JapanPrinted in Japan
