BXпрокладки.ДопускипоASMEB16.20иAPI6Aи17D

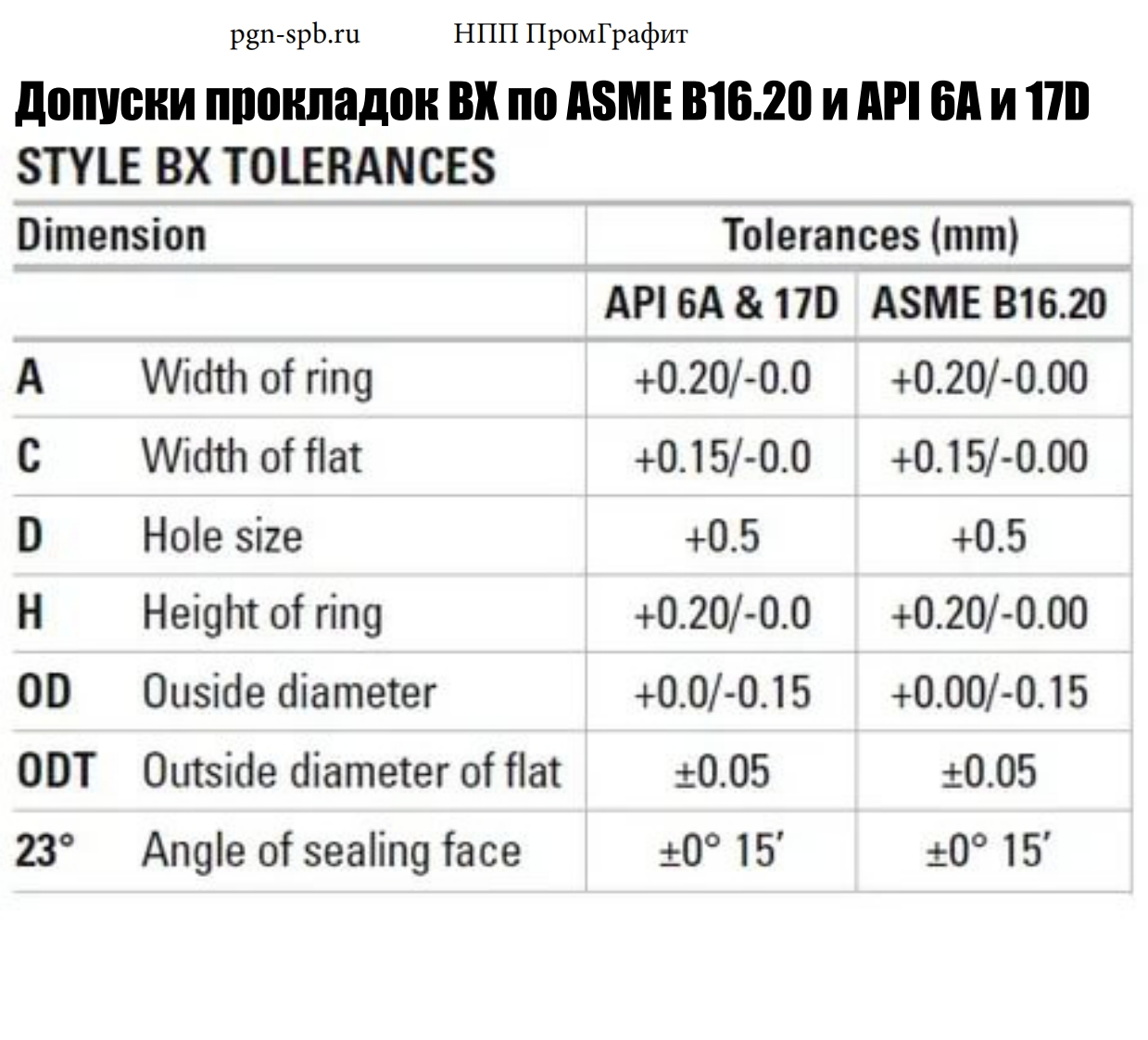

pgn-spb.ruHIIIΠpoMTpa中Tonyckn npoknagok BX no ASME B16.20 M API 6A M 17DSTYLE BX TOLERANCESDimensionTolerances(mm)API6A 17DASME B16.20AWidth of ring+0.20/-0.0+0.20/-0.00CWidth of flat+0.15/-0.0+0.15/-0.00DHole size+0.5+0.5HHeight of ring+0.20/-0.0+0.20/-0.00ODOuside diameter+0.0/-0.15+0.00/-0.15ODT Outside diameter of flat±0.05±0.0523 Angle of sealing face±0°15±0°15
