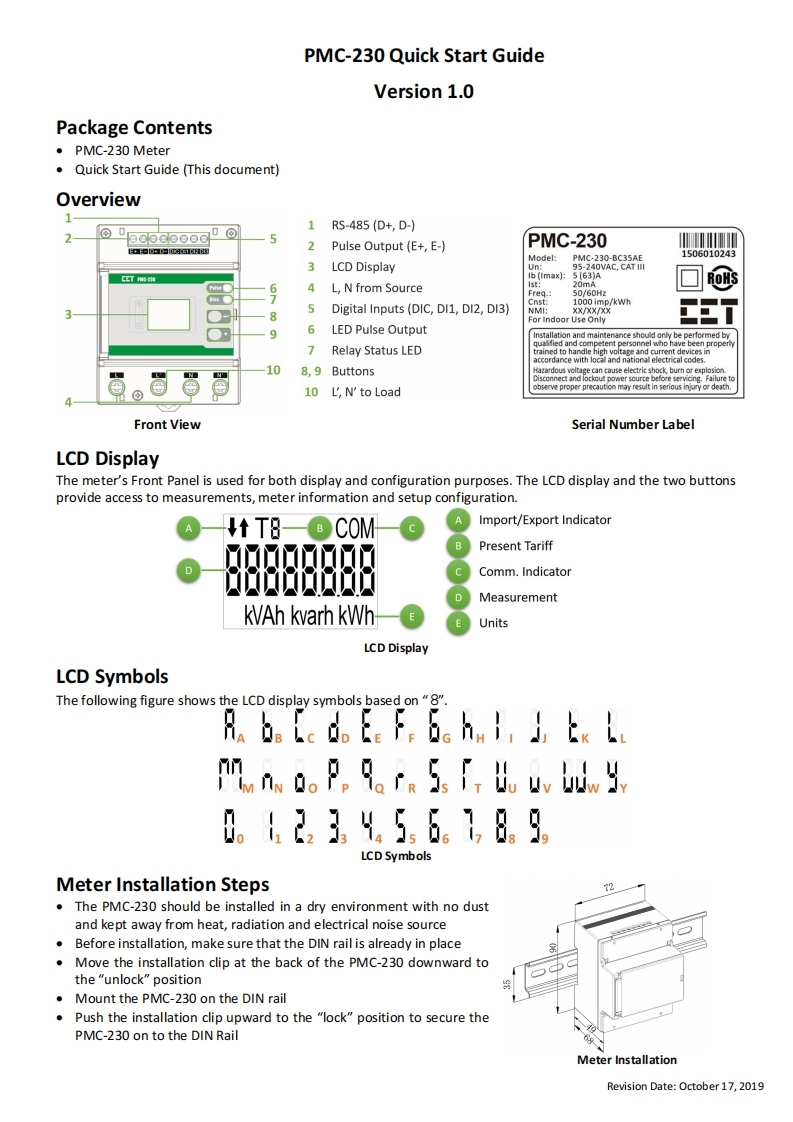

PMC-230 Quick Start GuideVersion 1.0Package Contents·PMC-230 Meter.Quick Start Guide (This document)Overview11RS-485(D+,D-)2--52Pulse Output (E+,E-)PMC-230LModel:PMC-230-BC35AE15060102433 LCD DisplayUn:95-240VAC,CAT IIIEETIb (Imax]:5(63)A64L,N from Source0/60H00015/kWhDigital Inputs (DIC,DI1,DI2,DI3)X/XX/XX8For Indoor Use Only96 LED Pulse Output1Relay Status LEDaccordance with local and national electrical codes.■■108,9 Buttons10 L',N'to LoadFront ViewSerial Number LabelLCD DisplayThe meter's Front Panel is used for both display and configuration purposes.The LCD display and the two buttonsprovide access to measurements,meter information and setup configuration.↓tT8-⑧COMImport/Export IndicatorPresent TariffComm.IndicatorMeasurementKVAh kvarh kWhUnitsLCD DisplayLCD SymbolsThe following figure shows the LCD display symbols based on "8"Rab。【ed。fefe6ehni,kxl。P,9。r.Ss「，u bw出y0.122324456.128.99LCD SymbolsMeter Installation Steps72The PMC-230 should be installed in a dry environment with no dustand kept away from heat,radiation and electrical noise sourceBefore installation,make sure that the DIN rail is already in placeMove the installation clip at the back of the PMC-230 downward tothe"unlock"position.Mount the PMC-230 on the DIN railPush the installation clip upward to the "lock"position to secure thePMC-230 on to the DIN RailMeter InstallationRevision Date:October 17,2019
