PMC-512-A快速操作说明书手册V1.00(20190813)

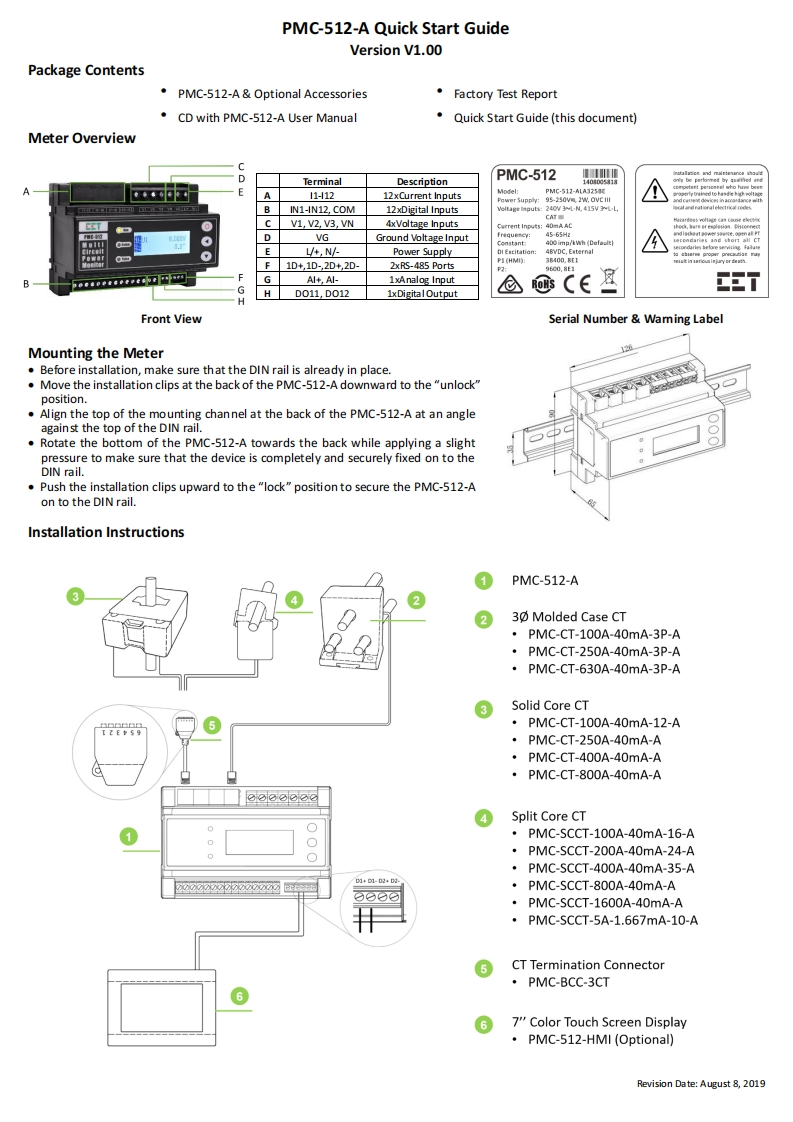

PMC-512-A Quick Start GuideVersion V1.00Package Contents.PMC-512-A&Optional Accessories·Factory Test Report.CD with PMC-512-A User Manual.Quick Start Guide(this document)Meter OverviewTerminalDescriptionPMC-51244000541A11-1212xCurrent InputsModel:BIN1-IN12,COM12xDigital InputscV1,V2,V3,VN4xVoltage InputsCurrent Inputs:40mAACDVGGround Voltage Input45-652Constant:400imp/kwh (Default)E/+,N/Power SupplyF1D+,1D-,2D+,2D-2xRS-485 Ports(HMI)GA+,A-1xAnalog InputGHD011,D0121xDigital OutputHFront ViewSerial Number Waming LabelMounting the MeterBefore installation,make sure that the DIN rail is already in place.Move the installation clips at the back of the PMC-512-A downward to the "unlock"position..Align the top of the mounting channel at the back of the PMC-512-A at an angleagainst the top of the DIN rail.Rotate the bottom of the PMC-512-A towards the back while applying a slightpressure to make sure that the device is completely and securely fixed on to theDIN rail.Push the installation clips upward to the "lock"position to secure the PMC-512-Aon to the DIN rail.Installation InstructionsPMC-512-A230 Molded Case CTPMC-CT-100A-40mA-3P-APMC-CT-250A-40mA-3P-APMC-CT-630A-40mA-3P-A3Solid Core CTPMC-CT-100A-40mA-12-A·PMC-CT-250A-40mA-A·PMC-CT-400A-40mA-A·PMC-CT-800A-40mA-A4Split Core CTPMC-SCCT-100A-40mA-16-APMC-SCCT-200A-40mA-24-APMC-SCCT-400A-40mA-35-A27070777777707☑1+1-024D2PMC-SCCT-800A-40mA-APMC-SCCT-1600A-40mA-APMC-SCCT-5A-1.667mA-10-A5CT Termination Connector·PMC-BCC-3CT67"Color Touch Screen DisplayPMC-512-HMI (Optional)Revision Date:August 8,2019
