山推-SR12-SR12P-YZ12B-YZK12B-振动压路机零部件目录手册图册

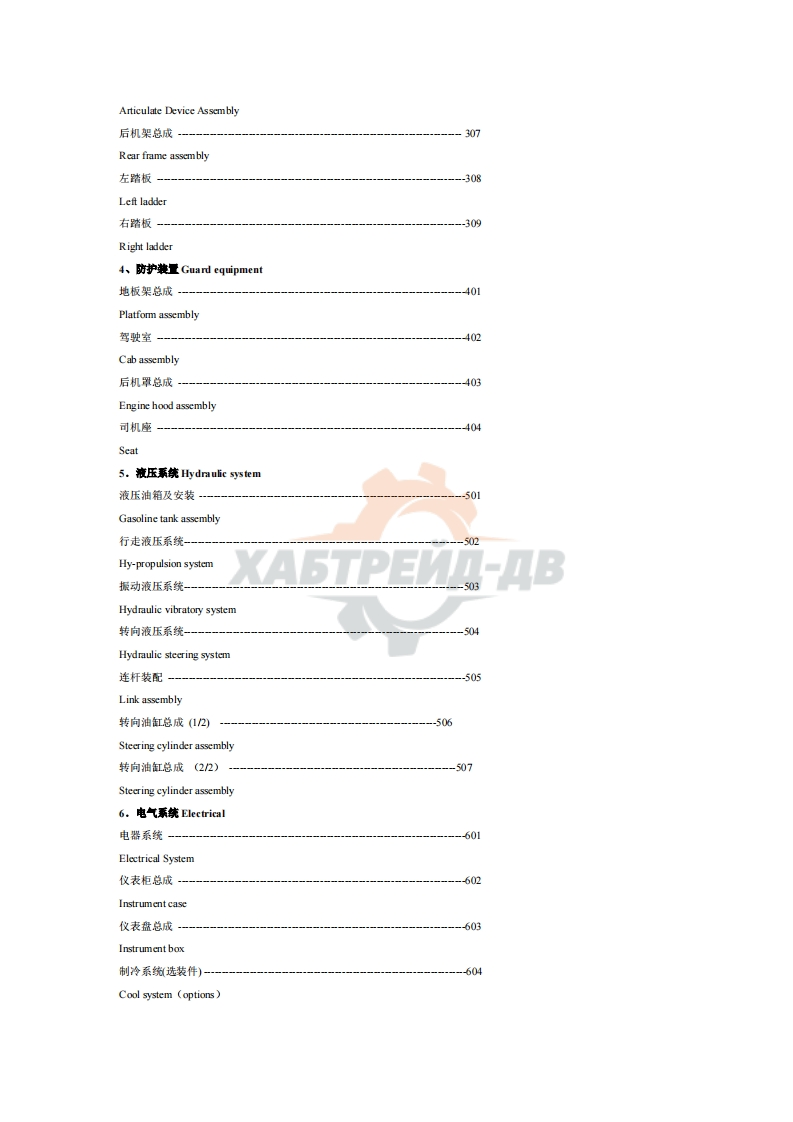

目CONTENTSI,发动机及关联部件Engine Related Parts发动机附件及安装-101Engine assembly操纵系统一一-102Control system分动箱装配-103Wheel box assembly2,传动及操纵部件Drive and control assembly传动系统-201Transmission system驱动桥一一.-202Drive bridge制动器-203Brake主减速器-204Main speed reducer手刹车装置205Hand brake三速变速箱总成-KASTPEME-BThree-speed gear box手刹车及变速操纵系统-207Hand brake and speed-control脚利车总成208Foot brake后轮总成.-209Wheels Assembly3.主机架及工作装量Main Frame and workequipment前机架总成(SR12、YZ12B)--301Drum Frame assembly前机架总成(SR12P、YZK12B-302Drum Frame assembly振动轮总成(12)303Drum assembly振动轮总成22)304Drum assembly凸块轮SR12P、YZK12B)305Pad feet drum assembly铰接总成306
