飞利浦FWC115_compressed维修手册电器原理图

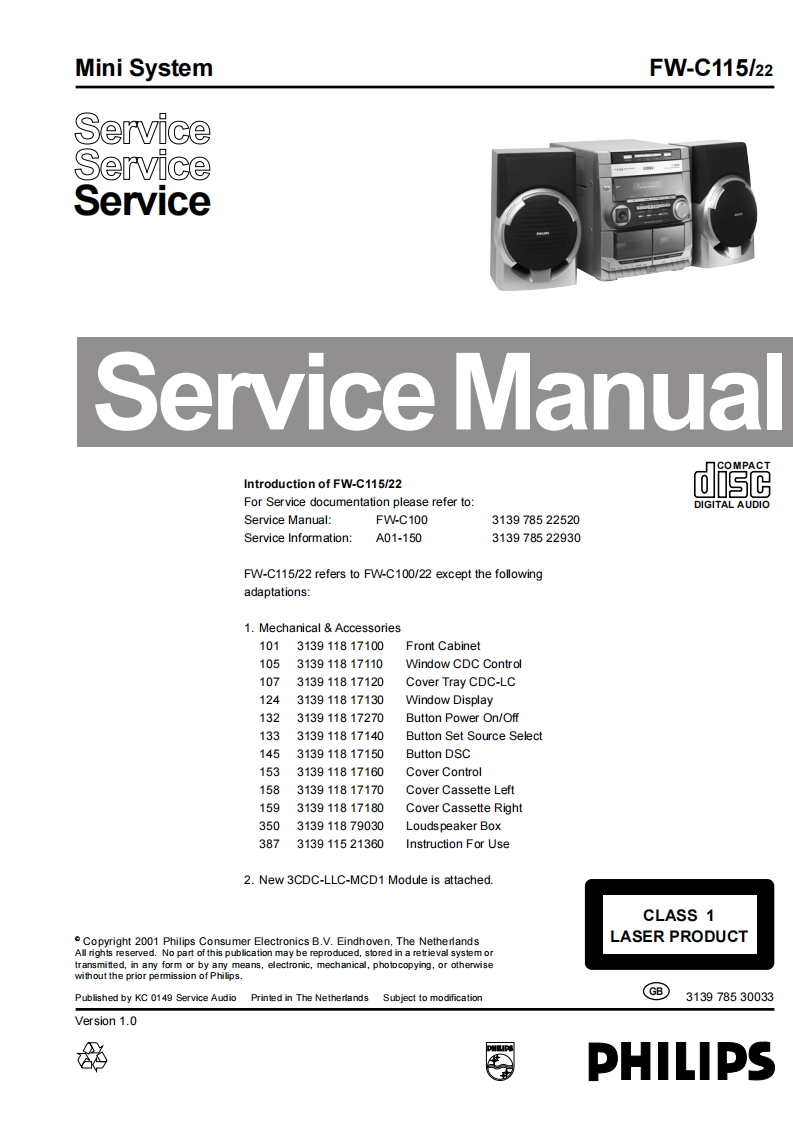

Mini SystemFW-C115/22ServiceServiceServiceService ManuaIntroduction of FW-C115/22di前For Service documentation please refer to:DIGITAL AUDIOService Manual:FW-C100313978522520Service Information:A01-150313978522930FW-C115/22 refers to FW-C100/22 except the followingadaptations:1.Mechanical Accessories101 3139 118 17100 Front Cabinet105313911817110Window CDC Control107313911817120Cover Tray CDC-LC124313911817130Window Display132313911817270Button Power On/Off133313911817140Button Set Source Select145313911817150Button DSC153313911817160Cover Control158313911817170Cover Cassette Left159313911817180Cover Cassette Right350313911879030Loudspeaker Box387313911521360Instruction For Use2.New 3CDC-LLC-MCD1 Module is attached.CLASS 1Copyright 2001 Philips Consumer Electronics B.V.Eindhoven,The NetherlandsLASER PRODUCTAll rights reserved.No part of this publication may be reproduced,stored in a retrieval system orlectronic.mechanical.photcopying.or otheisePublished by KC 0149 Service AudioPrinted in The Netherlands Subject to modificationGB313978530033Version 1.0PHILIPS
