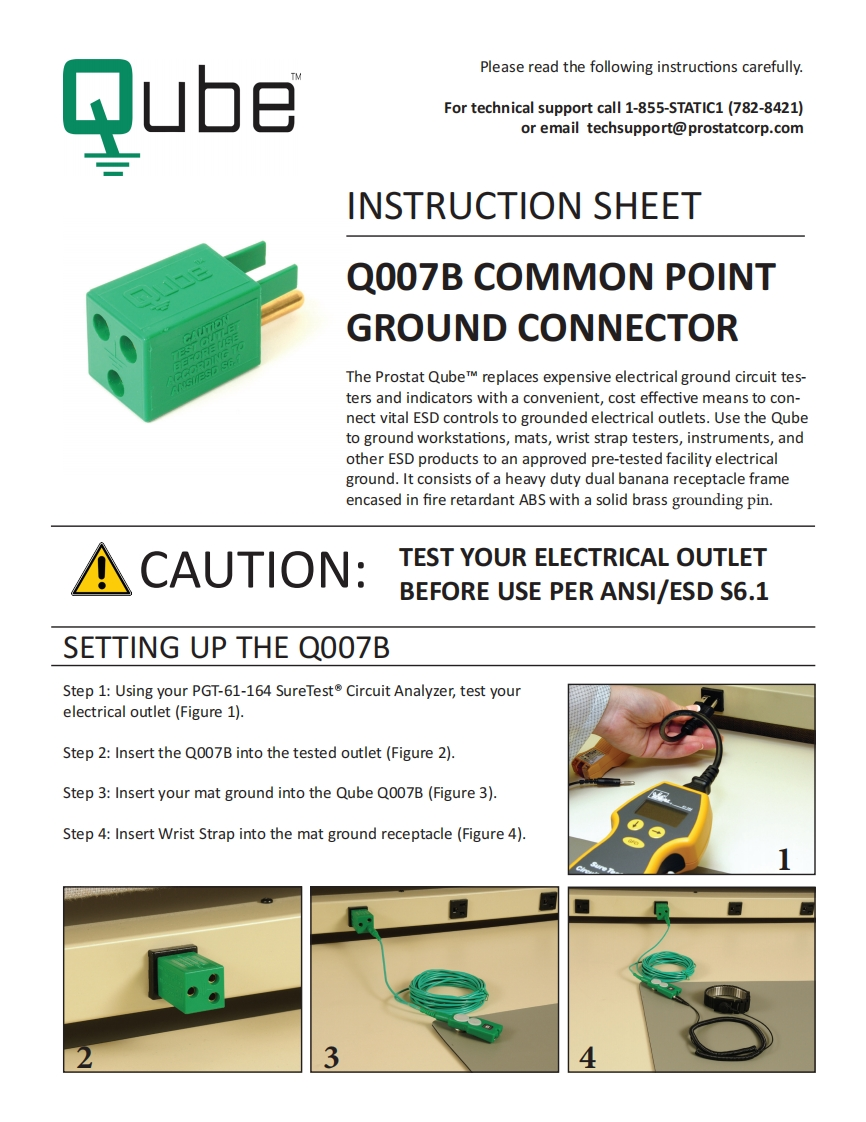

Please read the following instructions carefully.QubeFor technical support call 1-855-STATIC1(782-8421)or email techsupport@prostatcorp.comINSTRUCTION SHEETQ007B COMMON POINT71oGROUND CONNECTORThe Prostat QubeTM replaces expensive electrical ground circuit tes-ters and indicators with a convenient,cost effective means to con-nect vital ESD controls to grounded electrical outlets.Use the Qubeto ground workstations,mats,wrist strap testers,instruments,andother ESD products to an approved pre-tested facility electricalground.It consists of a heavy duty dual banana receptacle frameencased in fire retardant ABS with a solid brass grounding pin.CAUTION:TEST YOUR ELECTRICAL OUTLETBEFORE USE PER ANSI/ESD S6.1SETTING UP THE Q007BStep 1:Using your PGT-61-164 SureTestR Circuit Analyzer,test yourelectrical outlet (Figure 1).Step 2:Insert the Q007B into the tested outlet(Figure 2).Step 3:Insert your mat ground into the Qube Q007B(Figure 3).Step 4:Insert Wrist Strap into the mat ground receptacle(Figure 4).234
