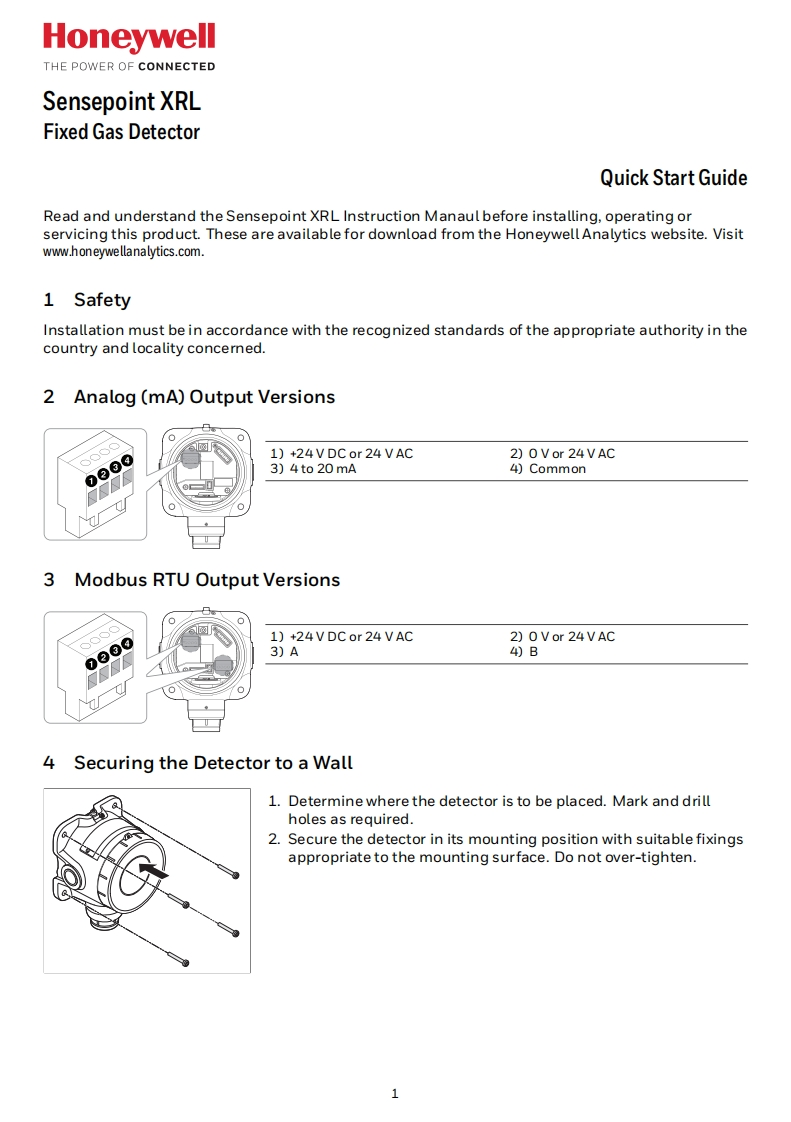

HoneywellTHE POWER OF CONNECTEDSensepoint XRLFixed Gas DetectorQuick Start GuideRead and understand the Sensepoint XRL Instruction Manaul before installing,operating orservicing this product.These are available for download from the Honeywell Analytics website.Visitwww.honeywellanalytics.com.1 SafetyInstallation must be in accordance with the recognized standards of the appropriate authority in thecountry and locality concerned.2Analog (mA)Output Versions1)+24V DCor 24VAC2)0Vor 24VAC0日⊙g3)4to 20 mA4)Common3 Modbus RTU Output Versions1)+24V DCor 24 VAC2)0Vor 24VAC00003)A4)B4Securing the Detector to a Wall1.Determine where the detector is to be placed.Mark and drillholes as required.2.Secure the detector in its mounting position with suitable fixingsappropriate to the mounting surface.Do not over-tighten.
