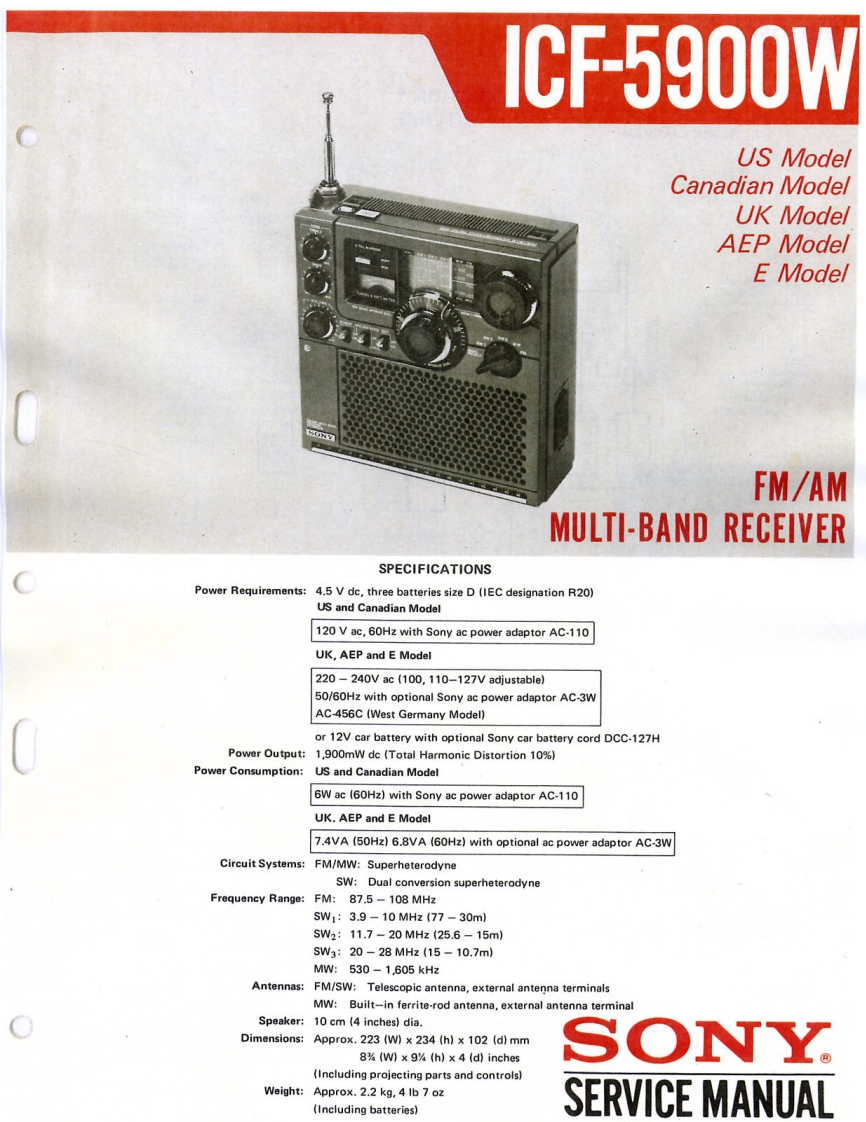

ICF-5900WUS ModelCanadian ModelUK ModelAEP ModelE ModelFM/AMMULTI-BAND RECEIVERSPECIFICATIONSPower Requirements:4.5 V dc,three batteries size D(IEC designation R20)US and Canadian Model120 V ac,60Hz with Sony ac power adaptor AC-110UK,AEP and E Model220-240V ac(100,110-127V adjustable)50/60Hz with optional Sony ac power adaptor AC-3WAC-456C (West Germany Model)or 12V car battery with optional Sony car battery cord DCC-127HPower Output:1,900mW de(Total Harmonic Distortion 10%)Power Consumption:US and Canadian Model6W ac (60Hz)with Sony ac power adaptor AC-110UK.AEP and E Model7.4VA(50Hz)6.8VA(60Hz)with optional ac power adaptor AC-3WCircuit Systems:FM/MW:SuperheterodyneSW:Dual conversion superheterodyneFrequency Range:FM:87.5-108 MHzSW1:3.9-10MHz(77-30mlSW2:11.7-20MHz(25.6-15m)SW3:20-28MHz15-10.7mlMW:530-1.605kHzAntennas:FM/SW:Telescopic antenna,external antenna terminalsMW:Built-in ferrite-rod antenna,external antenna terminal0Speaker:10 cm (4 inches)dia.Dimensions:Approx.223(W×234(h)×102(d)mm8%(W)×9%(h)×4(d)inchesSONY(Including projecting parts and controls)Weight:Approx.2.2 kg,4 Ib 7 oz(Including batteries)SERVICE MANUAL
