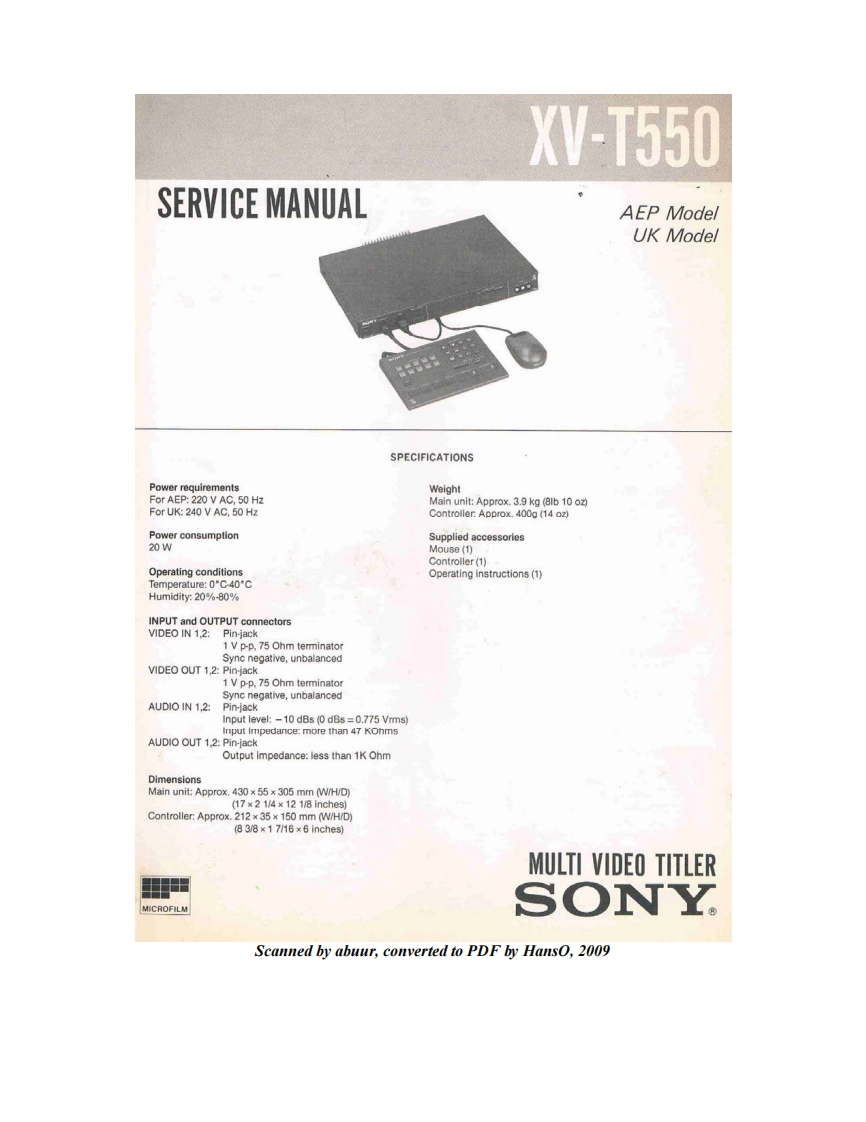

XV-T550SERVICE MANUALAEP ModelUK ModelSPECIFICATIONSPower requirementsWeightFor AEP:220 V AC,50 HzMain unit:Approx.3.9 kg (8Ib 10 oz)For UK:240 V AC,50 HzController:Approx.400g(14 oz)Power consumptionSupplied accessories20WMouse (1)Controller(1)Operating conditionsOperating instructions(1)Temperature:0'C-40*CHumidity:20%-80%INPUT and OUTPUT connectorsVIDEO IN 1,2:Pin-jack1 V p-p,75 Ohm terminatorSync negative,unbalancedVIDEO OUT 1.2:Pin-iack1 V p-p,75 Ohm terminatorSync negative,unbalancedAUDIO IN 1,2:Pin-iackInput level:-10 dBs (0 dBs=0.775 Vrms)Input impedance:more than 47 KOhmsAUDIO OUT 1.2:Pin-jackOutput impedance:less than 1K OhmDimensionsMain unit:Approx.430 x 55 x 305 mm (W/H/D)(17×21/4×1218 inchesController:Approx.212x35x 150 mm (W/H/D)(838×17/16×6 inches)MULTI VIDEO TITLERMICROFILMSONYScanned by abuur,converted to PDF by HansO,2009
