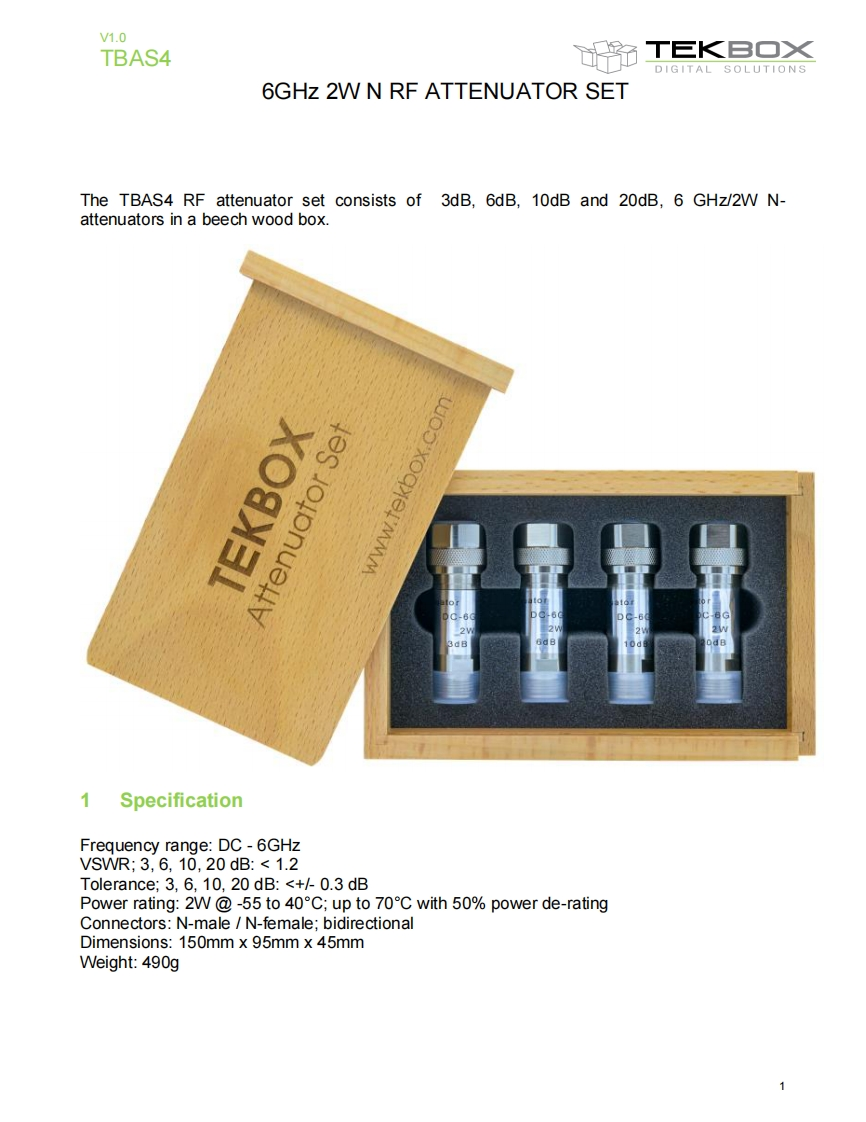

V1.0TBAS4和T巨KB▣XDIGITAL SOLUTIONS6GHz 2W N RF ATTENUATOR SETThe TBAS4 RF attenuator set consists of 3dB,6dB,10dB and 20dB,6 GHz/2W N-attenuators in a beech wood box.TEKBOXAt廿enuator Setwww.tekbox.com1SpecificationFrequency range:DC-6GHzVSWR;3,6,10,20dB:<1.2Tolerance;3,6,10,20 dB:<+/-0.3 dBPower rating:2W@-55 to 40C;up to 70C with 50%power de-ratingConnectors:N-male N-female;bidirectionalDimensions:150mm x 95mm x 45mmWeight:490g1
