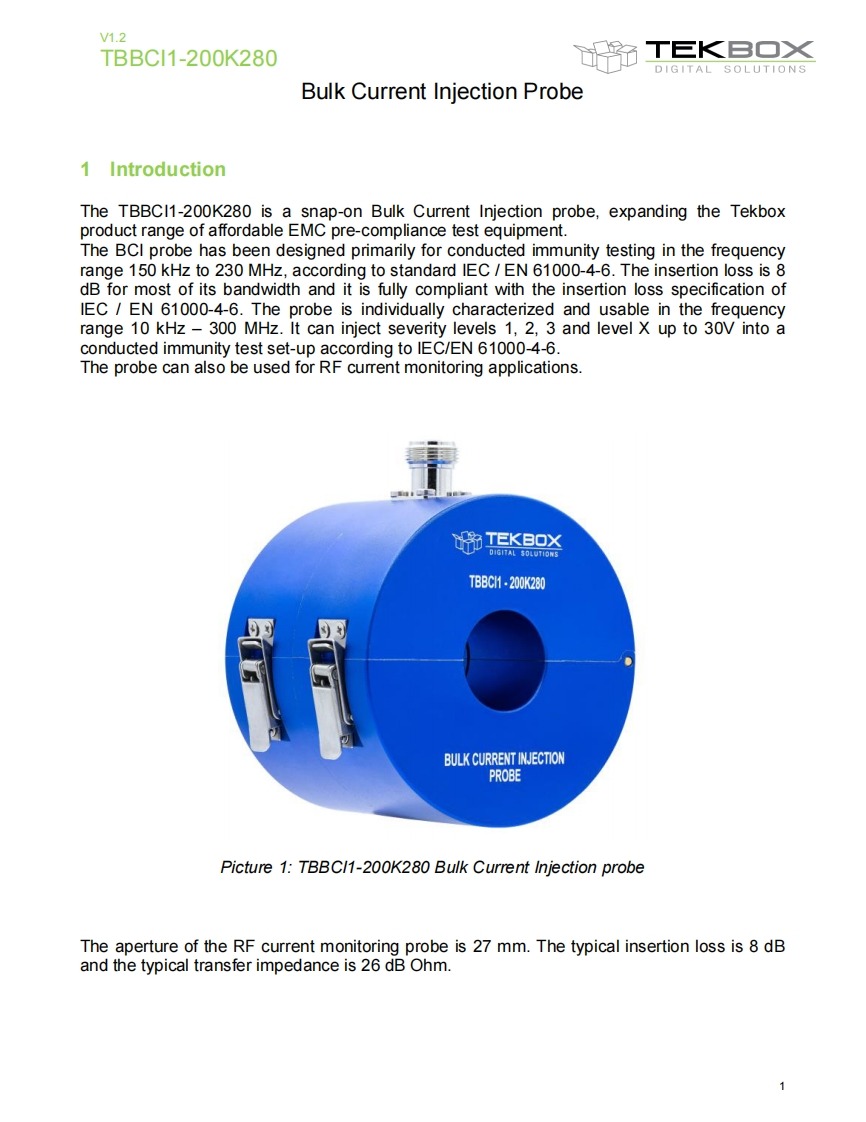

V1.2TBBCI1-200K280帝T巨K旦O×DIGITAL SOLUTIONSBulk Current Injection Probe1 IntroductionThe TBBCI1-200K280 is a snap-on Bulk Current Injection probe,expanding the Tekboxproduct range of affordable EMC pre-compliance test equipment.The BCI probe has been designed primarily for conducted immunity testing in the frequencyrange 150 kHz to 230 MHz,according to standard IEC /EN 61000-4-6.The insertion loss is 8dB for most of its bandwidth and it is fully compliant with the insertion loss specification ofIEC EN 61000-4-6.The probe is individually characterized and usable in the frequencyrange 10 kHz -300 MHz.It can inject severity levels 1,2,3 and level X up to 30V into aconducted immunity test set-up according to IEC/EN 61000-4-6.The probe can also be used for RF current monitoring applications.的TEKBOXD1G7AL专0LUTI0w5TBBC1-200K280BULK CURRENT INJECTIONPROBEPicture 1:TBBCI1-200K280 Bulk Current Injection probeThe aperture of the RF current monitoring probe is 27 mm.The typical insertion loss is 8 dBand the typical transfer impedance is 26 dB Ohm.1
