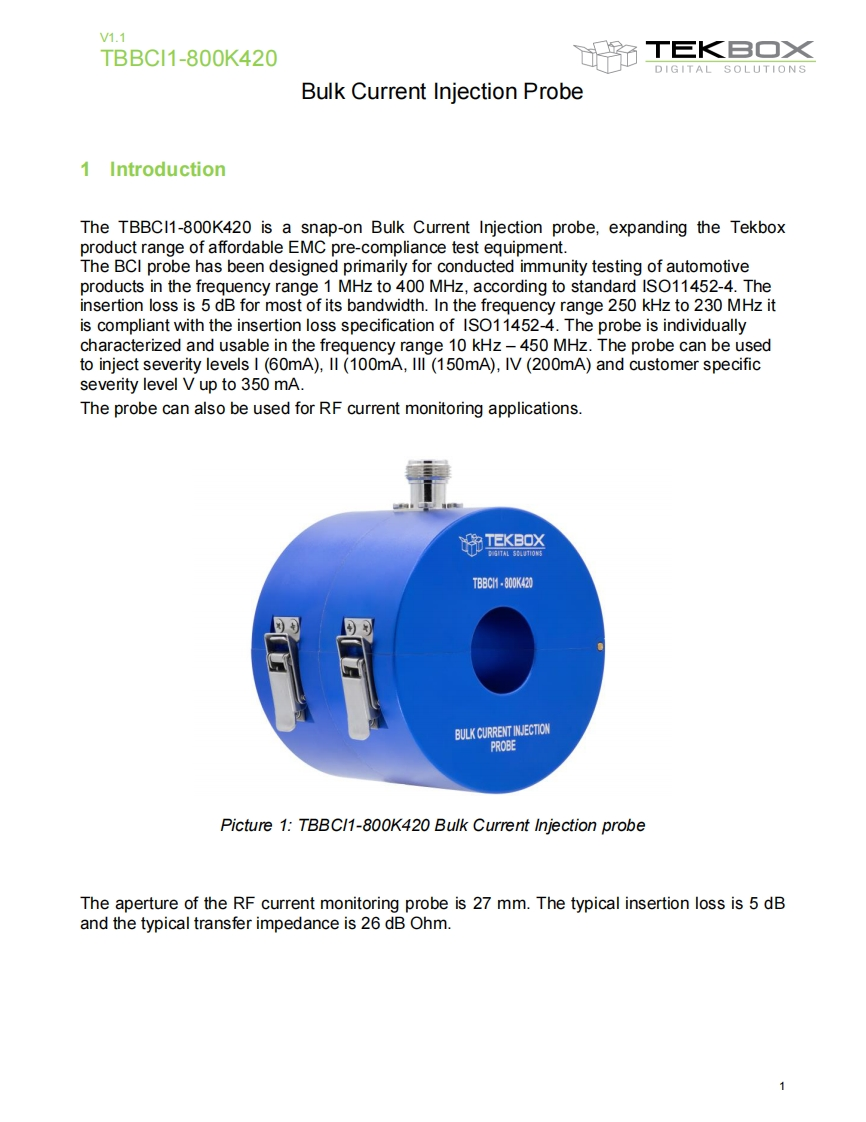

V1.1TBBC11-800K420帝T巨K旦O×DIGITAL SOLUTIONSBulk Current Injection Probe1 IntroductionThe TBBCI1-800K420 is a snap-on Bulk Current Injection probe,expanding the Tekboxproduct range of affordable EMC pre-compliance test equipment.The BCI probe has been designed primarily for conducted immunity testing of automotiveproducts in the frequency range 1 MHz to 400 MHz,according to standard ISO11452-4.Theinsertion loss is 5 dB for most of its bandwidth.In the frequency range 250 kHz to 230 MHz itis compliant with the insertion loss specification of ISO11452-4.The probe is individuallycharacterized and usable in the frequency range 10 kHz-450 MHz.The probe can be usedto inject severity levels I (60mA),Il (100mA,Ill (150mA),IV(200mA)and customer specificseverity level V up to 350 mA.The probe can also be used for RF current monitoring applications.兴TBBC1-800K420BULK CURRENT INJECTIONPROBEPicture 1:TBBCI1-800K420 Bulk Current Injection probeThe aperture of the RF current monitoring probe is 27 mm.The typical insertion loss is 5 dBand the typical transfer impedance is 26 dB Ohm.1
