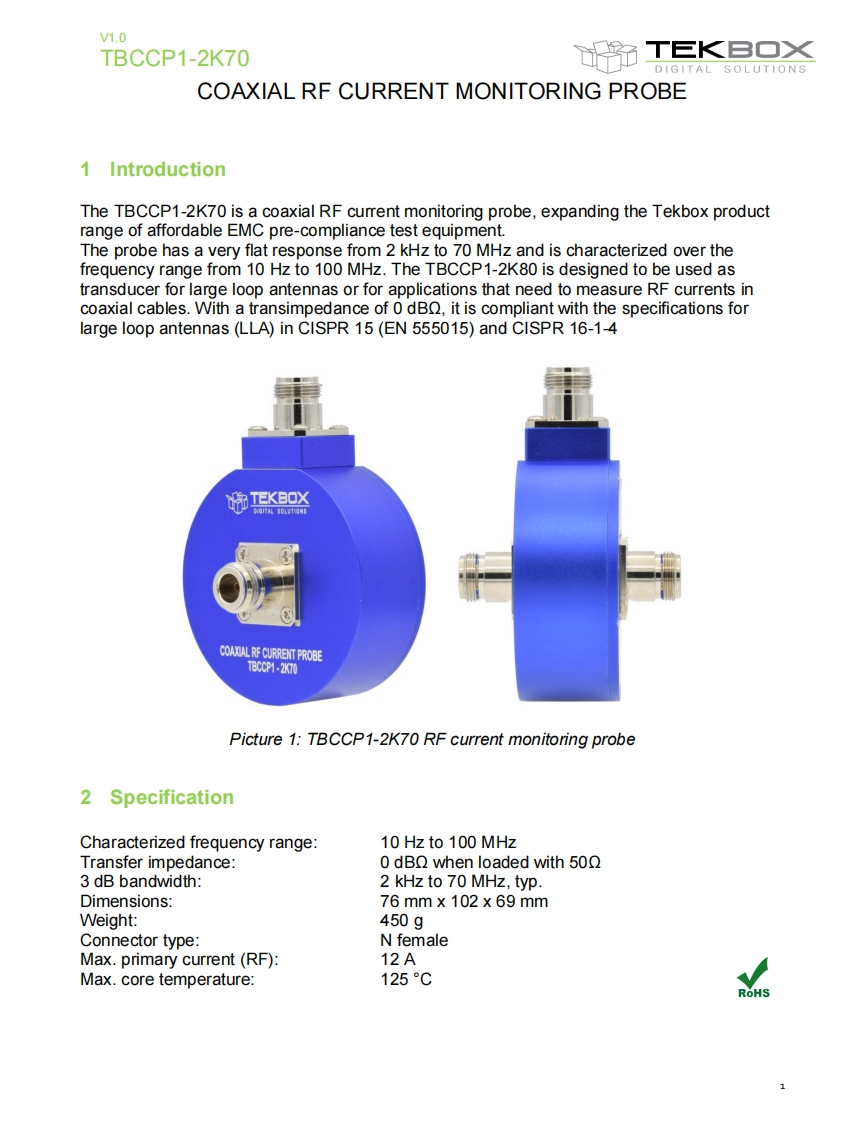

V1.0TBCCP1-2K70T巨K旦O×DIGITAL SOLUTIONSCOAXIAL RF CURRENT MONITORING PROBE1 IntroductionThe TBCCP1-2K70 is a coaxial RF current monitoring probe,expanding the Tekbox productrange of affordable EMC pre-compliance test equipment.The probe has a very flat response from 2 kHz to 70 MHz and is characterized over thefrequency range from 10 Hz to 100 MHz.The TBCCP1-2K80 is designed to be used astransducer for large loop antennas or for applications that need to measure RF currents incoaxial cables.With a transimpedance of 0 dBQ,it is compliant with the specifications forlarge loop antennas(LLA)in CISPR 15(EN 555015)and CISPR 16-1-4的凶L购5COAAL RF CURRENT PROBETB0cP1·20mPicture 1:TBCCP1-2K70 RF current monitoring probe2 SpecificationCharacterized frequency range:10 Hz to 100 MHzTransfer impedance:0 dB when loaded with 5003 dB bandwidth:2 kHz to 70 MHz,typ.Dimensions:76mmx102×69mmWeight:450gConnector type:N femaleMax.primary current (RF):12AMax.core temperature:125C☑ROHS1
