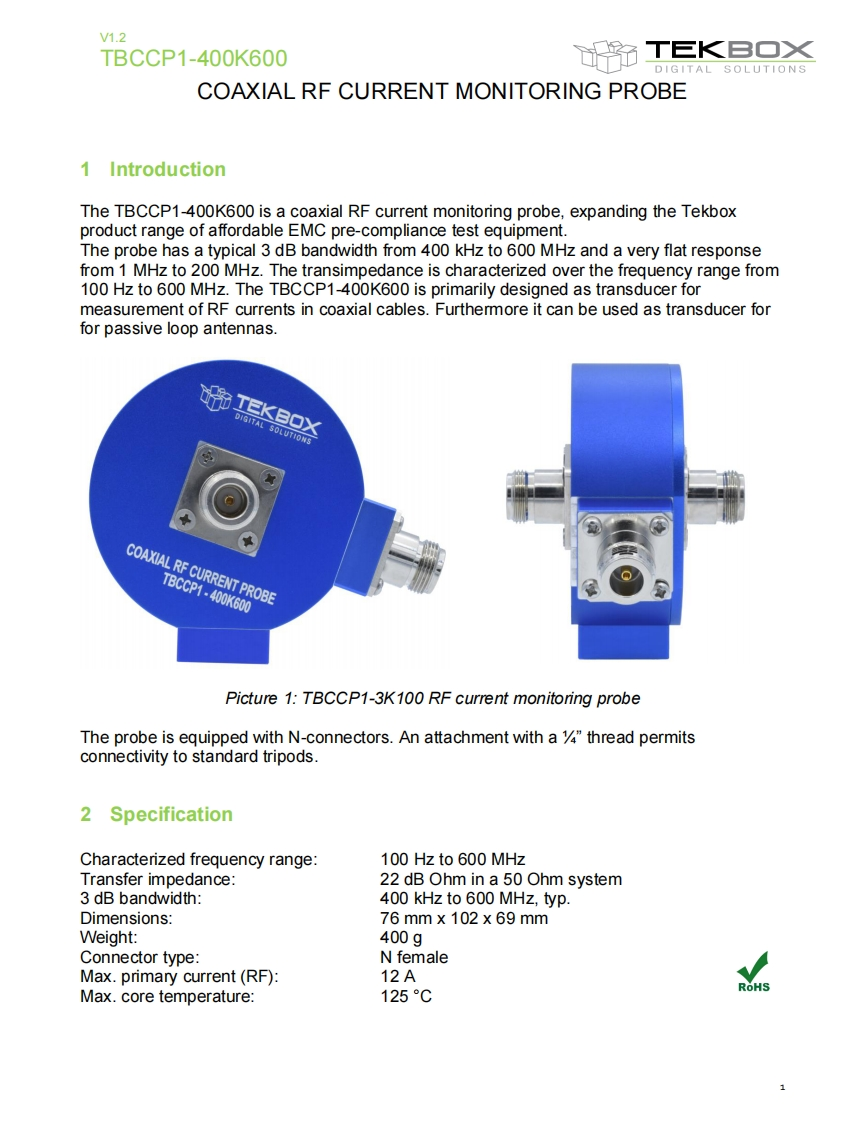

V1.2TBCCP1-400K600畅T巨K旦口×DIGITAL SOLUTIONSCOAXIAL RF CURRENT MONITORING PROBE1 IntroductionThe TBCCP1-400K600 is a coaxial RF current monitoring probe,expanding the Tekboxproduct range of affordable EMC pre-compliance test equipment.The probe has a typical 3 dB bandwidth from 400 kHz to 600 MHz and a very flat responsefrom 1 MHz to 200 MHz.The transimpedance is characterized over the frequency range from100 Hz to 600 MHz.The TBCCP1-400K600 is primarily designed as transducer formeasurement of RF currents in coaxial cables.Furthermore it can be used as transducer forfor passive loop antennas.形TKao兴DIGITAL SOLUTIONSCOAXIAL RF CURRENT PROBETBCCP1-400K600Picture 1:TBCCP1-3K100 RF current monitoring probeThe probe is equipped with N-connectors.An attachment with a %thread permitsconnectivity to standard tripods.2 SpecificationCharacterized frequency range:100 Hz to 600 MHzTransfer impedance:22 dB Ohm in a 50 Ohm system3 dB bandwidth:400 kHz to 600 MHz,typ.Dimensions:76 mm x 102 x 69 mmWeight:400gConnector type:N femaleMax.primary current(RF):12ARoHSMax.core temperature:125°C1
