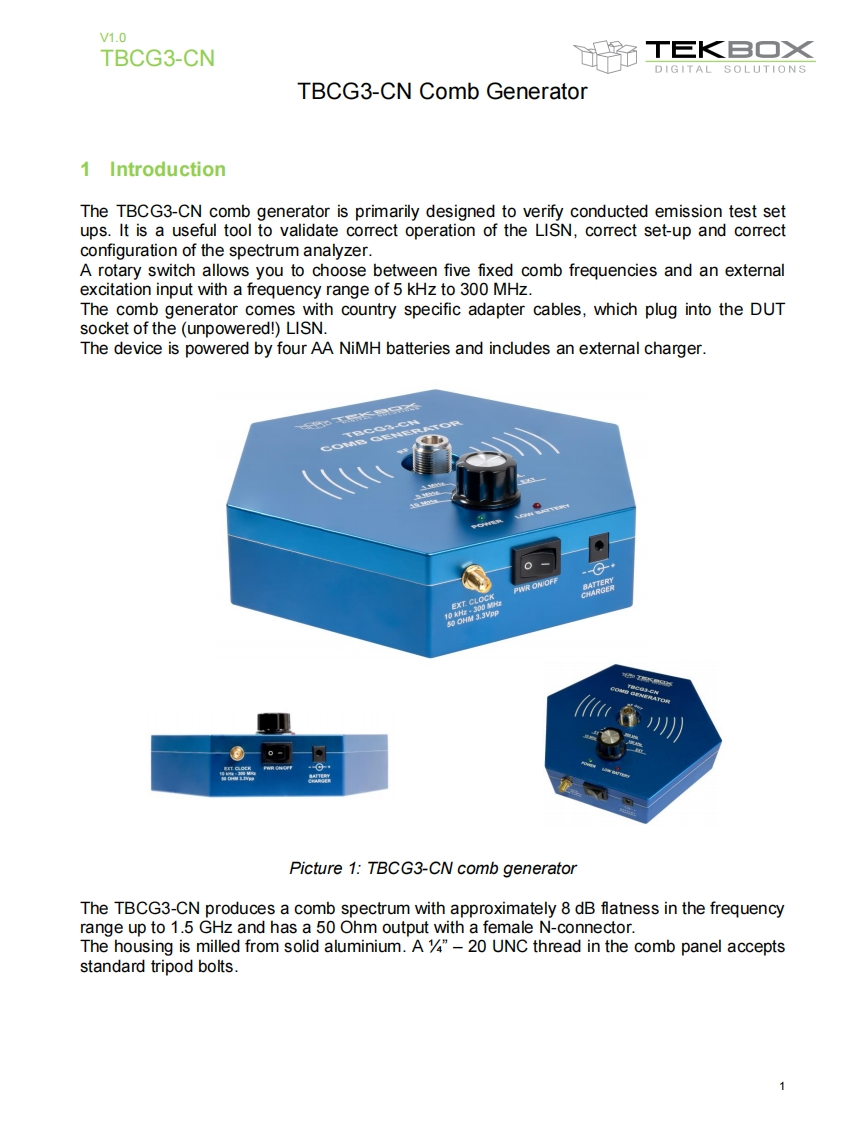

V1.0TBCG3-CN帝T巨KBO×DIGITAL SOLUTIONSTBCG3-CN Comb Generator1 IntroductionThe TBCG3-CN comb generator is primarily designed to verify conducted emission test setups.It is a useful tool to validate correct operation of the LISN,correct set-up and correctconfiguration of the spectrum analyzer.A rotary switch allows you to choose between five fixed comb frequencies and an externalexcitation input with a frequency range of 5 kHz to 300 MHz.The comb generator comes with country specific adapter cables,which plug into the DUTsocket of the (unpowered!)LISN.The device is powered by four AA NiMH batteries and includes an external charger.⊙PWR ONIOFIPicture 1:TBCG3-CN comb generatorThe TBCG3-CN produces a comb spectrum with approximately 8 dB flatness in the frequencyrange up to 1.5 GHz and has a 50 Ohm output with a female N-connector.The housing is milled from solid aluminium.A 14"-20 UNC thread in the comb panel acceptsstandard tripod bolts.1
