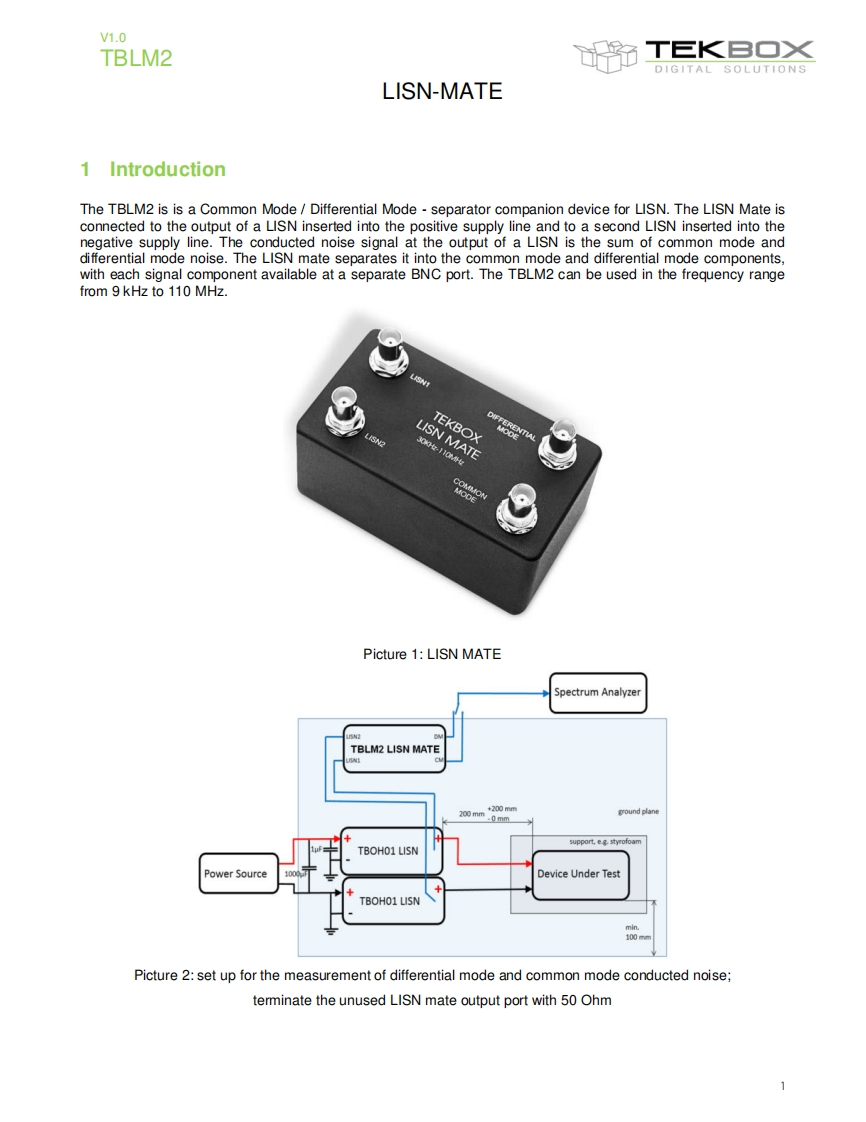

V1.0TBLM2T巨K旦O×DIGITAL SOLUTIONSLISN-MATE1 IntroductionThe TBLM2 is is a Common Mode Differential Mode -separator companion device for LISN.The LISN Mate isconnected to the output of a LISN inserted into the positive supply line and to a second LISN inserted into thenegative supply line.The conducted noise signal at the output of a LISN is the sum of common mode anddifferential mode noise.The LISN mate separates it into the common mode and differential mode components,with each signal component available at a separate BNC port.The TBLM2 can be used in the frequency rangefrom 9 kHz to 110 MHz.TEKBOXLISN MATE303化11C化DDTAPicture 1:LISN MATESpectrum AnalyzerTBLM2 LISN MATE2测m0ground planesupport.e.g.styeofoamTBOHO1 LISNPower SourceDevice Under TestTBOHO1 LISNPicture 2:set up for the measurement of differential mode and common mode conducted noise;terminate the unused LISN mate output port with 50 Ohm1
